Backhaul Network Cabinet, 12RU Environmentally Controlled, Wall/Unistrut Mount

$4,296.61
SKU: NPNB-030-180-40
Various lead times may apply to this product. Please contact us for more details.
Made in USA

Two (2) 100CFM fans are included. To order this unit with any optional equipment, please give us a call or email us.

Description

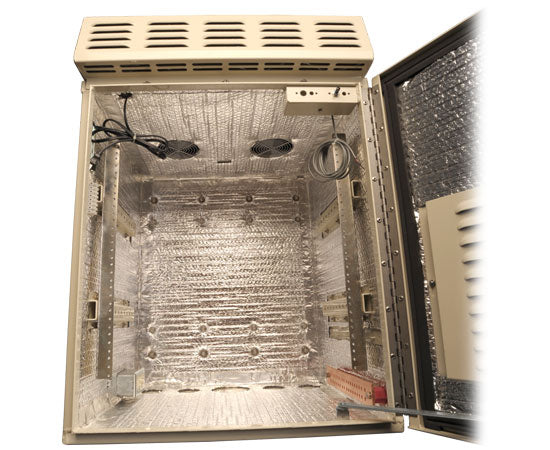

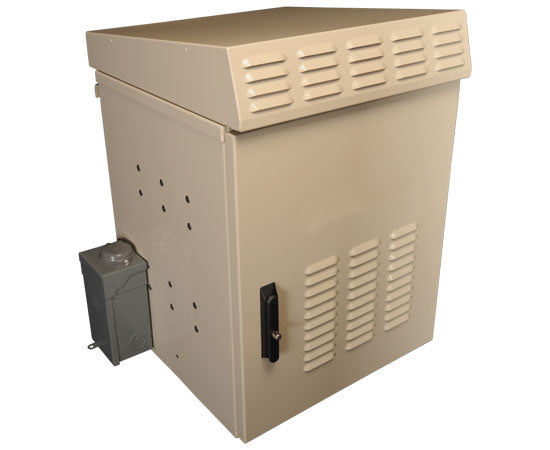

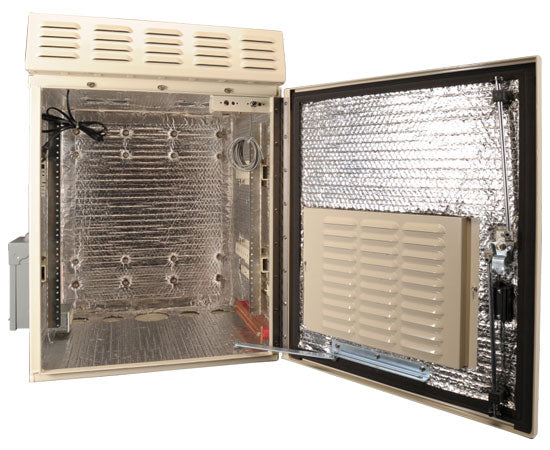

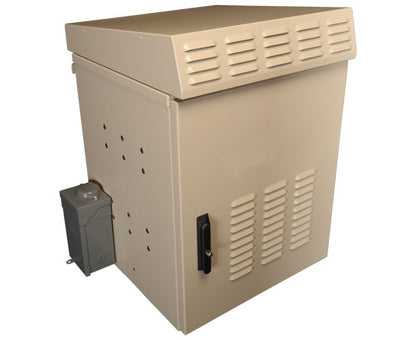

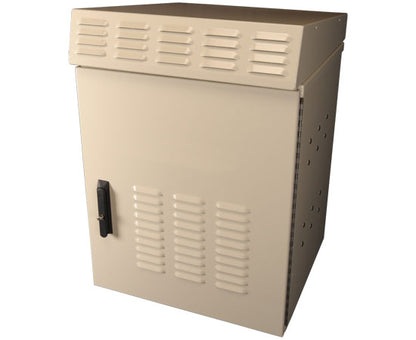

12RU Environmentally Controlled Backhaul Network Cabinet, Wall Mount, Includes Two 100CFM Fans

This 12RU is a perfect solution for any small backhaul application. The enclosure provides a full 12RU of mounting space in a compact, weatherproof enclosure. The unit is wall or unistrut mountable and features a pad lockable 3-point locking system. Dual 100 CFM fans are thermostatically controlled and flush hot air out through a 100% differentiated chamber above the cabinet. 120V Service entrance and duplex provide power to your rack needs and fans.

Features

Features

  • Security and protection of 12RU of equipment in a compact enclosure.
  • Rainproof, weatherproof housing.
  • Wall/Unistrut or Pole mount options.
  • 3 Point locking system.
  • 120V Powering system.
  • Thermostatically controlled dual 100 CFM fans.
  • Continuous stainless steel piano hinge.
  • Bus bar and door alarm switch do not interfere with rack access.

Specifications

Construction

Main Body

1/8” Aluminum

Hardware

Stainless Steel

Finish

Polyester Powder Coat

Rack

19"-Width, Swing-out, 12RU Height, 10-32 Threads EIA/TIA

Door

3 Point Latch, Piano Hinge, Wind Stop

Heating and Cooling

Dual thermostatically controlled, 48V DC, 100CFM fans with patented lifesaver roof

Mounting

Wall/Unistrut

Powering

125V Duplex Receptacle with Service Entrance

Cable Entrance

4 x (ø1.5 x 2.25") Dual Stage Knockouts

1 x (ø4.00") Single Stage Knockout

Dimensions

31"H x 26"W x 23.5"D

Color

Beige

Weight

87 lbs.
