Backhaul Network Cabinet, 21RU Environmentally Controlled, Wall Unistrut Mount
Backhaul Network Cabinet, 21RU Environmentally Controlled, Wall Unistrut Mount
BY Primus Cable
SKU: SKU: NPNB-030-202-10
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full details
Two (2) 100CFM fans are included. This unit can hold an A/C or heat exchanger unit (sold separately).

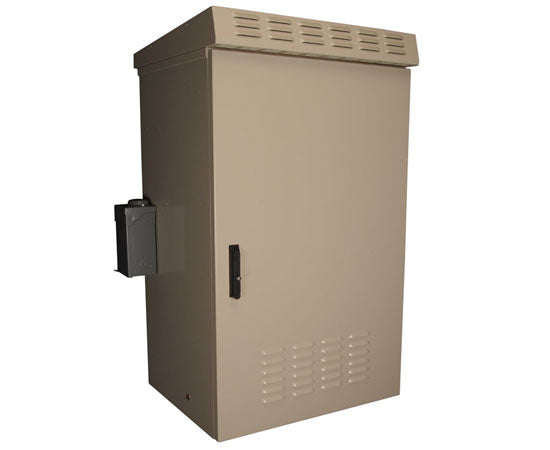

21RU Environmentally Controlled Backhaul Network Cabinet, Wall Mount, Includes Two 100CFM Fans

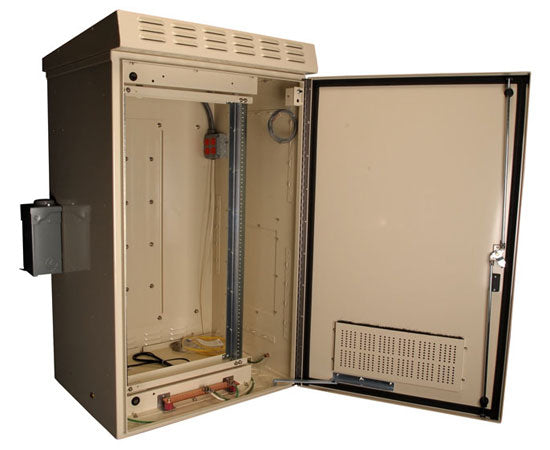

This 21RU Backhaul Network cabinet was designed to be extremely craft friendly. It has a swing-out rack with tapped holes that provides rear access to the equipment housed within. It also includes (2) 100CFM Fans in the solar shielded roof to allow for positive airflow, and decreased solar loading. Included is a single phase 150K amp surge protector and the 26 position isolated copper bus-bar allows for positive grounding of the cabinet and equipment. There is also a removable side panel to allow for the installation of a 2,500 Watt heat exchanger unit for installations that would require it. The upgrade kit will include block-off panels for all louvers.
We also offer a pole mount 21U backhaul network cabinet.
Features
- Internal Mounting: 21 RU, 19" Swing-out Rack, 10-32 Threads EIA TIA Spacing.
- Cable Entrance: (4) Dual Stage Knockouts 1-3", Located Front Right of the Cabinet.
- Cooling: Fully louvered efficiency (all louvers backed with bug screen) Dual 100CFM Fans (48VDC) For Forced Convection. Optional: 2,500 Watt Heat Exchanger.
- Hardware: Stainless Steel.
- Door: Continuous Piano Hinge, 3-Point Latch, and Wind Stop.
- Material: Aluminum.
- Coating: Electrostatic polyester powder coated Beige.
- Powering: 120/240VAC Service Entrance, 20 Amp Circuit Breaker, Surge Protector, (2) Duplex Receptacles, 125V, 20A Ground Bar.
Specifications
|
Main Body |
1/8" Aluminum |
|
Hardware |
Stainless Steel |
|
Finish |
Polyester Powder Coat |
|
Rack |
19"-Width, Swing-out, 21RU Height, 10-32 Threads EIA/TIA Spacing |
|
Door |
3 Point Latch, Piano Hinge, Wind Stop |
|
Cable Entrance |
(4) Dual Stage Knockouts 1-3", Located Front Right of the Cabinet |
|
Heating and Cooling |
Can Include A/C or Heat Exchanger (sold separately) |
|
Grounding |
All Components Are Grounded to the Main Bus Bar |
|
Mounting |
Wall Mount |
|
Powering |
120/240VAC Service Entrance, 20 Amp Circuit Breaker, Surge Protector, (2) Duplex Receptacle, 20A Ground Bar |
|
Dimensions |
50"H x 20"W x 24"D |
|
Color |
Beige |
|
Weight |
210 lbs. |
