Basic Rack Mount PDU - 15A, 120V, 1.8kW w/NEMA 5-15R Outlets
Basic Rack Mount PDUs distribute reliable power to IT equipment in a wide variety of applications where intelligence and/or remote monitoring are not required. This rack mount PDU features (12) NEMA 5-15R outlets protected by a single 15A circuit breaker, a reset button in the event of an overload, and a durable chassis. A 5 and 10 ft. power cord with a NEMA 5-15P plug connects to an external power supply, while the versatile mounting design allows outlets to face any of four directions.
Features
Features
- 12 NEMA 5-15R outlets (2 front/10 rear)
- Single 15A circuit breaker w/reset button
- 700 joules surge suppression
- Covered On/Off switch
- 3 status indicator lights
Specifications
Specifications
| Input Voltage | 120V |
| Input Frequency | 60Hz |
| Maximum Input Current | 15A |

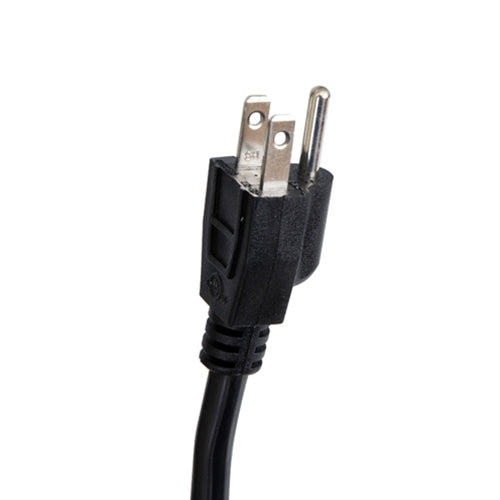

| Plug Type | NEMA 5-15P |
| Plug Style | Straight |
| Cord Length | 5 ft (1.5 m) |
| Cord Specs | 14 AWG 3-Wire Grounded SJT |
| Output Voltage | 120V |
| Output Frequency | 60Hz |
| Output Wattage | 1800W |
| Circuit Breaker / Overload Protection | 15A |
| Maximum Continuous Operating Voltage | 130V |
| Outlet Quantity | 2 Front / 10 Rear |
| Outlet Type | NEMA 5-15R |
| Surge Suppression | 700 Joules |
| Protection Mode | N-H, N-G, H-G |
| Response Time | <1 Nanosecond |
| Maximum Surge Current | 10KA |
| Maximum Surge Voltage | 470V |
| Clamping Voltage | 775V |
| EMI/RFI Filtration | 40~60dB@10MHz |
| PDU Style | Rack Mount 1U) |
| Pre-Installed Rack Mount Brackets | Removable |
| Housing Material | PVC and Metal Enclosure |
| Product Dimensions (HxWxD) | 1.75” x 17.5” (without ears) |
| Product Weight |
3.5 lbs. |
| Inner Carton Quantity | 1 Unit |
| Inner Carton Dimensions (LxWxH) | 3.6” x 21.25”x 2.5” |
| Inner Carton Weight | 3.71 lbs. |
| Master Carton Quantities | 10 pcs. |
| Master Carton Dimensions (LxWxH) | 13.78” x 21.65”x 11.61” |
| Master Carton Weight | N/W: 35 lbs. G/W: 37.1 lbs. |
| UL Certified Power Cord | Yes |
| RoHS | Yes |
| Operating Temperature Range | -40° to 70° |
| Operating Humidity | ≤95% |
Additional Information
Additional Information

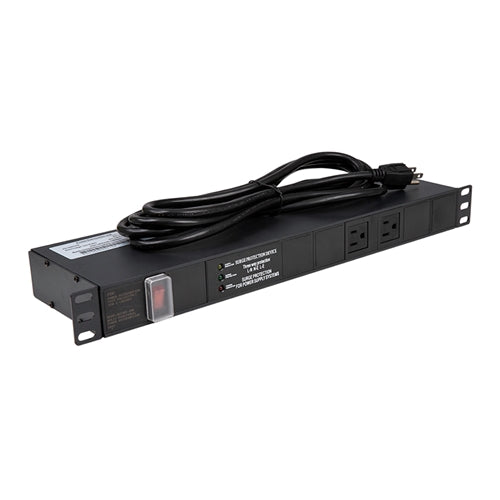

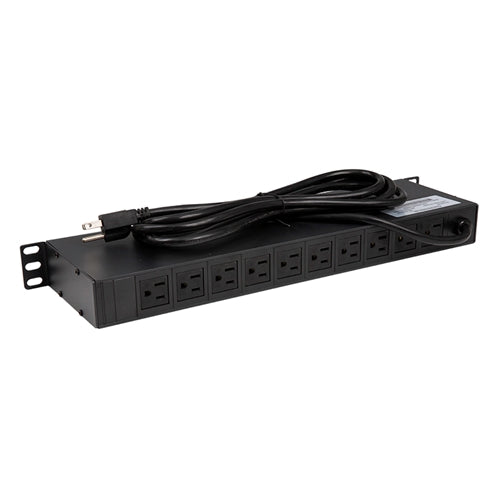

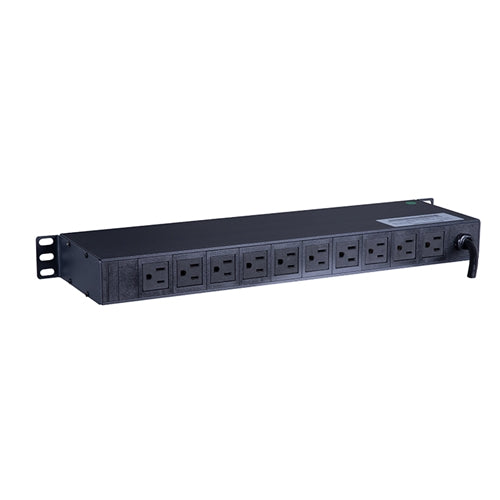

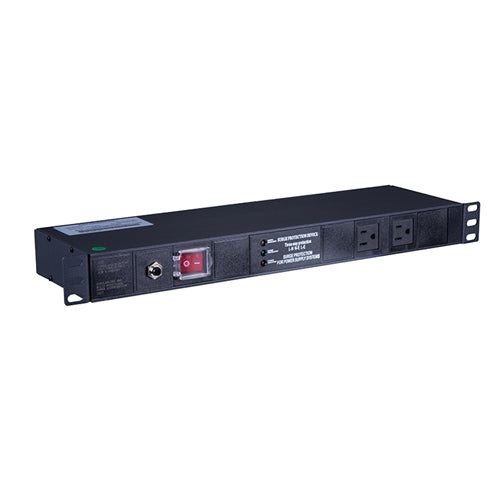

We offer this Rack Mount Power Distribution Unit (PDU) as a solution to many of the power management problems seen in today’s IT environments. Using only 1U, this PDU features a front panel with 2 AC outlets, a lighted On/Off switch, 3 status indicator lights and 10 additional AC outlets on the back panel and is a great addition to any of our rack or cabinets.
What’s In The Box
What’s In The Box
- Qty 1 - Basic PDU 120V 15A w/ (12) 5-15R Sockets (Horizontal)
