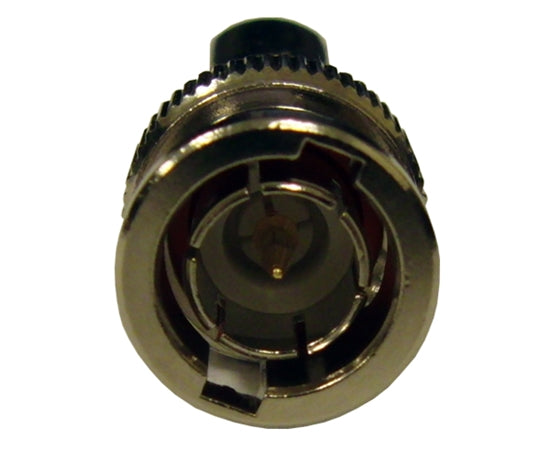

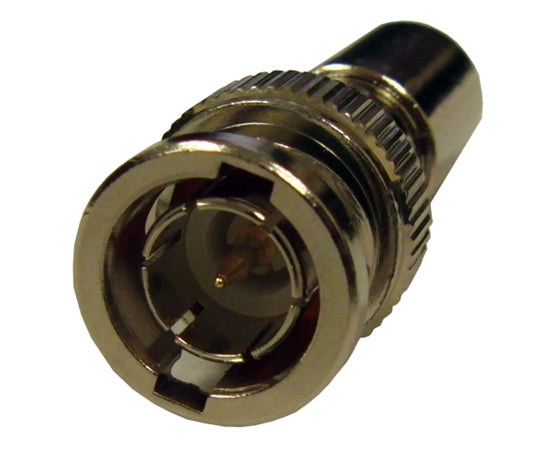

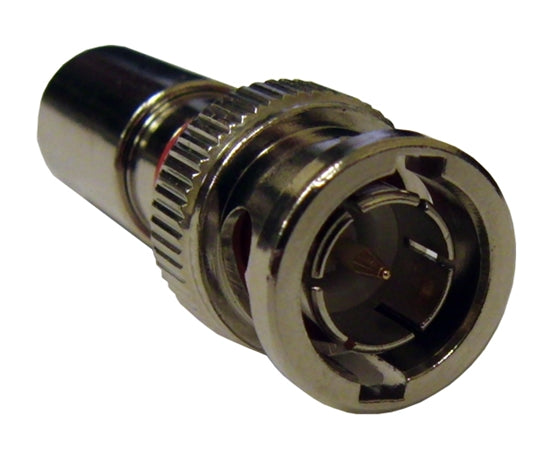

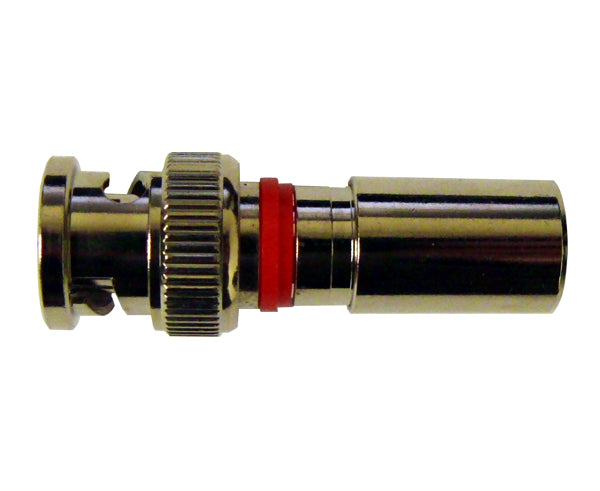

BNC RG59 Coax Cable Connector, Male Compression Style, CM/CMP

$2.74
SKU: CN3-2087-BNC
RoHS Compliant


Description

RG59 BNC Coax Cable Connector for CCTV Applications

The RG59 Male Compression BNC Connector is made for ease of installation and efficiency. It fits both CM rated and CMP plenum jacketed RG59 coaxial cable. This BNC connector is ideal for CCTV applications requiring a 75 ohm impedance. Use this BNC connector on 20 AWG diameter RG59 coaxial cables. These connectors for RG59 Coax Cables are used with CCTV, Audio/Video Applications and Surveillance Camera Systems.

Where to use Coaxial Cable

A broad range of applications exists for coaxial cabling. It is widely used with home entertainment equipment such as Cable Television (CATV) and TV Cable Wire, Digital HDTV, Audio / Video, and Digital Satellite. It is also used with security cameras and GPS Systems.

Applications

Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connect radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals.

Features

Features

  • 75 Ohm Impedance
  • Fits 20 AWG RG59 CM and CMP cable
  • Brass Body with Nickel Plating
  • Gold Plated Brass Contact
  • Delrin Insulator
  • Silicon Rubber Gasket Seal
  • Coupling Retention: 80lbs.
  • Cable Retention: 40lbs.

Specifications

Specifications


Technical Specifications

Connector Body
Brass
Plating
Nickel
Contact
Brass
Insulator
Delrin
Gasket Seal
Silicon Rubber
Coupling Types
Bayonet Nut Coupling (BNC)
Termination Type
Compression Seal

Additional Information

Additional Information

To learn more about our BNC Coaxial Cable Connectors here is a link to a page containing more information on our premium BNC Coaxial Cable Connectors.

What's In The Box

What's In The Box

  • Qty 1ea - RG59 Compression BNC Male Connectors
