Metal Bridge Clips, 66 Block, 100-Pack

by Dynacom
$7.00
SKU: PP7-2144-BC

Description

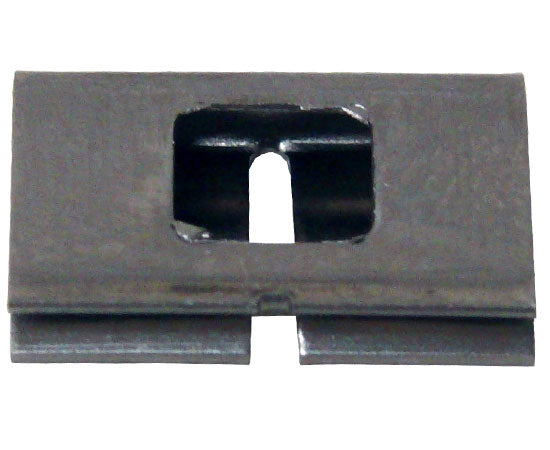

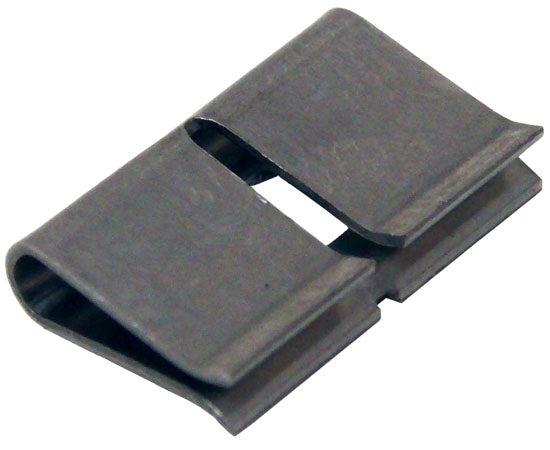

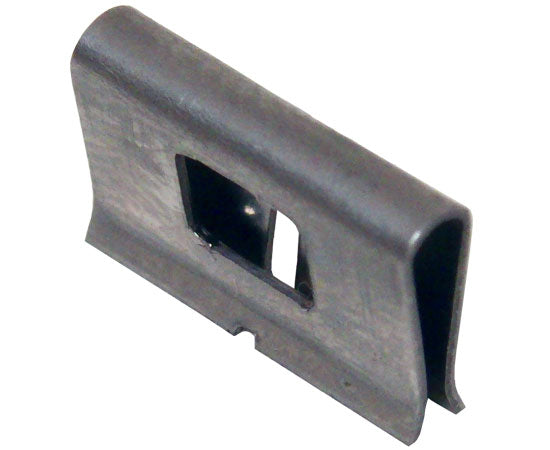

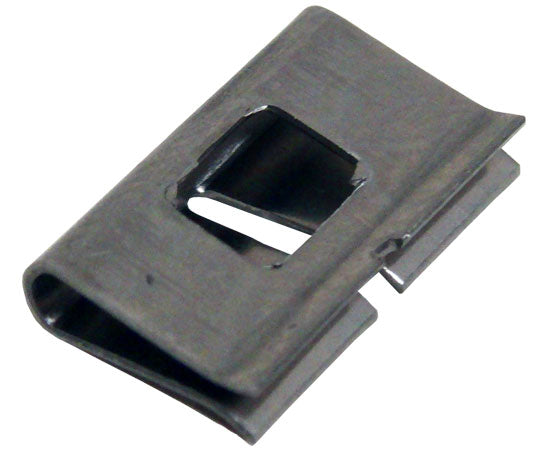

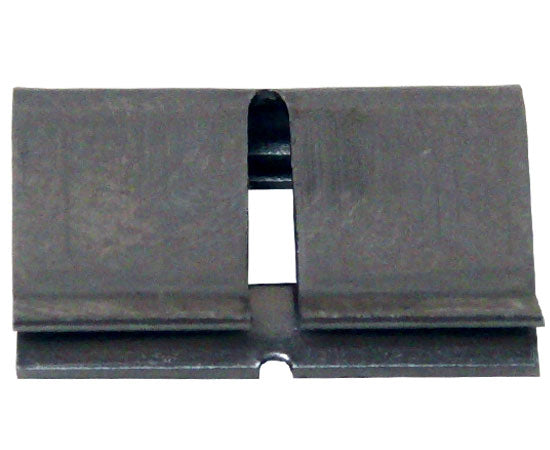

Metal Bridge Clips, 66 Block

Dynacom's metal bridge clips are meant to be used with a specific type of punch down block known as a 66 block. These stainless steel clips are vital for termination in phone configuration systems. A bridge clip is used to connect two center terminals of a split block, effectively completing the circuit and connecting the left and right side of the split block. The metal bridge clips can be easily removed in order to allow the service subscriber or the service provider to split a circuit or troubleshoot problem areas of the circuit. These clips are available in packs of 100.

Features

Features

  • Stainless Steel construction and design.
  • Voice Grade Technology for installing voice telecommunication systems. (Data applications are not recommended)
  • No Tools Needed just snap the clips on to the punchdown block to split the terminals.

Specifications

Specifications

Specifications
A 12.7 mm
B 8.1 mm
C 3.7 mm
D 4.7 mm
E 8.1 mm
F 0.3 mm
G 1.5 mm
H 6.8 mm
I 0.1 mm
Package Quantity Sold in packs of 100
Material Stainless Steel

Additional Information

Telco Block Accessories

Telco blocks are utilized to connect phone systems to data networks. There are two popular forms of telco blocks: the 66 block and the 110 block. The 66 block is quite common in modern phone systems, as they simplify connecting multiple phone lines. The 66 block is also referred to as B-blocks, M-blocks, and as split-50 blocks. We also have Cable Distribution Spools, or mushroom posts for managing your cross connect wire. It is designed for mounting onto walls or other surfaces to help support and guide your cross connect wire. Our cable distribution spools are also ideal for CAT3 cable for telephone applications.

To learn more about our Telco Block Accessories please visit our overview page. Our CAT5E 110 Wiring Blocks can be combined with a wide array of products such as:

What's in the box?

What's in the box?

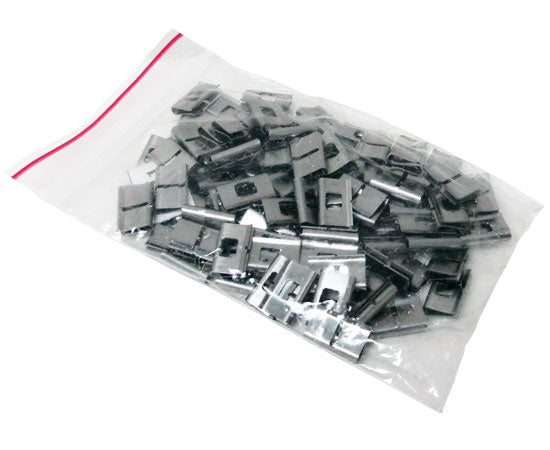

  • Qty 1 - Package of (100) metal bridge clip for a 66 punch down block.
