Description

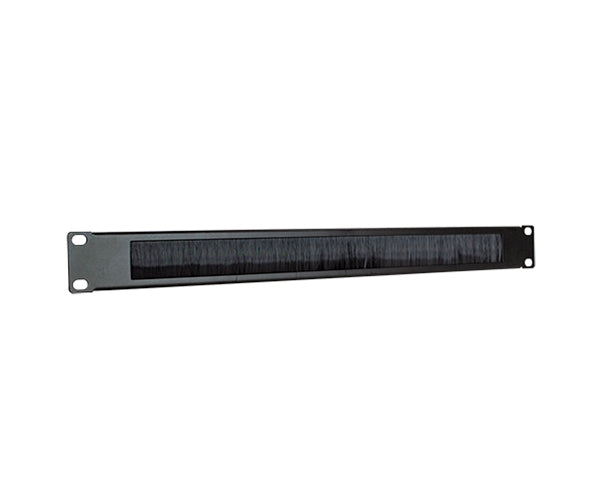

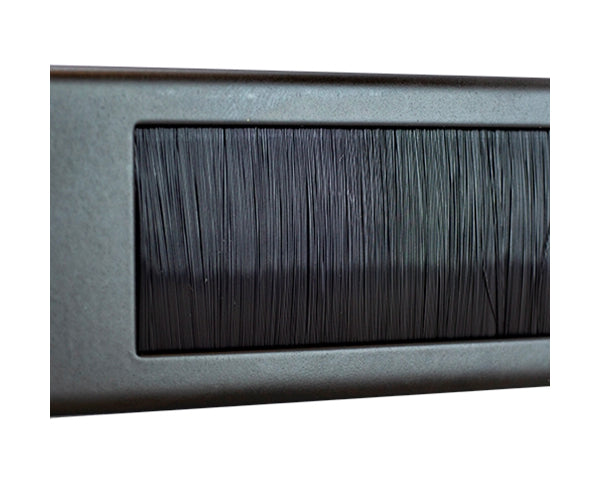

Brush Filler Panel, 1U

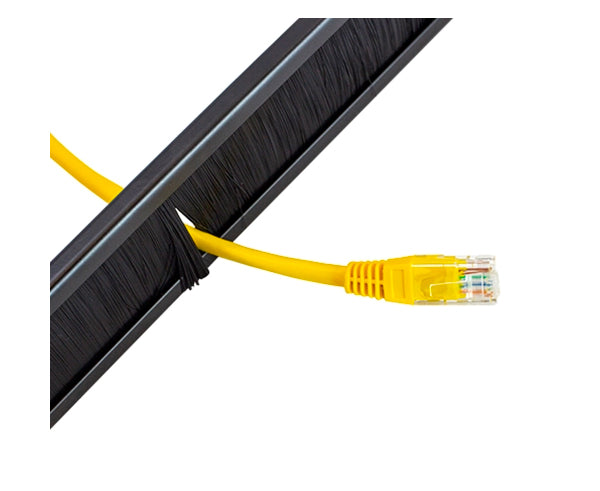

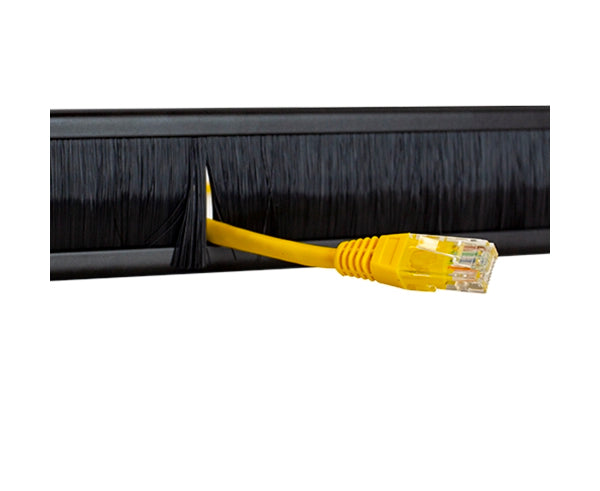

This 1U brush filler panel allows cables to pass from the front of equipment to the back, while still preventing hot air from re-circulating to the front of the cabinet.
Features
Features
- Controls airflow and fills unused spaces
- Powder coated cold rolled steel (black)
- Mounting Hardware Included
Specifications
| Technical Specifications | |
|---|---|
 |
|
| 1U Brush Filler Panel | |
| Plate Material | Cold Rolled Steel |
| Plate Finish | Powder Coated |
| Dimensions (HxWxD) | 1.72" x 19" x 0.35" |
| Rack Unit Quantity | 1U |
| Mounting Hardware | Included |
| Cable Capacity (CAT5e) | 872 (Based on 50% Fill Rate) |
| Cable Capacity (CAT6) | 218 (Based on 50% Fill Rate) |
| Cable Capacity (CAT6A) | 116 (Based on 50% Fill Rate) |
| Quantity Per Package | 1 (Sold Individually) |
What’s In The Box
What’s In The Box
- Qty 1 - 1U Brush Filler Panel
