Bundled Siamese Cable, 1x RG6U Quad Shield, 1x CAT5E 350MHz 24AWG, Spool, Blue, 500ft

$127.89
SKU: BCC-1947
Update
UL Compliant ETL Verified RoHS Compliant

##SHAREDCONTENT[STRING_10PLUS_SHIPPINGQUOTE]##

For a more complete list of compatibility with ##STORENAME##'s Bundled Siamese Cable please click on the additional information tab.

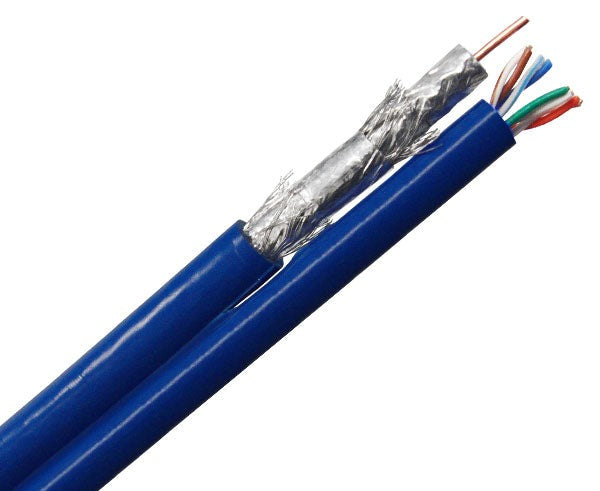

Bundled Siamese Cable, CAT 5E, RG6 Quad, 500ft Blue

The standard process of pulling a single cable through pathways and conduit can be labor-intensive with multiple cables. There are multiple things the installer has to keep in mind before, during, and after pulling cable, such as size of the pathway and/or conduit, cable length, making sure the cable is not kinked or damaged, and is the cable properly stripped and terminated. Now think about if the installer has to pull multiple cables to the same location, the installer would have to repeat the process for each cable.

##STORENAME## has an alternative. Our Bundled Cables allow installers to run multiple cables to one location in a single pull saving the installers precious time, money and resources. When only one bundled cable is pulled, the potential for length variations across individual cables is eliminated, reducing cable scrap and additional time needed to re-pull short lengths. Having only one reel with bundled cable also provides overall easier handling and less waste on the work site. The bundled cables were designed to help simplify the process of pulling cables in homes and/or offices. Our versatile bundled cable is everything all rolled into one with 1x quad shield coaxial cables and 1x cat5E 350MHz UTP cables covered in a blue PVC sheathing. This cable is available in a length of 500 ft. on a durable wooden spool.

    CAT 5E UTP Cable

    This CAT 5E Unshielded CM Rated Cables have 8 conductors (4-Pairs) that are made of 24 AWG solid bare copper with a high density polyethylene (HDPE) insulation and a UL FR-PVC jacket. Our CAT 5E Unshielded CM Rated Cables are also tested up to speeds of 350MHz (The cable standard for CAT 5E is only 100 MHz).

    RG6 Quad Shielded Coaxial Cable

    The RG6 Quad Shielded CM Rated Cables are made from a solid copper 18 AWG conductor, 100% AL foil + 60% copper clad steel braid + 100% AL foil + 40% copper clad steel braid shielding, gas-injected Foam PE insulation, and FR-PVC Jacket.

Certifications
To make sure we are supplying our customer with high quality bulk Ethernet cables our cable have to meet and/or exceeds TIA 568 C.2 standards. Our Bundled Cable is also manufactured to meet current industry guidelines and is verified by outside standards organizations including c(UL)us and ELT as well as being RoHS Compliant.

Additional Items We Sale
To complete your connections and network we carry a full end to end solution including Security & Surveillance, Networking, Tools, Home Audio & Video, Telecommunications, Coaxial, Electrical, and more. If you have any questions, feel free to give us a call.

Features:

  • High-Performance Commercial Grade Low Voltage Cable
  • Extra Headroom Provides Room For Growth
  • Third Party Verified To TIA/EIA-568-C.2 Category 5E
  • NEC/(UL) Specification: CM
  • C(UL) Specification: CM
  • RoHS Compliance for The Requirement Of European Union Issued Directive 2002/95/EC
  • Marked In Descending Order (So you always know how much cable is left)
  • Supplied On A 500 Foot Easy To Use Wooden Spool

  • CAT 5E UTP Cable Features
    • High-Performance Data Communications Cable
    • Suitable For 350MHz High-Speed Data Applications/li>
    • Category-5E Unshielded Twisted Pair (UTP) Cable
    • 4-Pair Easily Identified Color Striped Pairs
    • 24 AWG Solid Bare Copper Conductors
    • Excellent Attenuation And Crosstalk Characteristics

    RG6 Quad Shielded Cable Features
    • High-Performance Coaxial Cable
    • 18 AWG Solid Bare Copper Conductor
    • Gas-Injected Foam PE Insulation
    • Quad Shielded: AL Foil (bonded) + 60% CCS Braiding + AL Foil + 40% CCS Braiding
    • FR-PVC Jacket
    • Excellent Attenuation And Crosstalk Characteristics

Bundled Cable Applications

  • HDTV
  • Multimedia
  • DBS
  • Voice
  • CATV
  • Data
  • CCTV
  • High Speed Internet
  • Distributed Video
  • Networking Computing
  • Distributed Audio
  • Security Monitoring
  • Energy Monitoring
Download Spec Sheet

Additional Information :


##STORENAME## has all the products that you would need for this Bundled Cable with 1x CAT 5E UTP Cables + 1x RG6U Quad Shield Coaxial Cables. To find the items you need you can simply search for them on our user friendly website, call us (##STOREPHONE##), email us (##STOREEMAIL##), or click on a links below.

Do you need additional items? We have compiled a list of our product that work great with our Bundled Cable.

  Items that work with the bundled CAT 5E UTP Cable
  Items that work with the bundled RG6 Quad Shield Cable
  Additional items that work great with our Bundled Cable


What's in the Box


##STORENAME##'s Item Number: BCC-1947
  • Bundled Siamese Cable With 1x CAT 5E UTP Cables + 1x RG6U Quad Shield Coaxial Cables In A Blue PVC Jacket On A 500ft. Wooden Spool
