Cam-Box™ Kit for Installing a Security Camera

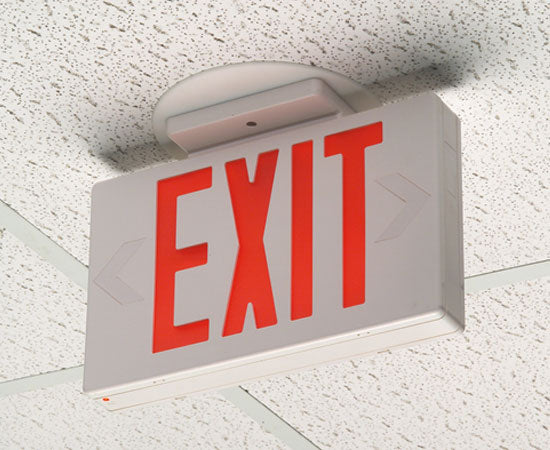

Introducing our CAM-LIGHT™ kits: Perfect for installing any security camera or fixture (with a base diameter of up to 7") on suspended or drywall ceiling panels. Quick installation with a 4" hole saw for power or low voltage, saving time and money. Tested assembly holds up to 50 lbs on suspended or drywall ceilings. Compatible with any security camera hole pattern as holes are drilled in the mounting plate. Larger cameras (base diameter from 4.5" to 7") can be mounted directly to the box flange.
Features
Features

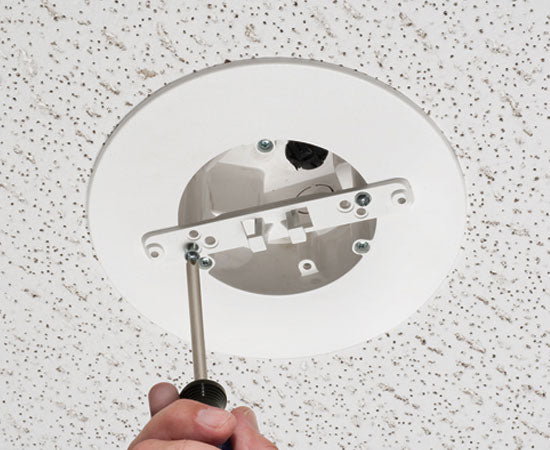

- Designed to install security cameras to a suspended ceiling panel - fast with a 4" hole saw
- Rated up to 50 lbs on a suspended ceiling (or drywall ceiling) in combination with the drop wire for support
- Rated up to 10 lbs on a drywall ceiling without drop wire
- Rated up to 7 lbs on walls

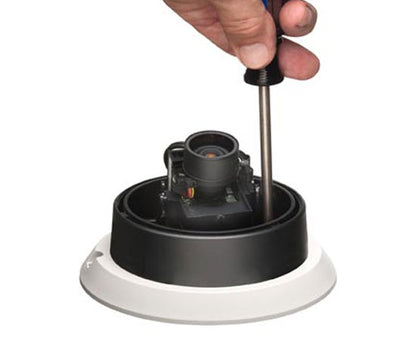

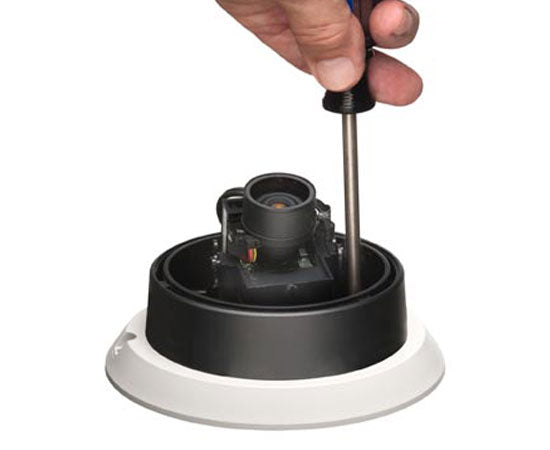

- For security cameras, it fits any hole pattern because you drill the holes in the appropriate location in the flange, cameras with mounting holes set wider than 4.5" apart install directly to the box flange
- Mounting wings hold the bracket securely against a wall when screws are tightened
- White, non-metallic, paintable flange
- Steel version for use where metal raceways are required
- Steel version installs with 4-1/2" hole saw
- 1/2" and 3/4" knockouts
- Box rotates in either direction for proper camera position
Specifications
Specifications
| PHYSICAL INFORMATION | |
| Weight | 0.900 lbs/each |
| Height | 7.380" |
| Width | 7.380" |
| Color | White |
| Material(s) | Plastic |
| Paintable | Yes |
| TECHNICAL INFORMATION | |
| Cubic Inches | 27.0 |
| Knockout Size(s) | 1/2" and 3/4" |
| Trade Size | 27.0 cu. in. |
Additional Information
Additional Information
What's In The Box
What’s In The Box
- (1) NM95 Cable Connector
- (1) NM94 Cable Connector

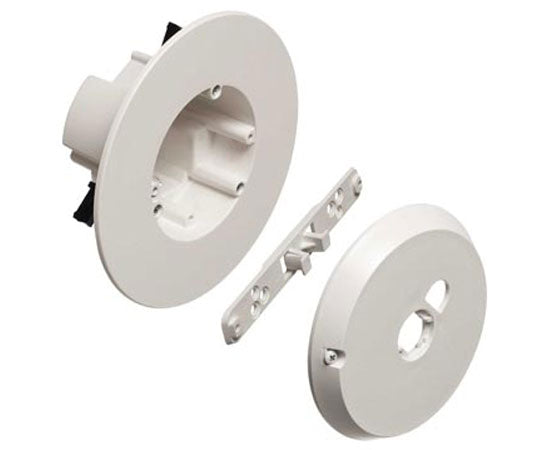

- (1) Mounting Plate
- (1) Mounting Bracket
- (1) Box

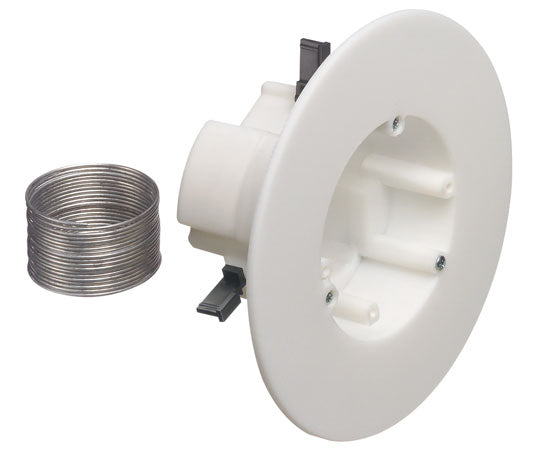

- (1) 12 Foot Support Wire
- (2) #8-32 x 5/8" Long Screws
- (1) #8 x 3/8" Long Screw
- (4) #6 x 1/2" Long Screws
