Description
CAT5E 8 Port Data Module
This compact CAT5e Data Module is a cost-effective solution designed to provide broadband internet access for up to eight (8) computers in a residence. The module is integrated with a non-bridged CAT5e data board with eight (8) standard 4-pair 110 IDC connectors, providing high-performance connectivity that's tested to exceed TIA/EIA-568-B.2 industry standards. This compact CAT5e data module is UL-listed and has a PCB board design, without housing, offering the same performance. Used with CAT5e UTP solid cable.
Features
- Designed to support up to 8 Category 5e data lines.
- Wiring in accordance with the TIA-568A Standard for residential use.
- Exceeds ANSI/TIA/EIA-568-B.2 Standards for residential use.

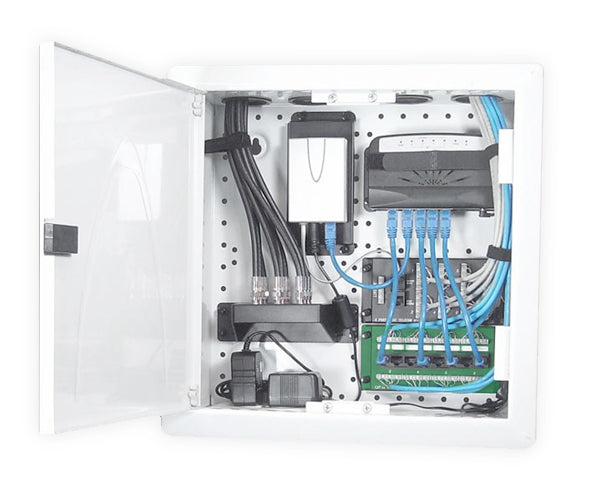

- Fits all 14", 21", and 28" Resi distribution center enclosures with the 4 locking buttons.
- Modules are compatible with most major manufacturers' enclosures.
- Easy 110 Punchdown
- UL listed.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| 8‑PORT CAT 5E DATA MODULE | |
| PCB | GLASS EPOXY FR‑4 COPPER CLAD, T = 1.20MM |
| 110 BLOCK HOUSING | PC, UL 94V‑0 |
| 110 BLOCK IDC | PHOSPHOROUS BRONZE, TIN PLATED |
| RJ45 JACK / SOCKET HOUSING | PBT + 15% FIBER GLASS |
| RJ45 JACK CONTACT | PHOSPHOROUS BRONZE, 50U" GOLD PLATED |
| WIRING STANDARD | TIA‑568A |
| CATEGORY RATING | CATEGORY 5E |
| BRACKET | |
| MATERIAL | 18 GA CRS |
| SURFACE FINISH | WHITE POWDER COAT |
| LOCKING BUTTON | |
| MATERIAL | NYLON 6/6, UL 94V‑0 |
Additional Information
Telco Accessories
As data networking standards evolve toward faster speeds and higher bandwidth, some fundamental network components remain unchanged. Telecommunications networks still rely on CAT3 Ethernet cable for voice networking and telephone cable for establishing phone landlines. This is your one-stop shop for reliable telco equipment and cable to help you stay connected.
To learn more about our Telco Accessories, please visit our overview page. Our CAT5E 8 Port Data Modules can be combined with a wide array of products, such as:
What's in the Box
- Qty 1 - Package of CAT5E 8-Port Data Module
