Description

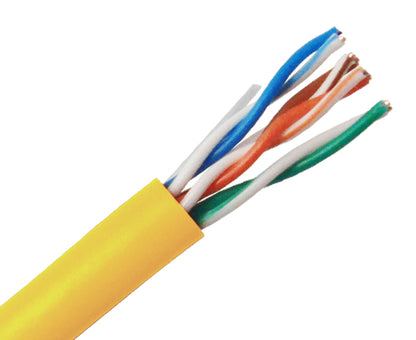

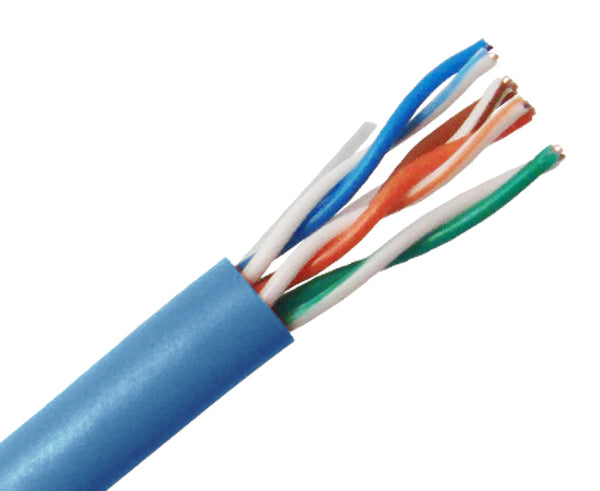

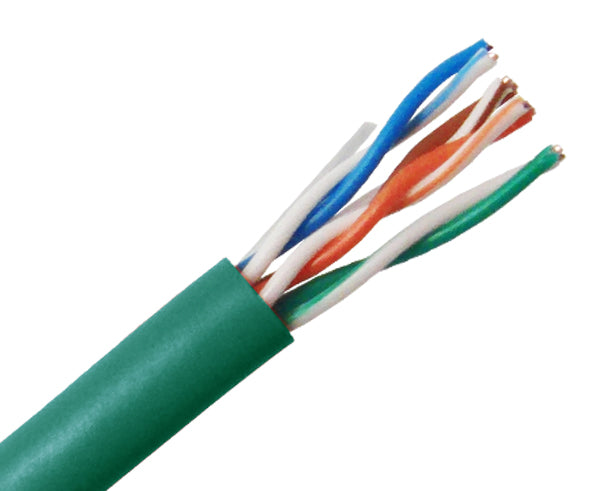

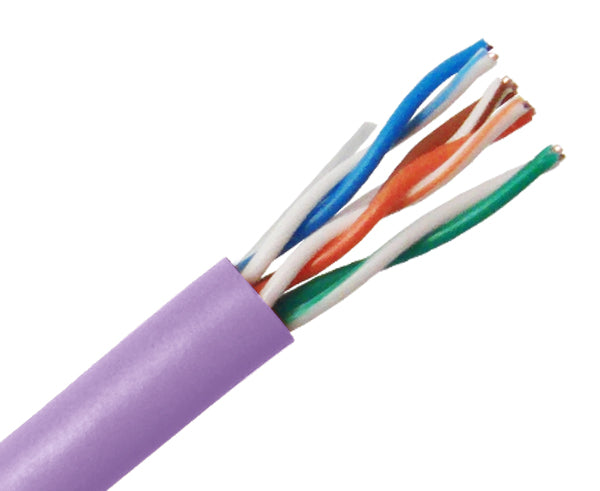

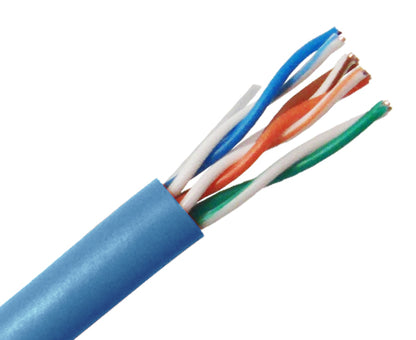

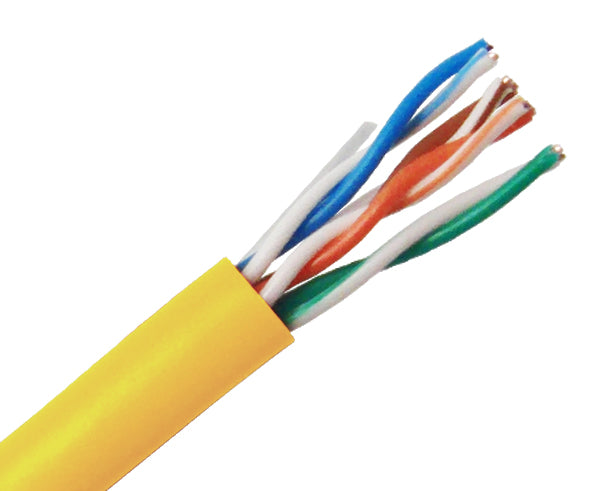

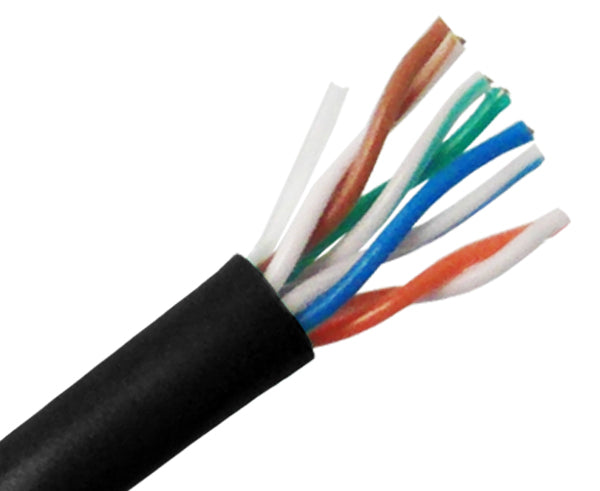

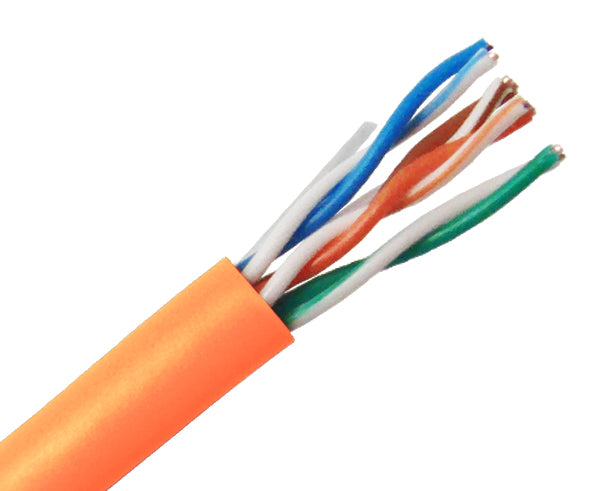

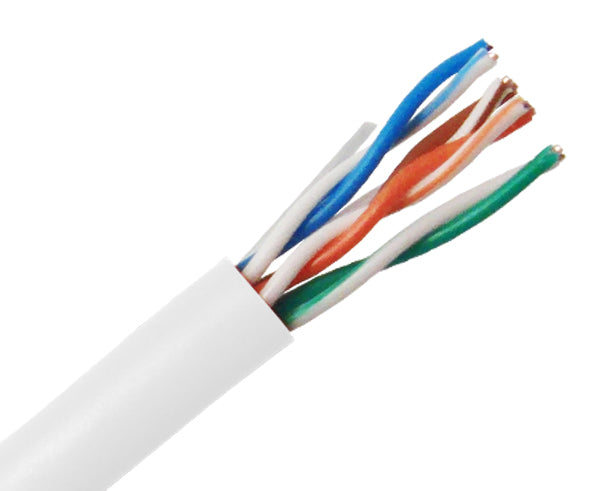

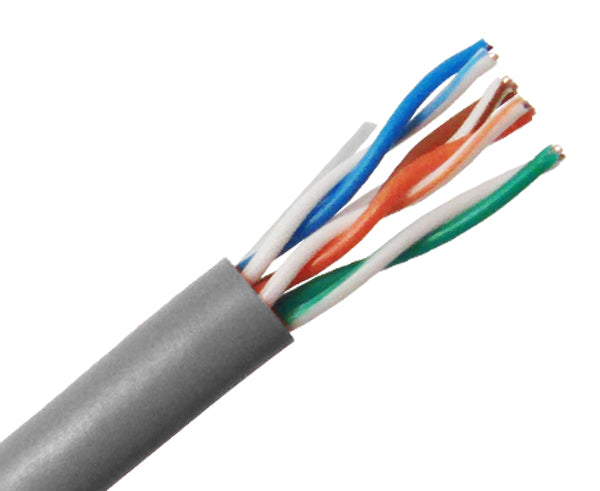

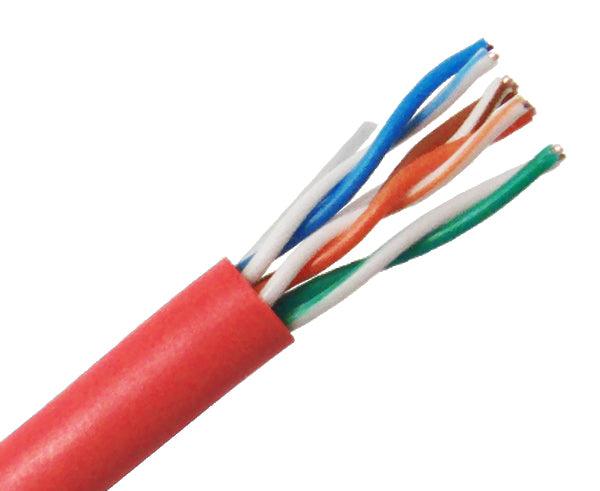

CAT5E UTP Bulk Ethernet Cable, Solid Copper CM Rated, 24 AWG 1000FT
Our ETL Verified CAT5E CM Rated Cable is tailored for indoor voice, data, video, and security networking applications, offering a dependable solution for homes, offices, or campus-wide installations.
This cable, backed by ETL verification for quality assurance, is meticulously crafted for reliable indoor setups. Featuring 8 solid bare copper conductors (4 pairs) with high-density polyethylene (HDPE) insulation and a PVC CM-rated RoHS Compliant jacket, it's engineered for indoor LAN applications. Perfect for wall installations or non-plenum areas, it's tested to handle speeds of up to 350MHz.
Committed to delivering top-notch bulk Ethernet cables, our products meet or exceed CAT5E ANSI/TIA-568.2-D standards and adhere to current CAT5E guidelines. They're verified by trusted standards organizations including ETL Verified, ensuring compliance with RoHS standards.
Technical Diagram
Cat 5E Bulk Cable Options
| Stranded Copper UTP | Stranded Copper F/UTP | Solid Copper UTP | Solid Copper F/UTP | |||||
| General (CM) | General (CM) | General (CM) | Outdoor (CMX) | Riser (CMR) | Plenum (CMP) | Outdoor (CMX) | Riser (CMR) | Plenum (CMP) |
Cat 6 Bulk Cable Options
| Stranded Copper UTP | Stranded Copper F/UTP | Solid Copper UTP | Solid Copper F/UTP | Solid Copper S/FTP | ||||||
| General (CM) | General (CM) | General (CM) | Outdoor (CMX) | 24AWG Riser (CMR) | 23AWG Riser (CMR) | Plenum (CMP) | Outdoor (CMX) | Riser (CMR) | Plenum (CMP) | General (CM) |
Features
Features
- High-Performance Data Communications Cable
- Category 5E CM Rated Cable
- Suitable For 350MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet And 155Mbps TP-PMD/CDDI
- Designed for Indoor CM Rated Installations
- Category-5E Unshielded Twisted Pair (UTP) Cable
- 4-Pair Easily Identified Color Striped Pairs
- 24 AWG Solid Bare Copper Conductors
- Excellent Attenuation And Crosstalk Characteristics
- ETL ANSI/TIA-568.2-D Verified
- RoHS Compliant
- Sequential Length Markings On Jacket

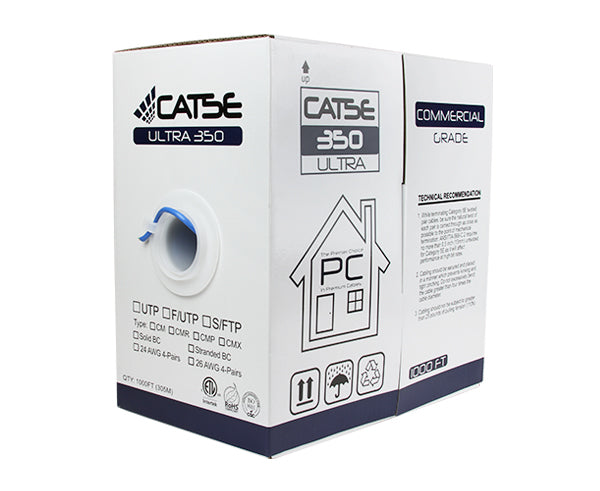

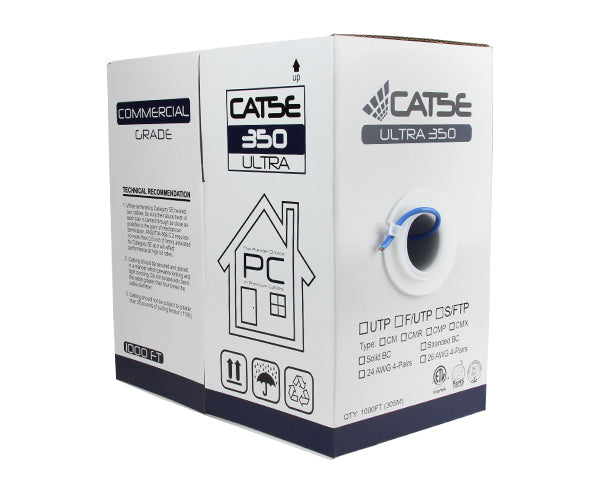

- Supplied in A 1000' Pull Box
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| PHYSICAL CHARACTERISTICS | |
| CONDUCTOR SIZE | 24AWG |
| CONDUCTOR MATERIAL | SOLID BARE COPPER |
| INSULATION MATERIAL | HIGH DENSITY POLYETHYLENE |
| INSULATION DIAMETER | 0.849 ± 0.03MM |
| NUMBER OF CONDUCTORS | 8 CONDUCTORS |
| NUMBER OF PAIRS | 4 PAIRS |
| OUTER SHIELD MATERIAL | N/A |
| DRAIN WIRE | NO |
| OUTER JACKET MATERIAL | PVC CM (ROHS COMPLIANT) |
| OUTER JACKET DIAMETER | 4.8MM ± 0.3MM |
| OUTER JACKET RIP CORD | YES |
| PAIR COLOR CODE CHART | |
| PAIR 1 | WHITE/BLUE STRIPE & BLUE |
| PAIR 2 | WHITE/ORANGE STRIPE & ORANGE |
| PAIR 3 | WHITE/GREEN STRIPE & GREEN |
| PAIR 4 | WHITE/BROWN STRIPE & BROWN |
| MECHANICAL CHARACTERISTICS | |
| STORAGE TEMPERATURE RANGE | 0°C TO +30°C |
| INSTALLATION TEMPERATURE RANGE | 0°C TO +50°C |
| OPERATING TEMPERATURE RANGE | -20°C TO +60°C |
| BULK CABLE LENGTH | 1000FT |
| MAX RECOMMENDED PULLING TENSION | 25 LBS. |
| MIN BEND RADIUS / MINOR AXIS | 0.800 IN. |
| MIN BEND / INSTALLATION | 1.900 IN. |
| TEST OBJECT | JACKET |
| TEST MATERIAL | PVC |
| BEFORE TENSILE STRENGTH | ≥13.5 |
| AGING ELONGATION | ≥150 (100°C FOR 168 HRS) |
| AFTER TENSILE STRENGTH | ≥12.5 |
| MIN AGING ELONGATION RETENTION | 75% |
| MIN TENSILE STRENGTH RETENTION | 75% |
| COLD BEND | N/A |
| ELECTRICAL CHARACTERISTICS | |
| NOM MUTUAL CAPACITANCE | MAX 5600 PF/100M |
| NOMINAL VELOCITY OF PROPAGATION | 69 VP (%) |
| MAX CONDUCTOR DC RESISTANCE | 9.38 Ω/100M @ 20°C |
| MAX OPERATING VOLTAGE (UL) | 300 V RMS |
| MAX DCR UNBALANCED | 2% (@ 20°C) |
| ATTENUATION (MAX) | 21.0DB/100M @100MHz; 43.4DB/100M @350MHz |
| IMPEDANCE 1.0 - 100MHz | 100Ω ± 15% |
| NEXT (MIN) | 32.3DB/100M @100MHz; 23.3DB/100M @350MHz |
| PS-NEXT (MIN) | 29.3DB/100M @100MHz; 20.3DB/100M @350MHz |
| RETURN LOSS (MIN) | 12.0DB/100M @100MHz; 6.6DB/100M @350MHz |
| JACKET PRINTING | |
| PRIMUS CABLE CAT5E UTP 4PR 24AWG 350MHZ CM ETL; VERIFIED TO ANSI/TIA-568.2-D (VID:007) XXXXFT; SEQUENTIAL FOOT MARKERS ON JACKET | |
Additional Information
Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.
CMR: The 'R' in CMR is for 'Riser'. Riser-type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin-producing characteristics.
CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.
Our CAT5E CM Rated Ethernet Cable is compatible with our:
- CAT5E Patch Cables
- CAT5E Modular Plugs
- CAT5E Keystone Jacks
- Blank Patch Panels
- CAT5E Patch Panels
- Wall Plates
- Tools
- Testers
- Cable Management Accessories
What’s In The Box
What’s In The Box

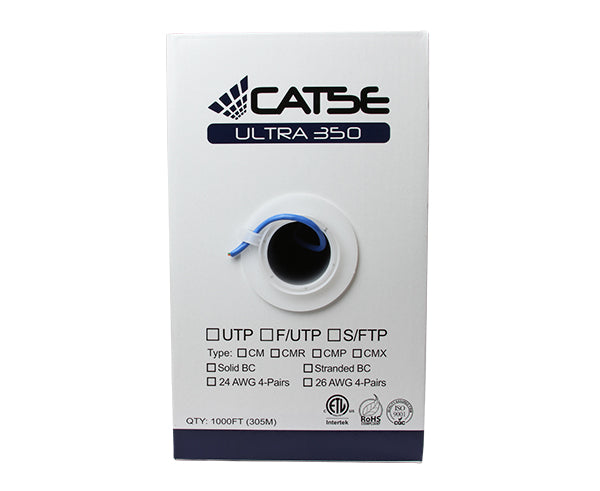

- Qty 1 - Pull box of CAT5E CM Rated Ethernet Cable, 1000ft
