CAT5E Indoor/Outdoor Bulk Ethernet Cable, Solid Copper UTP CMX/CMR, 24 AWG 1000FT
Description
CAT5E Indoor/Outdoor Bulk Ethernet Cable, Solid Copper UTP CMX/CMR, 24 AWG 1000FT
Our Unshielded Indoor/Outdoor CAT5E UV Resistant Cable is ideal for both your indoor and outdoor voice, data, video and security networking applications. Some common applications for this type of cable include retrofitting installations which rely on exterior cable runs that are exposed to heat or sunlight. This cable is ideal for extending cable runs from the point of entry to the interior of the premise to the specified device(s). Whether you are wiring your home, office or entire campus, we have the network solution that is right for you.

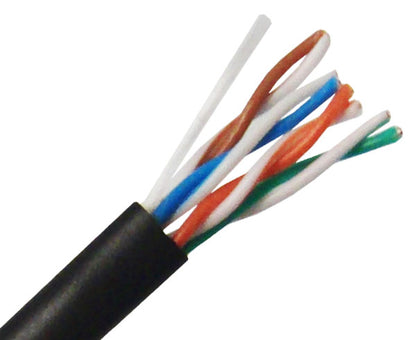

This Unshielded Indoor/Outdoor CAT5E UV Resistant Cable features 8 conductors (4-Pairs) are solid bare copper with a high density polyethylene (HDPE) insulation and a CMX/CMR UV Rated PVC Jacket. Our Shielded Category 5E CMX/CMR, Indoor/Outdoor Riser Cable is designed for residential indoor and outdoor LAN applications and is resistant to cracking after UV exposure, making it the perfect solution for installation runs that require the cable to be exposed to the elements. This cable contains the same UV-blocking compounds as our direct burial cable and features a black jacket in order to prevent critical sunlight damage to the cable. Our Unshielded CAT5E Indoor/Outdoor Cable is also tested up to speeds of 350MHz.
To make sure we are supplying our customers with high quality bulk Ethernet cables our cables have to meet and/or exceeds CAT5E ANSI/TIA-568.2-D standards. Our Unshielded CAT 5E Indoor/Outdoor UV Resistant Cable is also manufactured to meet current CAT5E guidelines and is verified by outside standards organizations such as: c(ETL)us as well as being RoHS Compliant. Additionally, all cables contain a cable ID alpha numeric code imprint on the jacket every two ft.
Technical Diagram
Cat 5E Bulk Cable Options
| Stranded Copper UTP | Stranded Copper F/UTP | Solid Copper UTP | Solid Copper F/UTP | |||||
| General (CM) | General (CM) | General (CM) | Outdoor (CMX) | Riser (CMR) | Plenum (CMP) | Outdoor (CMX) | Riser (CMR) | Plenum (CMP) |
Cat 6 Bulk Cable Options
| Stranded Copper UTP | Stranded Copper F/UTP | Solid Copper UTP | Solid Copper F/UTP | Solid Copper S/FTP | ||||||
| General (CM) | General (CM) | General (CM) | Outdoor (CMX) | 24AWG Riser (CMR) | 23AWG Riser (CMR) | Plenum (CMP) | Outdoor (CMX) | Riser (CMR) | Plenum (CMP) | General (CM) |
Features
- High-Performance Data Communications Cable
- This Cable Is CAT5E Outdoor CABLE UV Rated For Outdoor Use
- Suitable For 350MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet And 155Mbps TP-PMD/CDDI
- Designed For Indoor/Outdoor Installations UV Jacket (CMX/CMR) (UV)
- Category-5E Unshielded Twisted Pair (UTP) Riser Cable
- 4-Pair Easily Identified Color Striped Pairs
- 24 AWG Solid Bare Copper Conductors
- Excellent Attenuation And Crosstalk Characteristics
- Exceeds ANSI/TIA-568.2-D
- ETL Listed
- RoHS Compliant
- Sequential Length Markings on Jacket

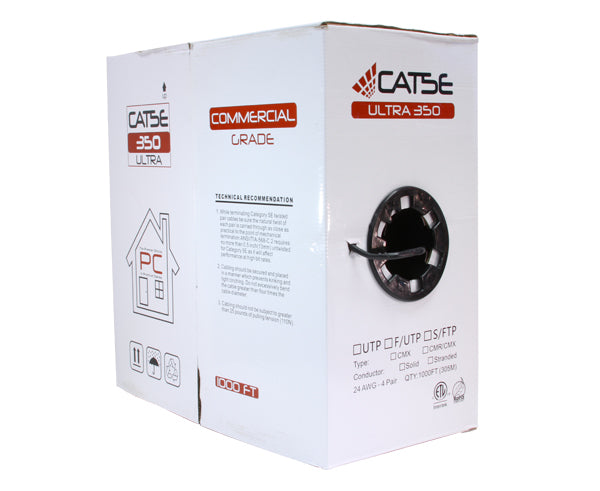

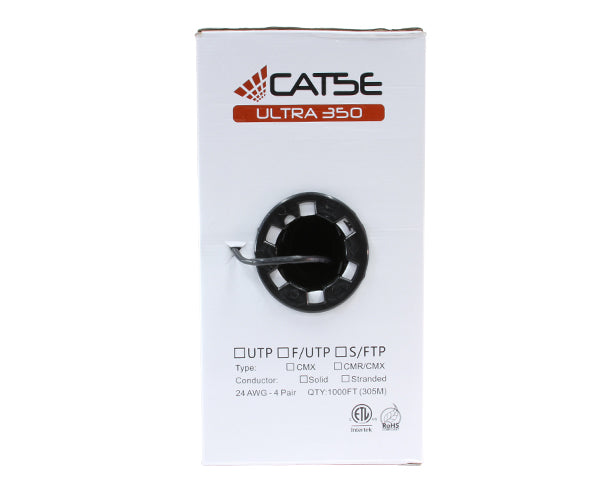

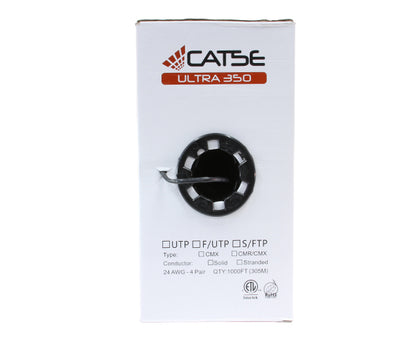

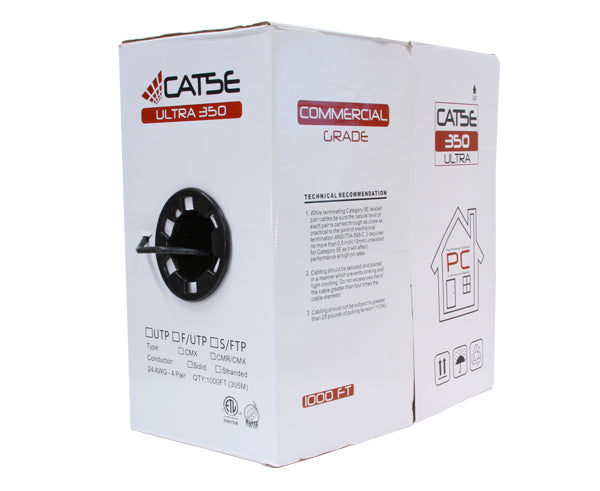

- Supplied in a 1000' Pull Box with large payouts
Specifications
Additional Information
Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.
CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.
CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.
CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.
Cable Accessories Options
To learn more about our Category 5E Direct Burial Outdoor Bulk Cable please visit our product overview page.
Our CAT5E Outdoor Ethernet Cable, 1000ft are compatible with our:
- CAT5E Riser(CMR) Ethernet Cables
- CAT5E Patch Cables
- CAT5E Modular Plugs
- CAT5E Keystone Jacks
- blank Patch Panels
- CAT5E Patch Panels
- Wall Plates
- Tools
- Testers
- Cable Management Accessories
What's in the Box
- CAT 5E Indoor/Outdoor Ethernet Riser Cable, Black Jacket, 1,000ft In A Pull Box Or On A Wooden Spool
