CAT5E Outdoor Bulk Ethernet Cable, Aerial UTP Solid Copper w/ Messenger, 24 AWG 1000FT

$199.99
SKU: C5CMXUM-1920

RoHS CompliantAerial Apllications ISO 9001

Description

CAT5E Unshielded Cable Aerial

CAT5E Outdoor Bulk Ethernet Cable, Aerial UTP Solid Copper w/ Messenger, 24 AWG 1000FT

Our Outdoor Aerial CAT5E Cable With Messenger is ideal for your aerial voice, data, video and security networking applications. Whether you are wiring the outside of your home, office or entire campus, we have the network solution that is right for you.

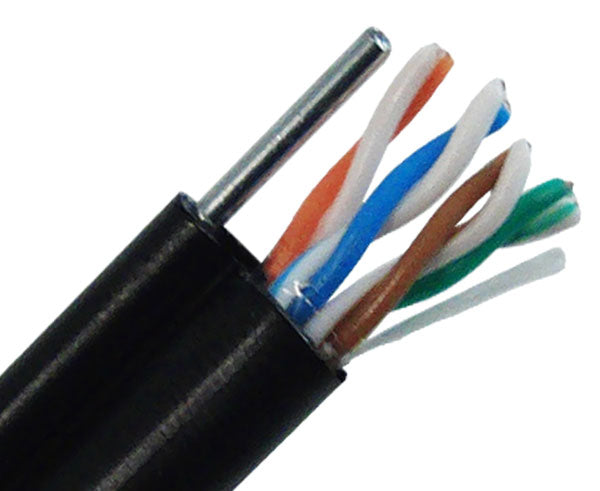

This Outdoor Aerial CAT5E Cable With Messenger is the perfect fit for installations where the cable will be supported by posts or poles. This cable's 8 conductors (4-Pairs) are solid bare copper with a high density polyethylene (HDPE) insulation and a CMX polyethylene (PE) UV resistant jacket. Additionally, our Unshielded Aerial Cable includes a steel messenger wire that helps eliminate drooping and sagging when pulled tight. Our Category 5E Aerial Outdoor Cable With Messenger is designed for outdoor aerial LAN applications, making it the best solution for installation runs that require the cable to be installed above ground (pole to pole). This cable is also tested up to speeds of 350MHz.

Our CAT5E wiring meets or exceeds industry standards for CAT5E ANSI/TIA-568.2-D, so you can rest assured of receiving quality product. CAT5E outdoor aerial wire is manufactured to meet current CAT5E guidelines. It is verified by outside standards organizations and is RoHS Compliant.

Technical Diagram

CAT5E Aerial Unshielded Cable Diagram

Cat 5E Bulk Cable Options

Stranded Copper UTP Stranded Copper F/UTP Solid Copper UTP Solid Copper F/UTP
General (CM) General (CM) General (CM) Outdoor (CMX) Riser (CMR) Plenum (CMP) Outdoor (CMX) Riser (CMR) Plenum (CMP)

Cat 6 Bulk Cable Options

Stranded Copper UTP Stranded Copper F/UTP Solid Copper UTP Solid Copper F/UTP Solid Copper S/FTP
General (CM) General (CM) General (CM) Outdoor (CMX) 24AWG Riser (CMR) 23AWG Riser (CMR) Plenum (CMP) Outdoor (CMX) Riser (CMR) Plenum (CMP) General (CM)

Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.

Features

  • High-Performance Data Communications Cable
  • Category 5E Outdoor Aerial Cable With Steel Messenger, Outside Plant
  • Suitable for 350MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
  • Designed for Outdoor Aerial Installations UV Jacket (CMX) (UV)
  • Category-5E Unshielded Twisted Pair (UTP) Cable
  • 4-Pair Easily Identified Color Striped Pairs
  • 24 AWG Solid Bare Copper Conductors
  • Excellent Attenuation And Crosstalk Characteristics
  • Breaking Tension of the Messenger: 1370 Mpa
  • Maximum Hang Distance: 70 Meters
  • ANSI/TIA-568.2-D, RoHS Compliant
  • Sequential Length Markings Oo Jacket

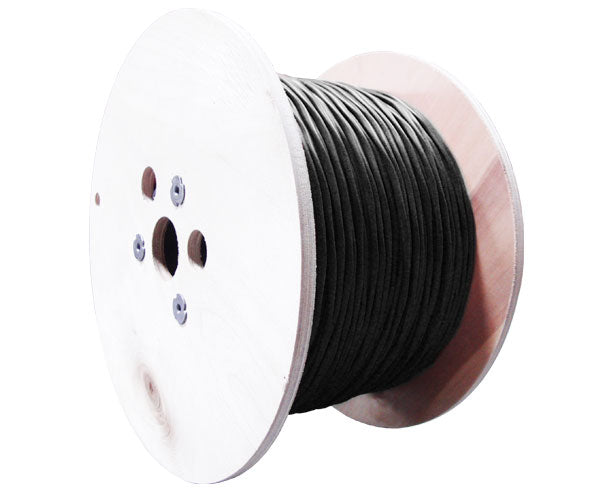

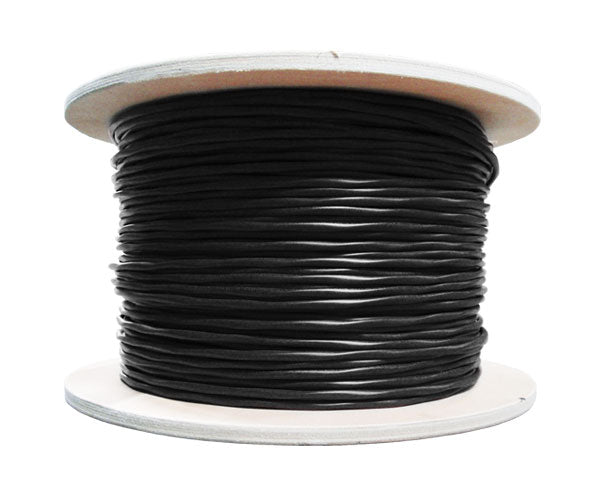

  • Supplied on a 1000' Wooden Spool

Specifications

Additional Information

Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.

CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.

CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.

Cable Accessories Options

To learn more about our Category 5E Outdoor Aerial Ethernet Cable With Steel Messenger Cable please visit our product overview page.

Our CAT5E Outdoor Aerial Ethernet Cable With Steel Messenger Cable is compatible with our:

What's in the Box

Our Item Number: C5CMXUM-1920
