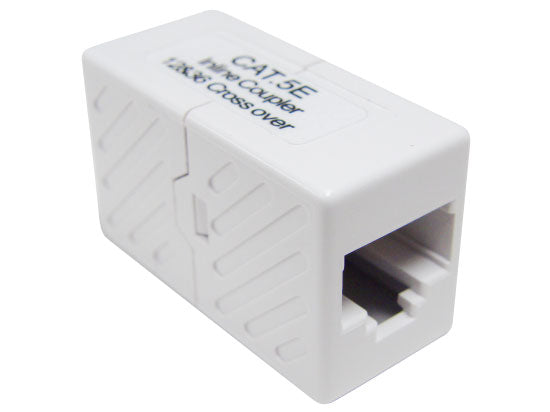

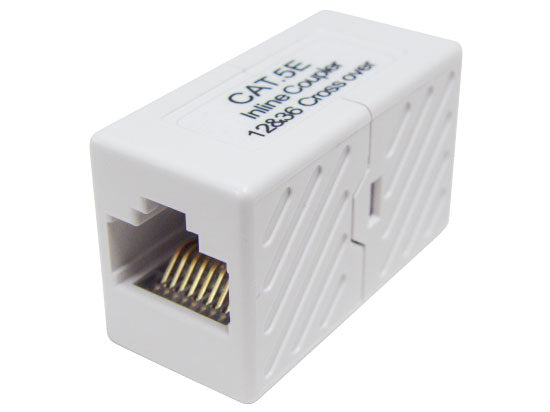

CAT5E Inline Crossover Coupler, Unshielded, White

$2.60
SKU: IC1-4959X
Various lead times may apply to this product. Please contact us for more details.
UL ListedETL ListedRoHS Compliant

For a more complete list of compatibility with the CAT5E Inline Crossover Coupler, click on the Additional Information tab.

Description

Description

Our CAT5E Slim Crossover Coupler Extension are engineered with PCB technology, phosphor bronze IDC contacts, gold plated prongs, and a fire-retardant plastic housing. The CAT5E Slim Coupler line is engineered to simplify the connection helping you save time and money. Simply plug in your patch cables and/or RJ45 terminated CAT5E cables and you're done.

Because we take great pride in our quality control procedures and our commitment to quality our CAT5E Slim Crossover Coupler Extension is subject to UL standards and is UL Listed. Our CAT5E Slim Coupler also meet all requirements for EIA/TIA and also inspected and tested to comply with stringent transmissions and safety standards.

To complete your CAT5E network we carry a full end to end solution including CAT5E bulk Ethernet cables, CAT5E patch cables, CAT5E RJ45 modular plugs, CAT5E keystone jacks, network racks and enclosures, Ethernet switches and wall plates. We also have a large assortment of tools, testers and cable management accessories that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call.

Features

Features

  • CAT5E Performance Speeds Of Up To 350 MHz
  • Meets & Exceeds Industry Standards
  • For Use With CAT5E Ethernet Cables/Patch Cords
  • One RJ-45 Female To One RJ-45 Female
  • Designed For Computer Networking Applications
  • Meticulously Engineered To Deliver Exceptional Performance
  • High Quality Connection And Reliable Performance
  • Small Form-Factor
  • Gold Plated Over Nickel Contacts For Signal Clarity
  • UL Listed

Applications

  • Voice
  • 10BaseT
  • 1000Base-T, VOIP
  • 4 Mbps Token Ring
  • 10 Mbps Ethernet
  • 155 Mbps ATM
  • ISDN

Specifications

Material

RJ45 Jack:
Housing: ABS, UL 94V-0 with optional color
Contact Bracket: PC, UL 94V-2, Transparent color
Height: 0.8 inches
Width: 0.6 inches
Depth: 1.4 inches
RJ45 Jack Contact:
Material: Phosphor Bronze with plated Nickel
Finish: 50 micro-inch Gold plated on plug contact area
PCB: FR4, UL 94V-0

Performance

Insertion Force: 20N max.
Retention Strength: 7.7 kg between Jack and Plug
Operating temperature: -10ºC to 60ºC / 14ºF to 140ºF
Life (mating cycles): 750 cycles min
*The CAT5E transmission performance is in compliance with ANSI/TIA/EIA 568 B.2 standards

Additional Information

Additional Information

Our CAT5E Crossover Keystone Couplers are compatible with:

What's in the box?

What's in the box?

  • Qty 1 - CAT5E Female RJ45 to Female RJ45 Slim Type Crossover Coupler Extension
