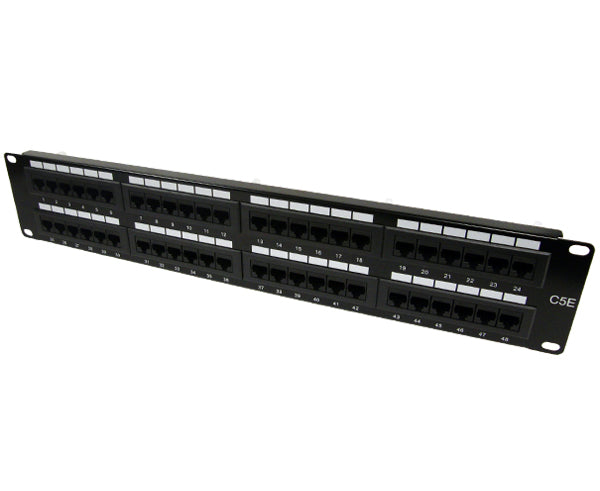

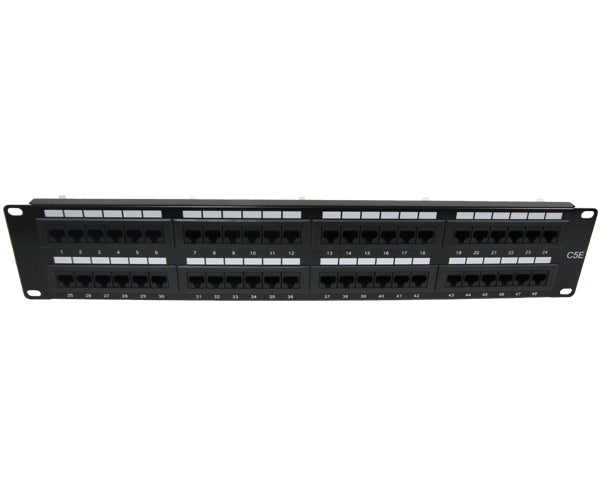

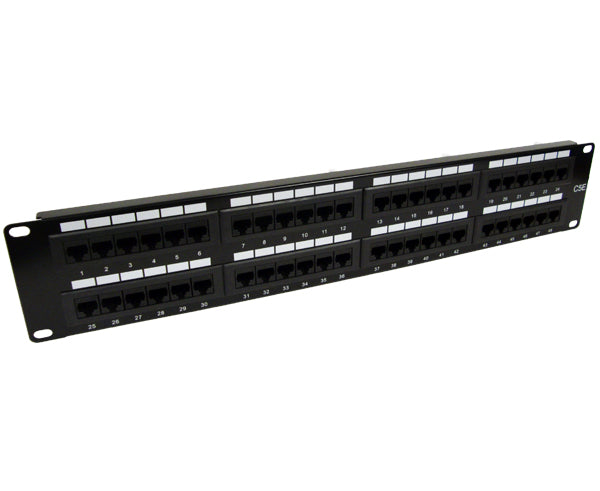

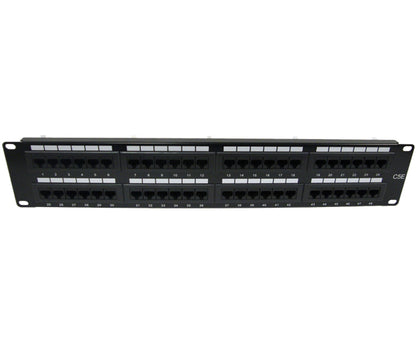

CAT5E Network 48-Port Patch Panel, 2U Rack Mount

$65.99
SKU: PP1-300/48P
UL Listed RoHS Compliant

Description

CAT5E Network 48-Port Patch Panel, 2U Rack Mount

Our preloaded CAT5E ethernet patch panel is perfect for your small home or office. This Unshielded CAT5E Patch Panel has a 48 Port configuration and contains flush mounted RJ45 ports. Our patch panels meet and exceed industry standards, ensuring safety and maximizing the performance of your network.

Product Quality

Product quality is essential to a reliable network. Our CAT5E ethernet cable patch panel meets UL standards and is UL Listed. Additionally, this patch panel is RoHS compliant and also meets TIA/EIA 568A & 568B standards. The RJ45 ports mount flush against the panel's face which helps eliminate cable snags and create a professional aesthetic. This CAT5E Patch Panel is not only ideal for speed and efficiency but also great for cable organization.

Durability & Strength

To ensure our CAT5E Patch Panel's durability and strength, we use SPCC 16 gauge steel. Our patch panel includes gold plated phosphor bronze RJ45 contacts that allow you to plug in your patch cable multiple times without diminishing signal quality.

CAT5E Network Products

To complete your CAT5E network we carry a full end to end solution including CAT5E bulk Ethernet cables, CAT5E patch cables, CAT5E RJ45 modular plugs, network racks and enclosures, ethernet switches and wall plates. We also have a large assortment of tools, testers, and cable management accessories that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call or email us.

CAT5E Network 48-Port Patch Panel, 2U Rack Mount

Features

Features

  • Premium CAT5E Patch Panel
  • 48 Flush Mounted RJ45 Ports
  • Made From Solid 16 Gauge Steel
  • 19" Rack Mountable
  • Includes Mounting Screws, Cable Ties, And Instructions

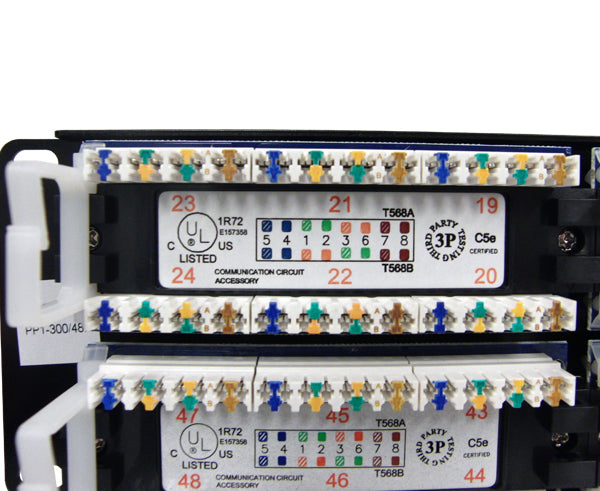

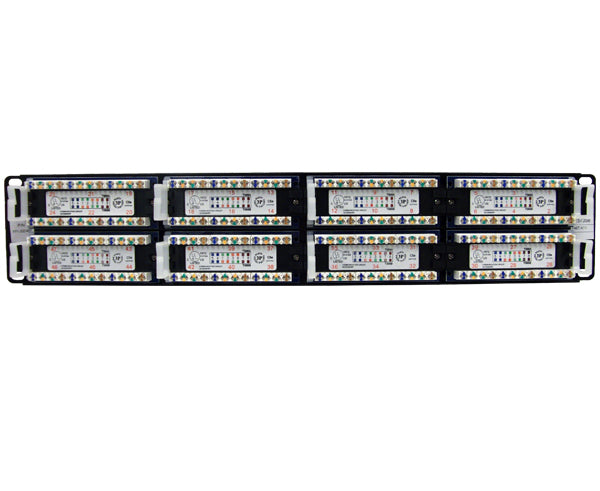

  • Color-coded 110/Krone termination blocks
  • TIA/EIA 568A And 568B Compliant
  • UL Listed
  • RoHS Compliant

Specifications

Specifications

Specifications
Port Quantity 48 Port
Height 2U (3.5 in - 88.9 mm)
Width 19 inches (482.6 mm)
Depth 2.25 inches - 57.5 ± 0.5 mm
Materials
Panel Material SPCC, 1.6mm Thick
RJ45 Housing PBT, UL 94V-0
RJ45 Contact Material & Finish Phosphor Bronze w/ 50-60 Micro-Inch Nickel Plated
Contact Area Min. 3mm 50 Micro-Inch Gold Plated
IDC Housing PC, UL 94V-2
IDC Terminal Material & Finish Phosphor Bronze w/ 50 Micro-Inch Tin-Lead Plated over 50-60 Micro-Inch Nickel Plated
Jacket Bracket Set ABS UL 94V-0, Black Color
Cable Holder Nylon 66, UL 94V-0

Additional Information

Additional Information

A cable rack unit, U or RU is a unit of measure that describes the height of electronic equipment designed to mount within a 19-inch rack or a 23-inch rack. The following are some dimensions of rack heights that are common to computer equipment:

Rack Unit Dimensions
Half-U .875 in - 22.25 mm
1U 1.75 in - 44.45 mm
2U 3.5 in - 88.9 mm
3U 5.25 in - 133.35 mm
4U 7.0 in - 177.8 mm
5U 8.75 in - 222.25 mm
6U 10.5 in - 266.70 mm

High-Density - For networking projects where space is at a premium and efficiency is paramount, we supply CAT5E High-Density Patch Panels. Typically, these high-density patch panels feature more RJ45 Jacks while still adhering to the industry-standard rack sizes.These CAT5E patch panels come in both 24 and 48 port versions with flush mounted jacks. It is designed from solid 16 gauge steel with rounded edges for safety.

Wallmount - This Patch Panel is able to be mounted to a surface or wall.

Rackmount - This Patch Panel is designed to be installed in a network rack as a component of a larger network system


CAT5E Ethernet Patch Panel Accessories

Effective network organization can improve future maintenance, preventing costly downtime. CAT5E patch panels provide a centralized area to route Ethernet cables and patch cords throughout a building. Our Patch Panels come in 12, 24, 48, and 96 port versions to suit your requirements.

To learn more about our CAT5E Patch Panels please visit our overview page. Our Patch Panels can be combined with a wide array of products such as:

What’s In The Box

What’s In The Box

  • Qty 1 - 48 Port CAT5E Patch Panel
  • Qty 4 - Mounting Screws
  • Qty 1- Pack of Cable Ties
