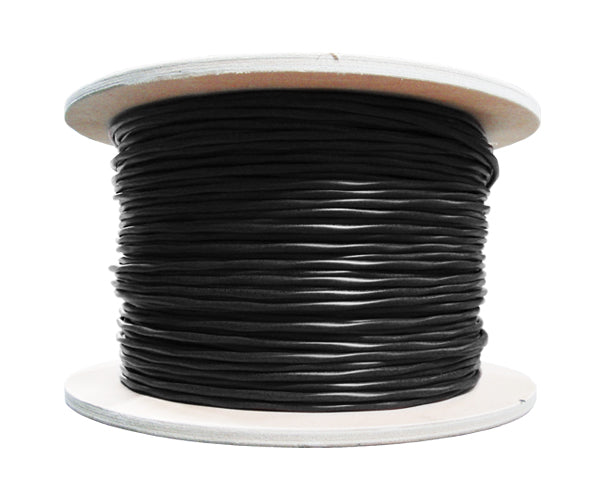

CAT6 Indoor/Outdoor Bulk Ethernet Cable, Shielded CMX/CMR, 23 AWG 1000FT
Our Shielded Indoor/Outdoor CAT6 UV Resistant Cable is ideal for your outdoor voice, data, video and security networking applications. Some common applications for this type of cable include retrofitting installations which rely on exterior cable runs that are exposed to heat or sunlight. This cable is ideal for extending cable runs from the point of entry to the interior of the premise to the specified device(s). Whether you are wiring your home, office or entire campus, we have the network solution that is right for you.

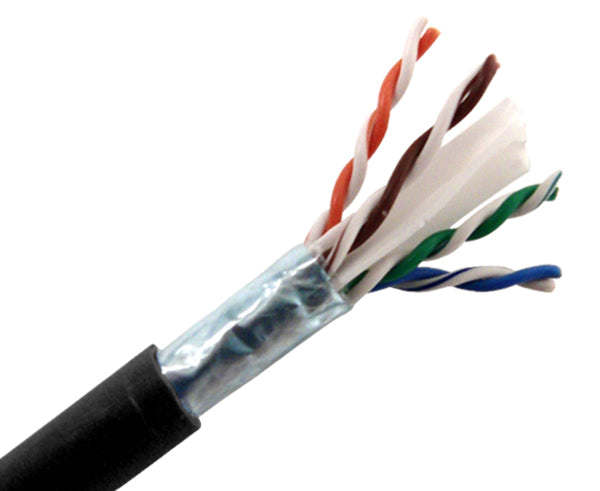

This Shielded, Indoor/Outdoor, CAT6, UV Resistant cable features 8 conductors (4-Pairs) of solid bare copper with a high density polyethylene (HDPE) insulation and a CMX/CMR rated PVC Jacket. Our Category 6, Shielded, CMX/CMR, Indoor/Outdoor, UV Resistant Cable is designed for residential indoor and outdoor LAN applications and is resistant to cracking after UV exposure, making it the ideal solution for installation runs that require the cable to be exposed to the elements. This cable contains the same UV-blocking compounds as our direct burial cable and features a black jacket in order to prevent sunlight damage to the cable. Additionally, this cable has a tinned copper drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cable in order to prevent signal loss, cross-talk, and other performance issues. Our Shielded CAT6 Indoor/Outdoor cable is tested to perform up to speeds of 600MHz.
To make sure we are supplying our customers with high quality bulk Ethernet cables our cables have to meet and/or exceeds CAT6 ANSI/TIA-568.2-D standards. Our Shielded CAT6 Indoor/Outdoor Cable is also manufactured to meet current CAT6 guidelines and is verified by outside standards organizations such as: c(ETL)us as well as being RoHS Compliant. Additionally, all cables contain a cable ID alpha numeric code imprint on the jacket every two ft.
Cat 6 Bulk Cable Options
|Stranded Copper UTP||Stranded Copper F/UTP||Solid Copper UTP||Solid Copper F/UTP||Solid Copper S/FTP|
|General (CM)||General (CM)||General (CM)||Outdoor (CMX)||24AWG Riser (CMR)||23AWG Riser (CMR)||Plenum (CMP)||Outdoor (CMX)||Riser (CMR)||Plenum (CMP)||General (CM)|
CAT6A Bulk Cable Options
|Solid Copper UTP||Solid Copper F/UTP|
|Outdoor (CMX)||Riser (CMR)||Plenum (CMP)||Outdoor (CMX)||Riser (CMR)||Indoor/Outdoor (CMR)||Plenum (CMP)|
- High-Performance Data Communications Cable
- CAT 6 Outdoor Cable, UV Rated For Outdoor Use
- Suitable For 600MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet And 155Mbps TP-PMD/CDDI
- Designed For Indoor/Outdoor Installations UV Jacket (CMX/CMR) (UV)
- Category-6 Shielded Twisted Pair (FTP) Riser Cable
- 4-Pair Easily Identified Color Striped Pairs
- 23 AWG Solid Bare Copper Conductors
- Excellent Attenuation And Crosstalk Characteristics
- Exceeds ANSI/TIA-568.2-D
- ETL Listed
- RoHS Compliant
- Sequential Length Markings on Jacket
- Supplied in a 1000' Pull Box with large payouts
Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.
CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.
CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.
To learn more about our Category 6 Outdoor Bulk Cable please visit our product overview page.
- CAT6 Riser(CMR) Ethernet Cables
- CAT6 Patch Cables
- CAT6 Modular Plugs - CN1-7883-8C6AS
- CAT6 Keystone Jacks - K66-2150-90-SH
- Blank Patch Panels
- CAT6 Patch Panels
- Wall Plates
- Cable Management Accessories
What's in the Box

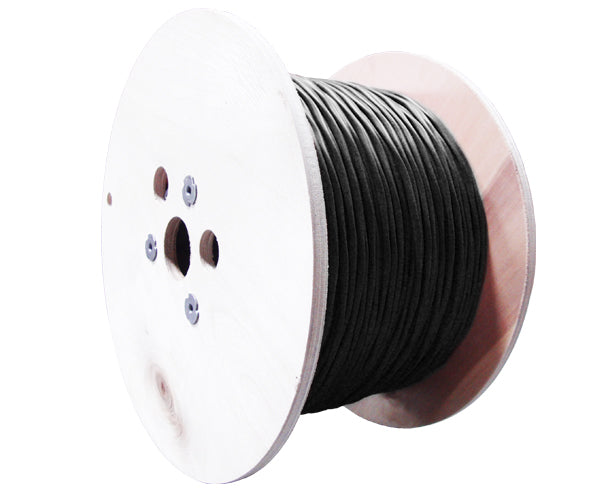

- Shielded CAT6 Indoor/Outdoor Ethernet Riser Cable, Black Jacket, 1000ft In A Pull Box Or On A Wooden Spool
