CAT6A Plenum Bulk Ethernet Cable, CMP, Shielded Solid Copper Conductors, 23AWG 1000FT
Our Shielded Indoor CAT6A Plenum Cable is ideal for your indoor voice, data, video and security networking applications. Some common applications for this type of cable include retrofitting installations which rely on interior cable runs that are not plenum rated. This cable is ideal for installing in plenum spacing because of its fire-resistant qualities. Whether you are wiring your home, office or entire campus, we have the network solution that is right for you.

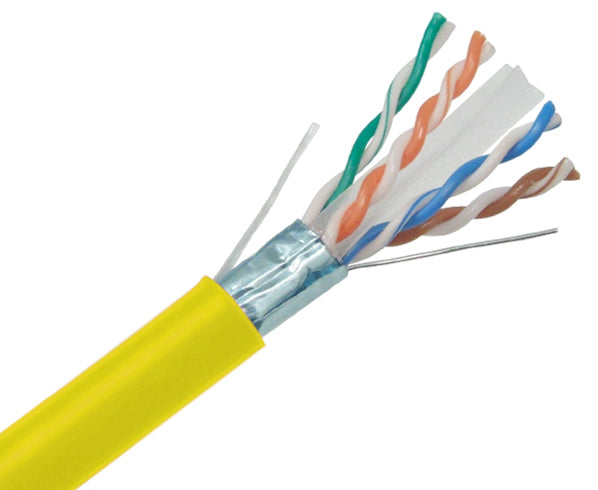

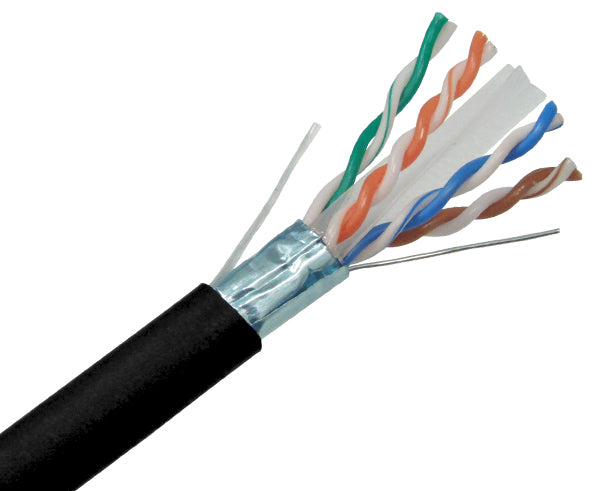

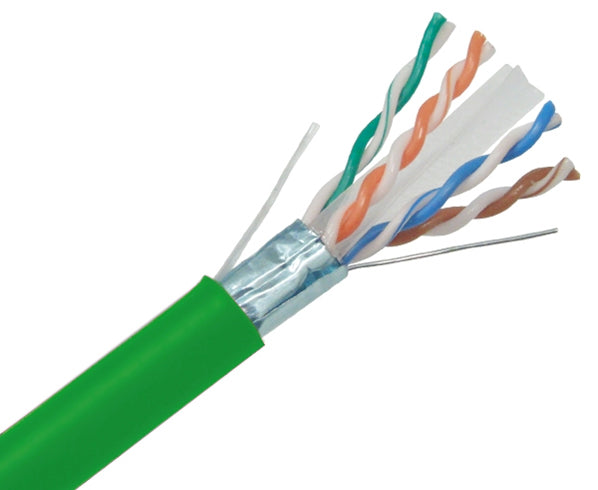

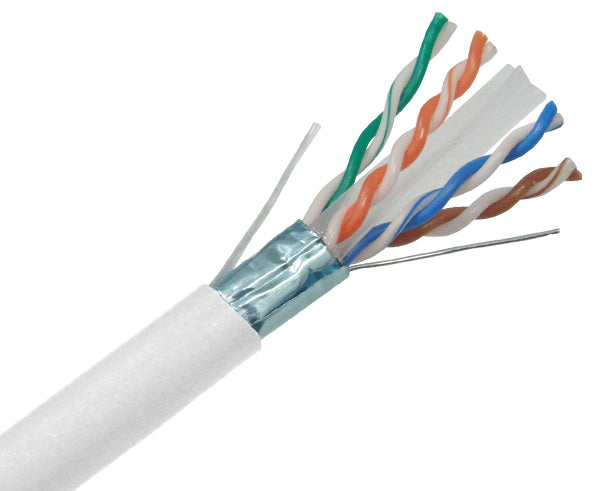

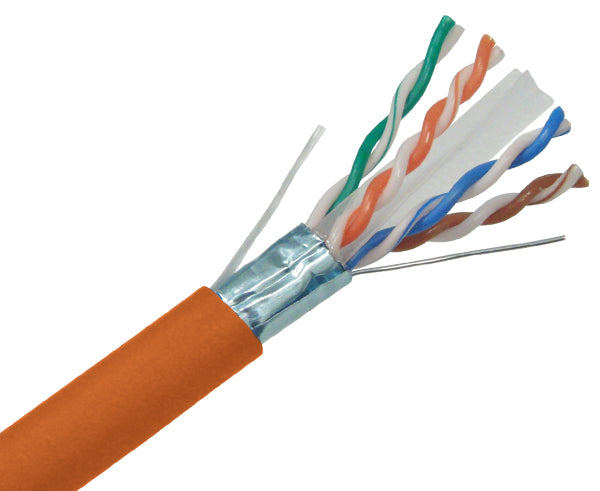

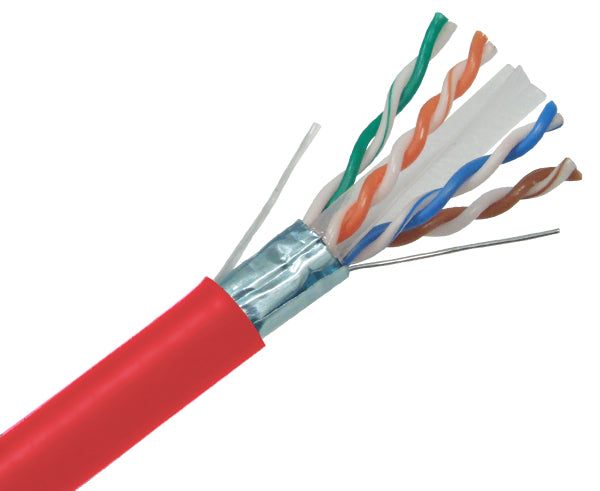

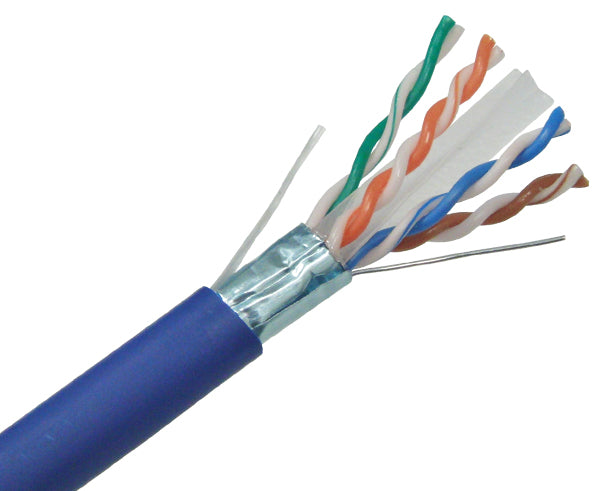

This Shielded, Indoor, CAT6A, Plenum cable features 8 conductors (4-Pairs) of solid bare copper with a high density polyethylene (HDPE) insulation and a CMP rated Jacket. Our Indoor Category 6A Shielded CMP Rated Plenum Cable is designed for residential/commercial indoor LAN applications and is resistant to fire and heat, making it the best solution for installation runs that require plenum rated cable. This cable contains the same fire-resistant compounds as our other plenum cables and features a blue jacket. Additionally, this cable has a tinned copper drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cable in order to prevent signal loss, cross-talk, and other performance issues. Our Shielded CAT 6A Indoor Plenum cable is tested up to speeds of 600MHz.
To make sure we are supplying our customers with high quality bulk Ethernet cables our cables have to meet and/or exceeds CAT6A ANSI/TIA-568.2-D standards. Our Shielded CAT 6A Indoor Plenum Cable is also manufactured to meet current CAT6A guidelines and is verified by outside standards organizations such as: c(ETL)us as well as being RoHS Compliant. Additionally, all cables contain a cable ID alpha numeric code imprint on the jacket every two ft.
CAT6A Bulk Cable Options
CAT7 & Cat7A Bulk Cable Options
- High-Performance Data Communications Cable
- This Cable is CAT6A Indoor Plenum Cable
- Suitable for 600MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
- Designed for Indoor Installations
- Category-6 A Shielded Twisted Pair (FTP) Plenum Cable
- 4-Pair Easily Identified Color Striped Pairs
- 23 AWG Solid Bare Copper Conductors
- Excellent Attenuation and Crosstalk Characteristics
- Exceeds ANSI/TIA-568.2-D
- Sequential Length Markings on Jacket

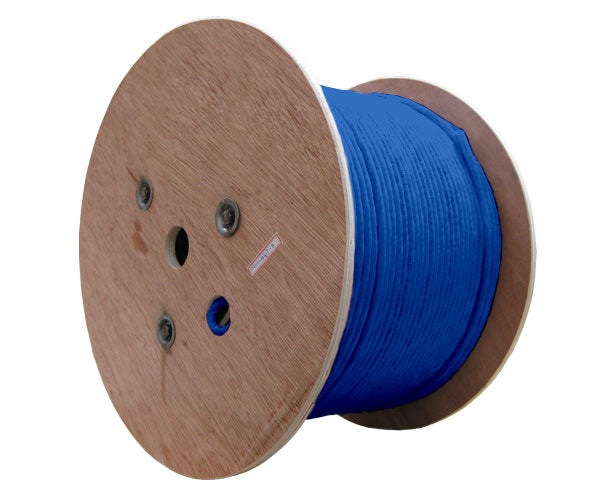

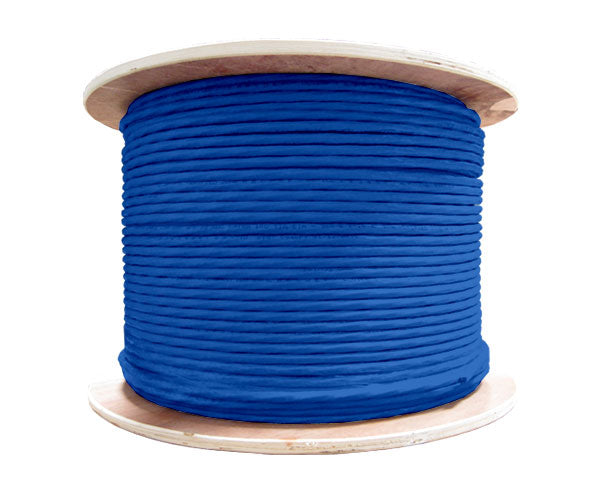

- Supplied in a 1000' Wooden Spool
Solid Wire: Also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.
CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.
CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.
To learn more about our Category 6A Bulk Cable please visit our product overview page.
Our CAT6A Outdoor Ethernet Cable, 1000ft are compatible with our:
- Plenum (CMP) CAT6A bulk Ethernet cables
- CAT6A Modular Plugs - CN1-7883-8C6AS
- CAT6A Keystone Jacks - K66-2150-90-SH
- Blank Patch Panels
- CAT6A Patch Panels
- High Density CAT6A Patch Panels
- Wall Plates
- Cable Management Accessories
What's in the Box
- Shielded CAT6A Indoor Ethernet Plenum Cable, 1000ft on a Spool
