Description

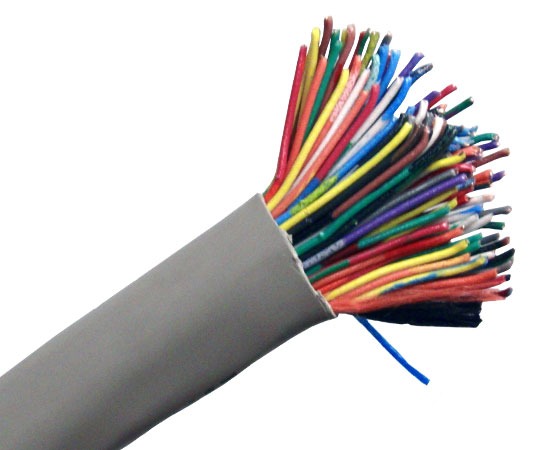

CAT3 Unshielded Solid Bulk Cable, 50-Pair, CMR
Our CAT3 300 Volts Unshielded 50 pair CMR communications cable is perfect voice capabilities. Our CAT3 300Volts CMR Bulk Cable is ideal for telephone installation. Whether you are wiring your home, office or entire campus, we have the solution thats right for you. This cable is designed for indoor type rated riser CMR installations.
Our CAT3 300 Volt riser CMR unshielded solid cable has 50 pairs of 24AWG solid bare copper conductors with a riser CMR rated PVC Jacket. Our CAT3 CMR solid unshielded cable is quality manufactured to meet and/or exceed product certifications and standards UL type CMR, C( UL)CMG, Passes UL 1666 Flame test, RoHS Compliant, TIA 568-B.2 Category 3 specifications. This cable is sold and shipped in 1000ft increments on a wooden Spool.
CAT3 Cable Options:
Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.
CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.
CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.
Features
Features
- High-Performance Voice Communications Cable
- Designed for Indoor Installations, (CMR) Riser
- 50-Pair - Easily Identified Color-Striped Pairs
- 24AWG Solid Bare Copper Conductors
- Passes UL 1666 Flame Test
- RoHS Compliant
- Supplied in Wooden Spools
Applications
Applications
- Voice
- 10BaseT
- 100BaseVG
- AnyLAN
- 4Mbps Token Ring
- 10Mbps Ethernet
- 55Mps ATM
- ISDN
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| PHYSICAL CONSTRUCTION | |
| CONDUCTOR MATERIAL | SOLID BARE COPPER |
| CONDUCTOR SIZE | 24 AWG |
| NUMBER OF CONDUCTORS | 100 |
| NUMBER OF PAIRS | 50 |
| JACKET MATERIAL | GRAY PVC |
| JACKET OD | 0.497 |
| JACKET COLOR | GRAY |
| INSULATION | NOMINAL WALL SR PVC |
| ELECTRICAL CHARACTERISTICS | |
| OPERATING TEMPERATURE | -10°C TO +75°C |
| VOLTAGE RATING | 300 VOLTS |
| COLOR PAIR GUIDE | |
| PAIR 1–16 | 1 - WHITE-BLUE 2 - WHITE-ORANGE 3 - WHITE-GREEN 4 - WHITE-BROWN 5 - WHITE-SLATE 6 - RED-BLUE 7 - RED-ORANGE 8 - RED-GREEN 9 - RED-BROWN 10 - RED-SLATE 11 - BLACK-BLUE 12 - BLACK-ORANGE 13 - BLACK-GREEN 14 - BLACK-BROWN 15 - BLACK-SLATE 16 - YELLOW-BLUE |
| PAIR 17–25 | 17 - YELLOW-ORANGE 18 - YELLOW-GREEN 19 - YELLOW-BROWN 20 - YELLOW-SLATE 21 - VIOLET-BLUE 22 - VIOLET-ORANGE 23 - VIOLET-GREEN 24 - VIOLET-BROWN 25 - VIOLET-SLATE |
| 50 PAIR GROUPING | PAIRS 1–25 WITH WHITE-BLUE BINDER PAIRS 26–50 WITH WHITE-ORANGE BINDER |
| NOTE: TELEPHONE CABLES MANUFACTURED WITH MORE THAN 25 PAIRS ARE MANUFACTURED IN GROUPS WITH DIFFERENT BINDER COLORS AROUND EACH GROUP. | |
| FURTHER DETAILS | |
| STANDARDS | UL | CUL | ROHS | CMP |
| APPLICATIONS | 10BASET AND 100BASEVG | ANYLAN | 4MBPS TOKEN RING | 10MBPS ETHERNET AND 55MPS ATM |
| THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO CRN SOLUTIONS AND MAY NOT BE DISCLOSED OR TRANSMITTED TO ANY OTHER PARTIES WITHOUT THE EXPRESS WRITTEN PERMISSION OF CRN SOLUTIONS. THIS INFORMATION IS PROVIDED FOR THE PURPOSES OF QUOTATION ONLY. | |
Additional Information
To learn more about our Category 3 Bulk Cable here is a link to a page containing more information on our premium Category 3 Bulk Cable.
What’s In The Box
What's In The Box
- Qty 1 - CAT3 300 Volts CMR Unshielded Solid 50-Pair Cable supplied on a 1000ft spool
