Former Part Number: CN1-6786-Z5
Description

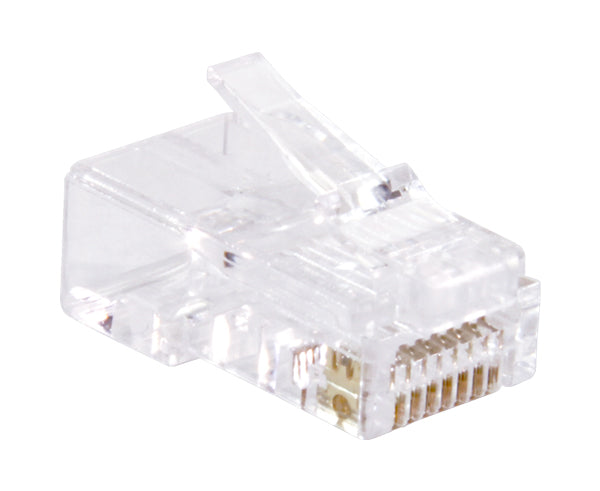

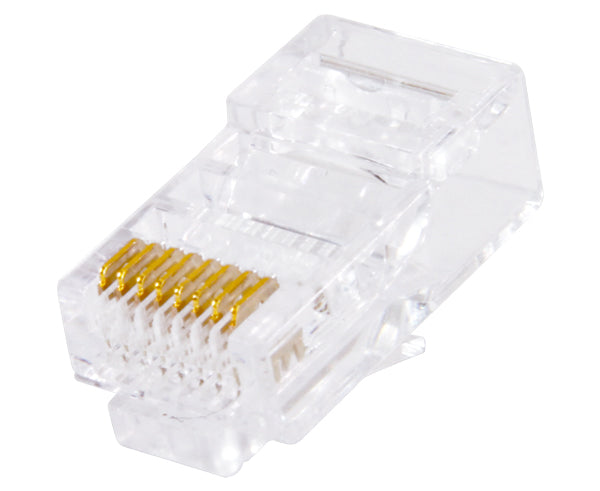

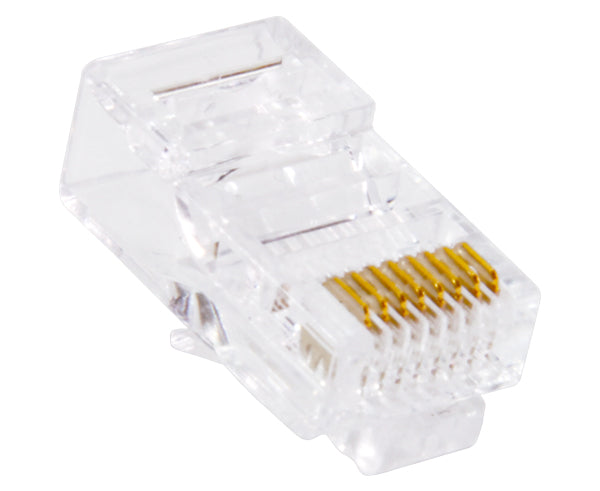

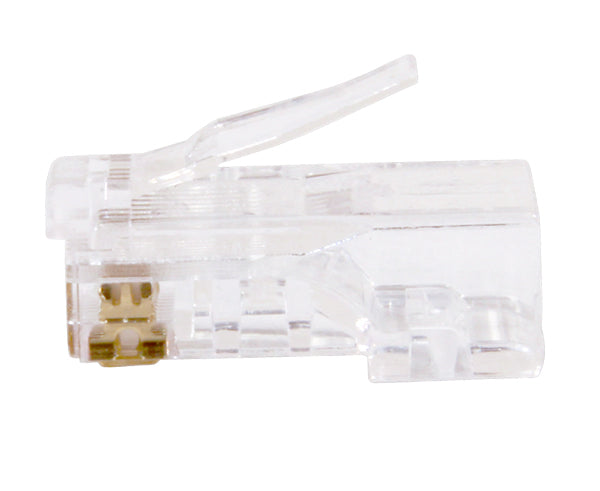

Easy Feed Unshielded RJ45 Connector - CAT5E
The CAT5E Easy Feed RJ45 Modular Plug is the must-have connector for all datacom and telecom installers. This RJ45 Plug saves time and money with its simple easy-to-use design. Installers can simply slide all of the conductors through the jack at once making it clear to verify proper wire alignment before termination. These connectors place the twisted wire pairs straight line to one another and prevent staggering. Connectivity is vital when installing a network so be sure to get these quality plugs on all your CAT5E Cables.
Features
Features
- Feed Through CAT5E 8x8 RJ45 Modular Plug
- For Round Solid or Stranded Cable
- Compatible with 23 AWG ~ 26 AWG Cables (OD Under 6.5mm)

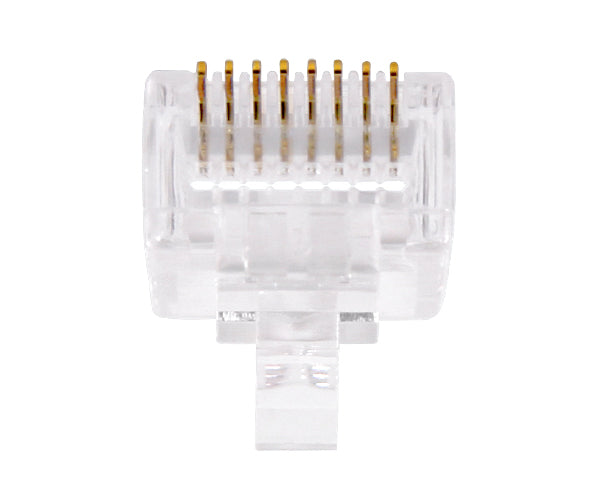

- 3 Prong Gold Plated Conductors

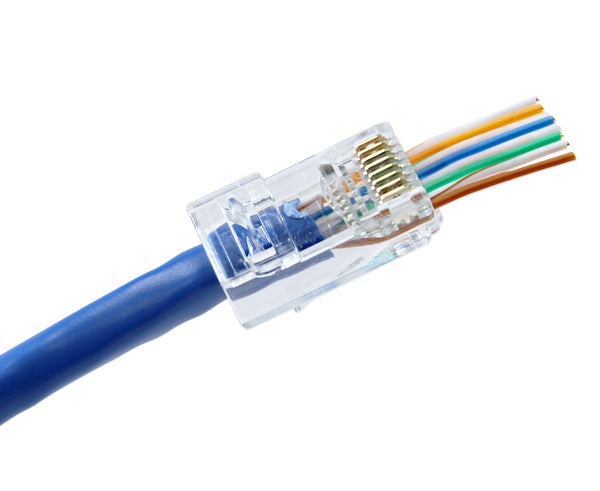

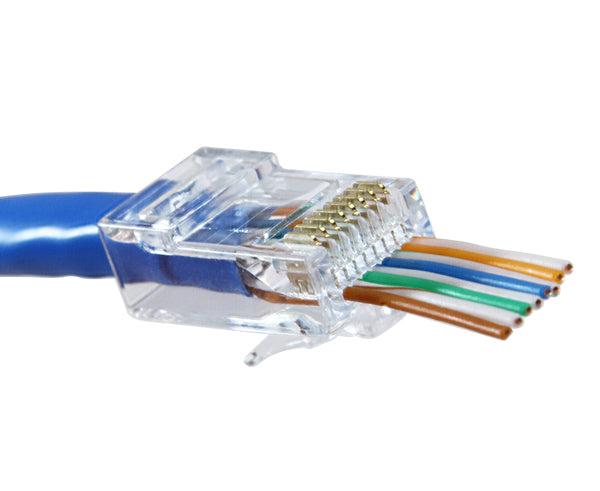

- Wires Inserted Through Front of Connector
- Strain Relief Bar Secures Connector Around Cable
- Faster Terminations With Reduced Scrap
- Simple One-Piece Design
- UL Rated
- Operation Temperature: -20°C ~ +50°C
- UL94V-0 Rated Housing for Superior Flame Resistance
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| ELECTRICAL SPECIFICATIONS | |
| UL Applications | 250 Volts AC Max @ 2 AMPS |
| Dielectric Withstanding Voltage | 1000 Volts AC |
| Insulation Resistance | 500 M Ω |
| Termination Resistance | 20m Ω Max (After Environmental Testing) |
| MECHANICAL SPECIFICATIONS | |
| Cable-To-Plug Tensile Strength | 20 Pound Min. |
| Durability | 1200 Mating Cycles |
| Operation Temperature Range | -20°C ~ +50°C |
| PHYSICAL CHARACTERISTICS | |
| Housing | Polycarbonate, UL94V-0 |
| Color | Transparent |
| Contact Blade | Copper Alloy |
| Conductor Compatibility | Stranded & Solid (23 - 26 AWG) |
| Max Cable OD | Under 6.5 mm |
| Gold Plating | 50µ” |
Additional Information
What’s In The Box
What’s In The Box

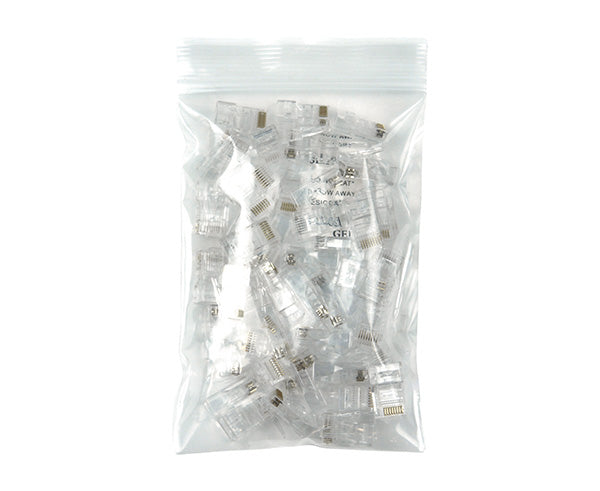

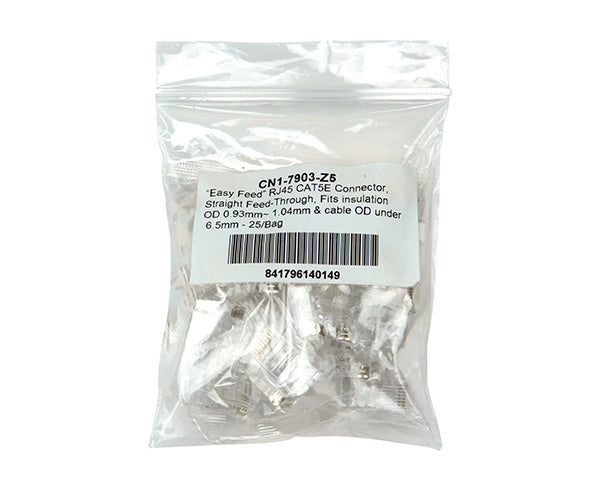

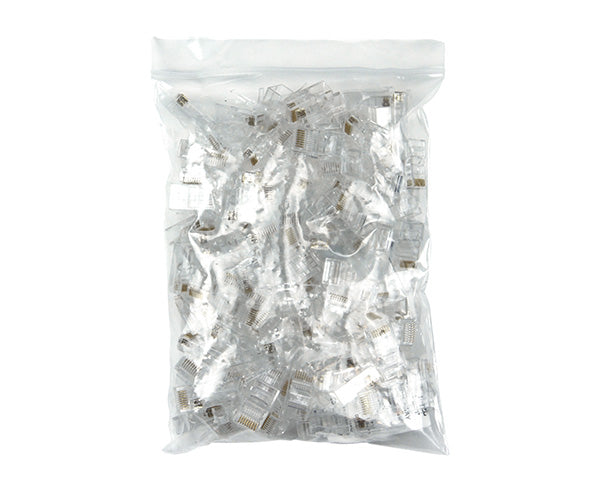

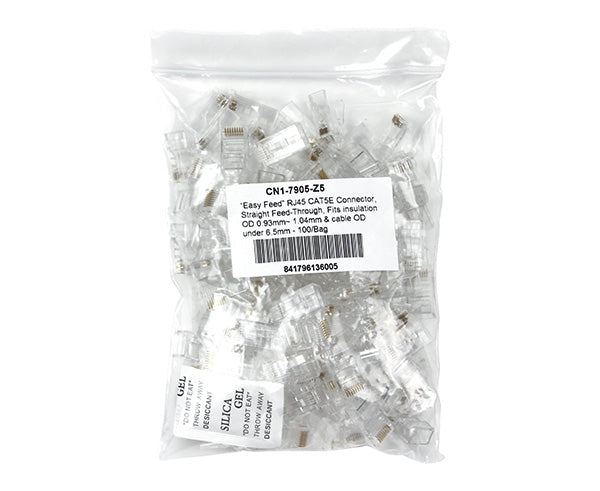

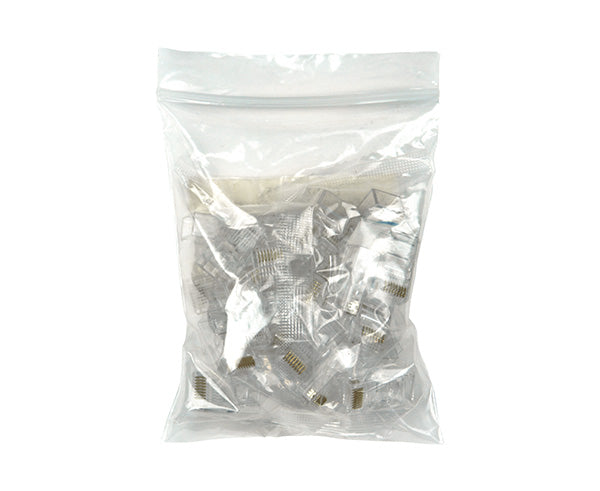

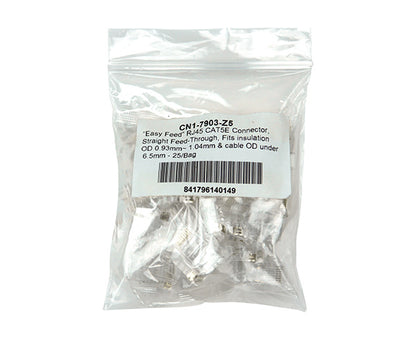

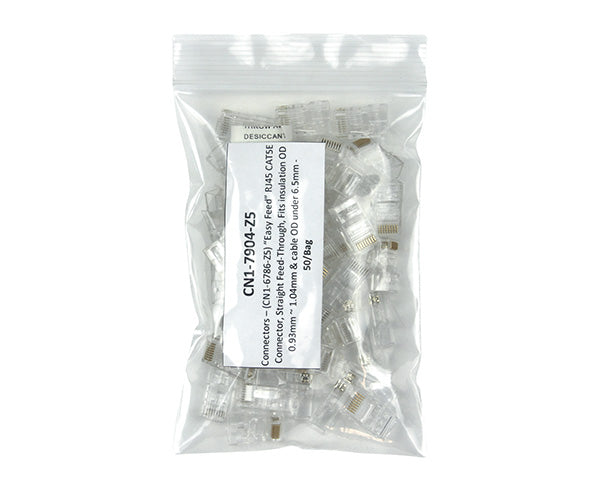

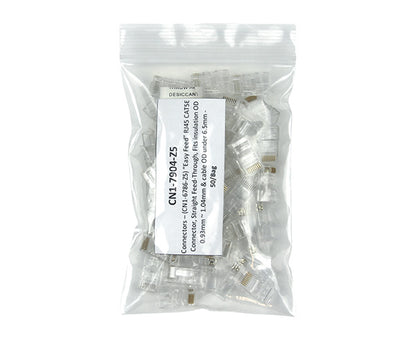

- Qty 1 - CAT5E Easy Feed RJ45 Connector (50 Pack, and/or 100 Pack)
