Former Part Number: CN1-6789-Z6S
Description
What is Easy Feed?

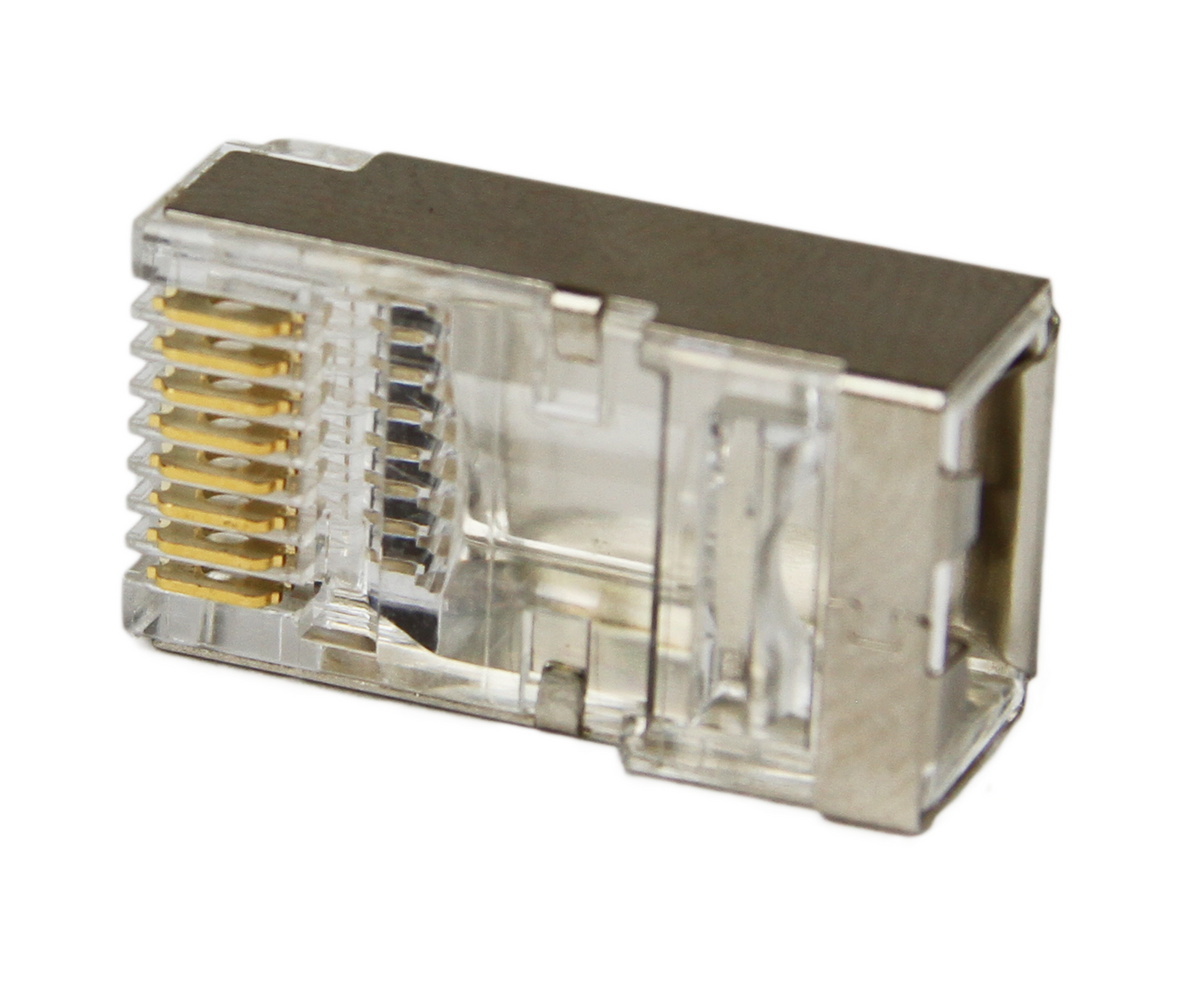

The Shielded Easy Feed pass through RJ45 CAT5e connector is the must have connector for all datacom and telecom installers. This RJ45 modular plug saves time and money with it's simple to use design.
Installers can easily slide all the conductors through the plug at once making it clear to verify proper wire alignment before termination. These Ethernet connectors place the twisted wires pairs straight inline to one another and prevent staggering.
Why Shield Your Network?
The shielding is wrapped completely around the back of the modular plug ensuring the drain wire will stay grounded. Shielding prevents unwanted crosstalk and EMI to maximize transfer speeds.
Connectivity is vital when installing a network so be sure to get these quality modular plugs on all your CAT5e, CAT6 Shielded Cables.
Looking For RJ45 Accessories?
Please consider us for any of your other networking needs. We've got bulk cable, many styles of keystone jacks, and other items. Keep in mind, you're going to need a crimping tool, and we've got em. Thank You.
Features
Features
- Pass Through CAT5e 8x8 Shielded RJ45 Modular Plug
- For Round Solid or Stranded Cable
- Compatible With 26 - 23 AWG Cables (OD Under 6.5mm)
- 50 Micro-inch Gold Plated Contacts
- Wires Inserted Through Front of Connector
- Strain Relief Bar Secures Connector Around Cable
- Faster Terminations With Reduced Scrap
- Simple One-piece Design
- UL Rated
- Transparent Housing for Easy Conductor Alignment
- Copper Alloy Shielding
- Operation Temperature: -20° - +50°C
- Fits an Insulation Diameter of 0.93mm - 1.04mm
- UL94V-0 Rated Housing for Superior Flame Resistance
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| ELECTRICAL SPECIFICATIONS | |
| UL Applications | 250 Volts AC Max., at 2 AMPS |
| Dielectric Withstanding Voltage | 1000 Volts AC |
| Insulation Resistance | 500 MΩ |
| Termination | Resistance 20mΩ Max |
| MECHANICAL SPECIFICATIONS | |
| Cable-To-Plug Tensile Strength | 20 Pound Min. |
| Durability | 1200 Mating Cycles |
| Operation Temperature Range | -20°C~+50°C |
| PHYSICAL CHARACTERISTICS | |
| Housing | Polycarbonate, UL94V-0 |
| Color | Transparent |
| Contact Blade | Copper Alloy |
| Conductor | Stranded & Solid Wire, 23 - 26 AWG |
| Wire Insulation OD | 0.93mm - 1.04mm |
| Gold Plating | 50µ” |
| Shielded Shell | Copper Alloy |
Additional Information
Easy Feed RJ45 Termination Guide: Step by Step Walkthrough
What’s In The Box
What’s In The Box
- Qty 1 - Easy Feed Shielded RJ45 Connector CAT5e (25 Pack, 50 Pack, and/or 100 Pack)
