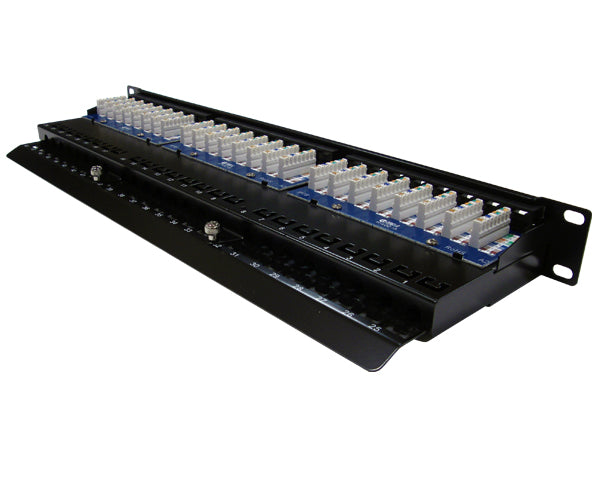

CAT5E Network 48-Port Patch Panel, 1U High Density, Strain Relief Support Bar

$125.99
SKU: PP1-4988/48P
UL Listed RoHS Compliant

Description

CAT5E Network 48-Port Patch Panel, 1U High Density, Strain Relief Support Bar

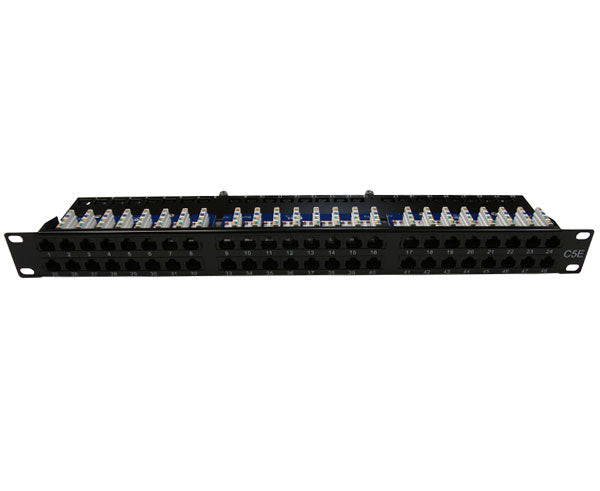

Our preloaded high-density CAT5E patch panel offers exceptional quality, meeting industry standards and maximizing the performance of your network. This CAT5E Patch Panel has an IDC panel that is 90°, a 48-port configuration and contains flush mounted RJ45 ports with a strain relief support bar

Product Quality

Product quality is essential to a reliable network. Our CAT5E high-density patch panels meet UL standards and are UL Listed. Additionally, this patch panel is RoHS compliant and also meets TIA/EIA 568A & 568B standards. The RJ45 ports mount flush against the panel's face which helps eliminate cable snags and creates a professional aesthetic. This CAT5E  ethernet patch panel is not only ideal for speed and efficiency but also great for cable organization.

Durability & Strength

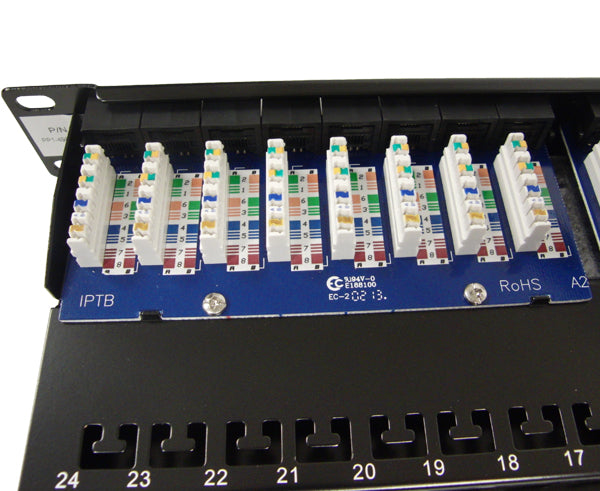

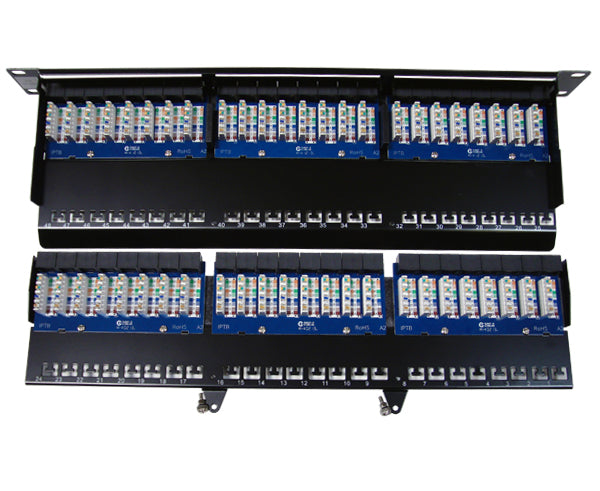

To ensure our CAT5E High-Density patch panel's durability and strength, we use solid 16 gauge steel with rounded edges. Our patch panel includes gold plated phosphor bronze RJ45 contacts that allow you to plug in your patch cable multiple times without diminishing signal quality.

CAT5E Network Products

To complete your CAT5E network we carry a full end to end solution including bulk CAT5E ethernet cables, CAT5E patch cables, CAT5E RJ45 modular plugs, network racks and enclosures, ethernet switches and wall plates. We also have a large assortment of cable tools, testers, and cable management accessories that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call or email us.

CAT5E Network 48-Port Patch Panel, 1U High Density, Strain Relief Support Bar

Features

Features

  • High Density CAT5E Patch Panel

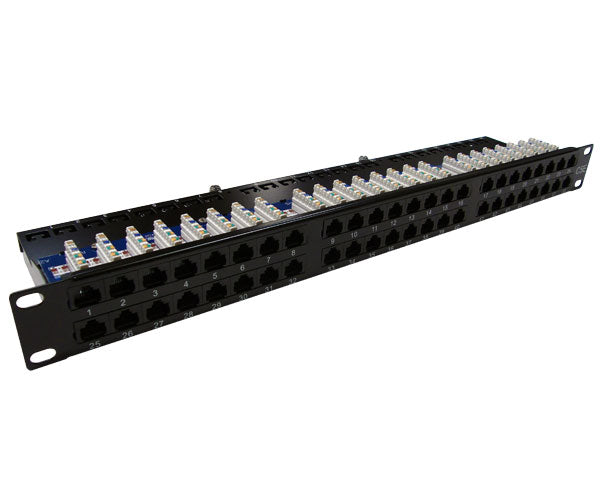

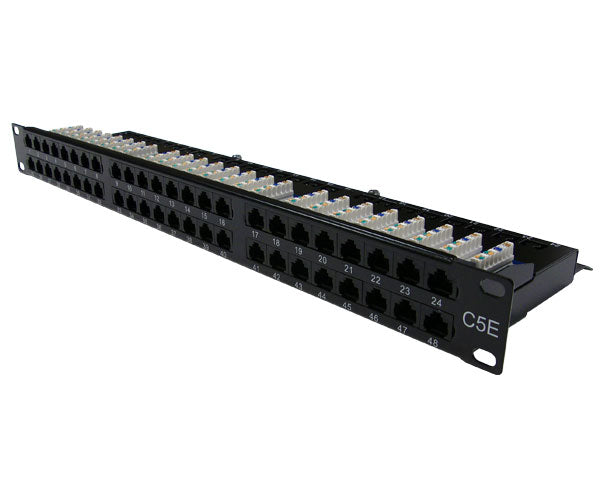

  • 48 Flush Mounted RJ45 Ports

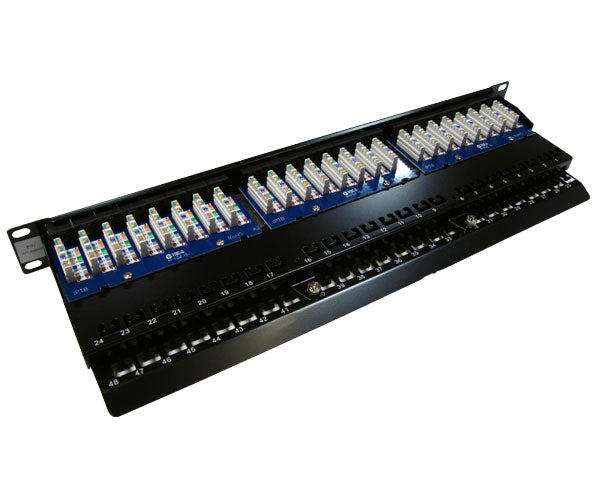

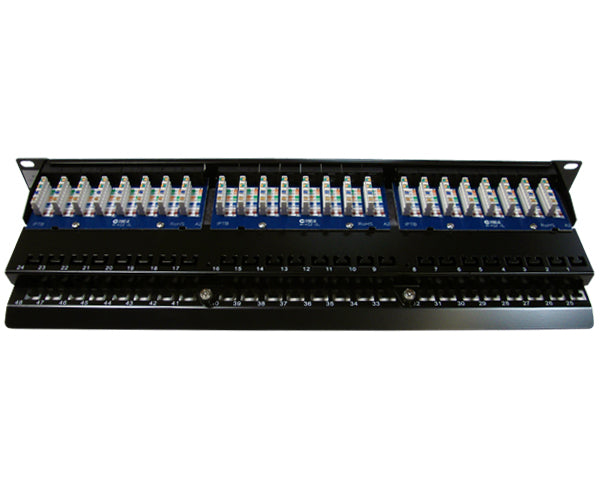

  • Strain Relief Support Bars Takes Weight Off Cables
  • Made From Solid 16 Gauge Steel with Rounded Edges
  • Suitable for 22-26 AWG Stranded and Solid CAT5E Cable
  • 19" Rack and Enclosure Mountable
  • TIA/EIA 568A and 568B Compliant
  • UL Listed
  • RoHS Compliant

Specifications

Specifications

Specifications
Configuration Unshielded High Density Patch Panel
Rack Unit 1U
Port Quantity 48 Ports
Length 19 Inches (482.6mm)
Height 1.75 Inches (44.45 mm)

Additional Information

Additional Information

A cable rack unit, U or RU is a unit of measure that describes the height of electronic equipment designed to mount within a 19-inch rack or a 23-inch rack. The following are some dimensions of rack heights that are common to computer equipment:

Rack Unit Dimensions
Half-U .875 in - 22.25 mm
1U 1.75 in - 44.45 mm
2U 3.5 in - 88.9 mm
3U 5.25 in - 133.35 mm
4U 7.0 in - 177.8 mm
5U 8.75 in - 222.25 mm
6U 10.5 in - 266.70 mm

High-Density - For networking projects where space is at a premium and efficiency is paramount, we supply CAT5E High-Density Patch Panels. Typically, these high-density patch panels feature more keystone jacks while still adhering to the industry-standard rack sizes.These CAT5E patch panels come in both 24 and 48 port versions with flush mounted jacks. It is designed from solid 16 gauge steel with rounded edges for safety.

Wallmount - This Patch Panel is able to be mounted to a surface or wall.

Rackmount - This Patch Panel is designed to be installed in a network rack as a component of a larger network system


CAT5E Patch Panel Accessories

Effective network organization can facilitate future maintenance of it, preventing costly downtime. CAT5E patch panels provide a centralized area to route Ethernet cables and patch cords throughout a building. Ours are manufactured to comply with exacting industry standards for networking. They come in 12, 24, 48, and 96 port versions to suit your requirements.

To learn more about our CAT5E Patch Panels please visit our overview page. Our Patch Panels can be combined with a wide array of products such as:

What’s In The Box

What’s In The Box

  • Qty 1 - CAT5E 48-Port Preloaded High Density Patch Panel

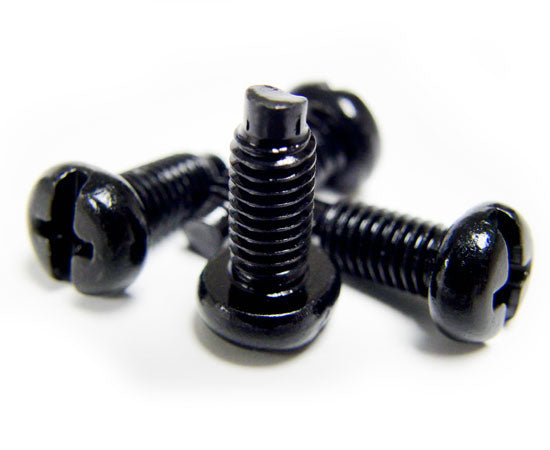

  • Qty 4 - Mounting Screws

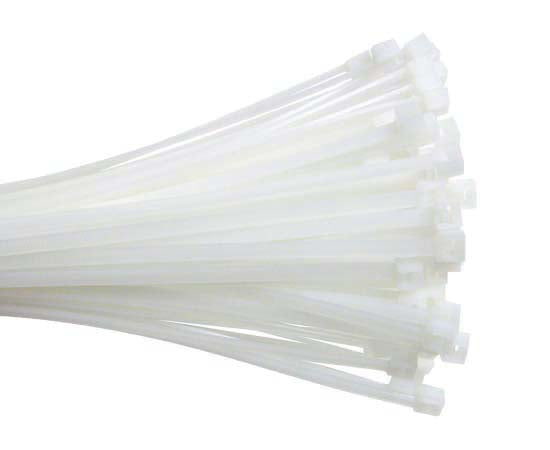

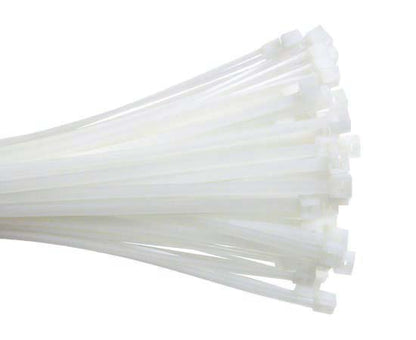

  • Qty 1 - Pack of Cable Ties
