Description
CAT5E Former Part Number: CN1-009-8CUL
CAT5E RJ45 Connector
Choose the Right Connector.
Your data network is only as strong as its weakest link. We hold our CAT5E RJ45 connectors to high standards with our customer and their network in mind. These CAT5E RJ45 modular plugs are built to fit 26-24 AWG solid and stranded cable. The operating temperature is -40°C - +70°C for this connector.
Looking For RJ45 Accessories?
Please consider us for any of your other networking needs. We've got bulk cable, many styles of keystone jacks, and other items. Keep in mind, you're going to need a crimping tool, and we've got em. Thank You.
Features
Features
- 50 Micro-inch Gold Plated Contacts
- Works on Stranded or Solid Cables
- Transparent Housing for Easy Conductor Alignment
- 8 Pins x 8 Conductors (8p8c)
- Fits 26 - 24 AWG Cable, Below 6.5mm OD
- The Operating Temperature is -40°C - +70°C
- Fits an Insulation Diameter of 0.96mm - 1.02mm
- UL94V-0 Rated Housing for Superior Flame Resistance
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| ELECTRICAL SPECIFICATIONS | |
| UL Applications | 250 Volts AC Max., at 2 AMPS |
| Dielectric Withstanding Voltage | 1,000 Volts AC |
| Insulation Resistance | 500 MΩ |
| Contact Resistance | 20mΩ Max After Environmental Testing |
| MECHANICAL SPECIFICATIONS | |
| Cable-to-Plug Tensile Strength | 20 Pound Min. |
| Durability | 200 Mating Cycles |
| Operation Temperature Range | -40°C~+70°C |
| PHYSICAL CHARACTERISTICS | |
| Housing | Polycarbonate, UL94V-0 |
| Color | Transparent |
| Contact Blade | Copper Alloy |
| Conductor | Stranded & Solid Wire, 24 - 26 AWG |
| Gold Plating | 50µ” |
Additional Information
Termination Guide
RJ45 Termination Guide: Step by Step Walkthrough
What’s In The Box
What’s In The Box

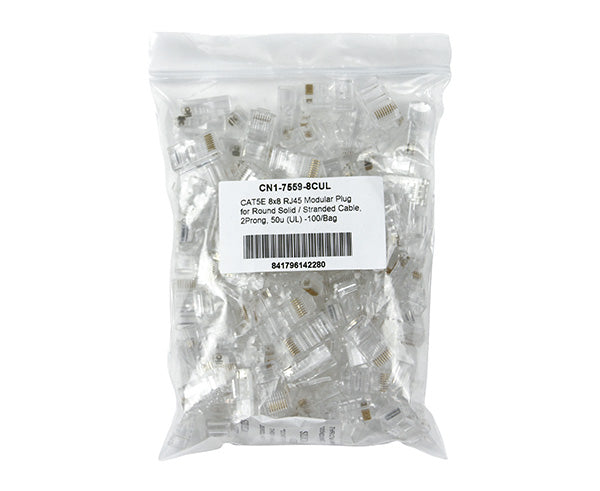

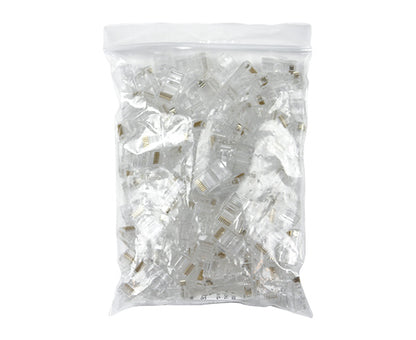

- Qty 1 - 25, 50, or 100 Pack of CAT5E Unshielded RJ45 Connectors
