Description
CAT6/6A Slim 28-30 AWG Solid and Stranded
The Slim RJ45 Connector fits both solid and stranded CAT6 and CAT6A Ethernet wire with a 28-30 gauge. It is an 8x8 3-prong modular plug with a polycarbonate housing and 50u gold plated contacts for superior conductivity.
Looking For RJ45 Accessories?
Please consider us for any of your other networking needs. We've got bulk cable, many styles of keystone jacks, and other items. Keep in mind, you're going to need a crimper, and we've got em. Thank You.
Features
Features
- For CAT6 and CAT6A Ethernet Cable with Insulation Diameter Ranging from 0.64mm - 0.70mm (025-.0276")
- Compatible with Cable OD under 3.9mm
- For 28-30 AWG Round Stranded Wire
- 50 Micro-inch Gold Plated Contacts
- Works with 28 - 30 AWG Cable
- -40°C to - 70°C Operating Temperature
- 1,200 Mating Cycles
- UL Listed, RoHS
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| ELECTRICAL SPECIFICATIONS | |
| UL Applications | 250 Volts AC Max., at 2 AMPS |
| Dielectric Withstanding Voltage | 500 Volts AC |
| Insulation Resistance | 100 MΩ |
| Termination | Resistance 20mΩ Max After Environmental Testing |
| MECHANICAL SPECIFICATIONS | |
| Cable-To-Plug Tensile Strength | 20 Pound Min. |
| Durability | 200 Matting Cycles |
| Operation Temperature Range | -20°C~+50°C |
| PHYSICAL CHARACTERISTICS | |
| Housing | Polycarbonate, UL94V-0 |
| Color | Transparent |
| Contact Blade | Copper Alloy |
| Conductor | Stranded Wire, 28 AWG |
| Gold Plating | 50µ” |
What’s In The Box
What’s In The Box

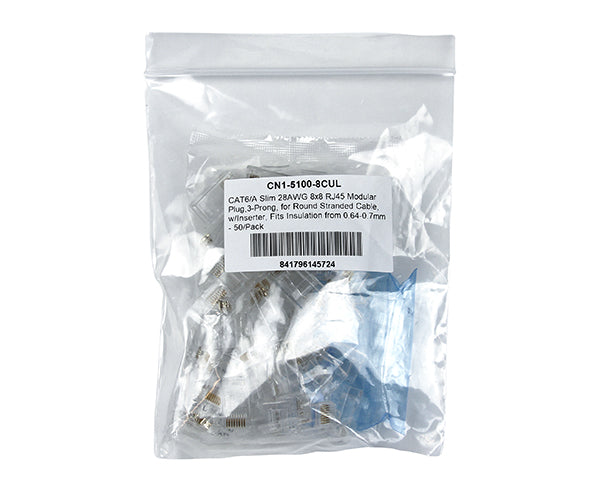

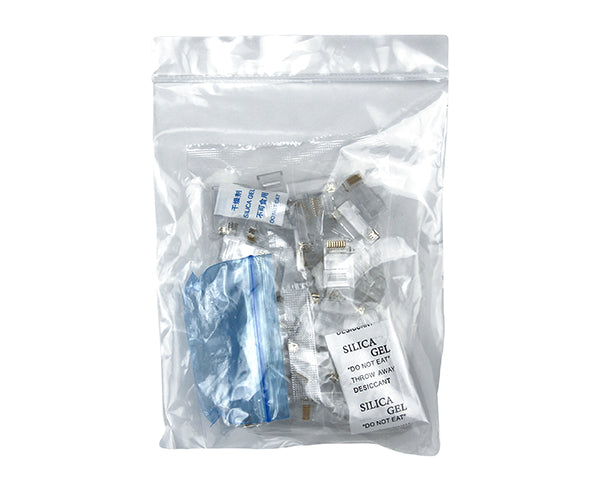

- Qty 1 - CAT6/6A Slim RJ45 Connectors - .64mm to .7mm ID
