Easy Feed RJ45 Connector - CAT6

$11.25
SKU: CN1-7909-Z6
Package Quantity

Former Part Number: CN1-6788-Z6

Description

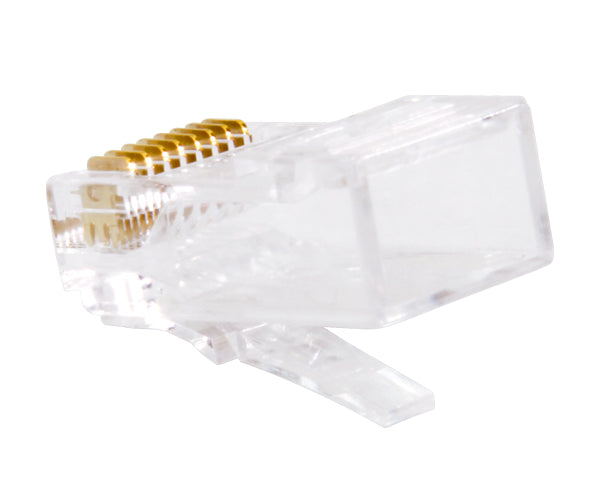

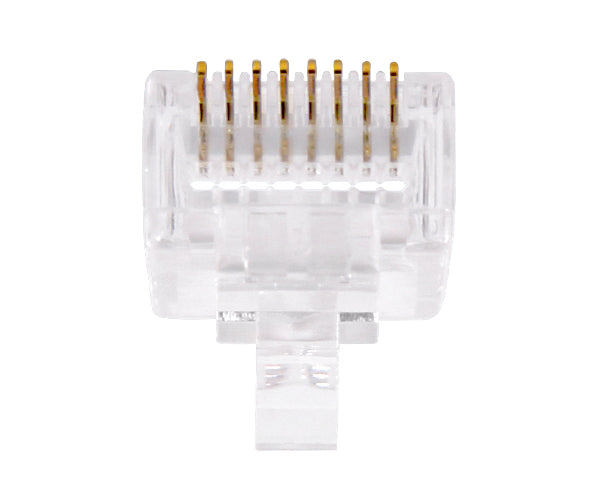

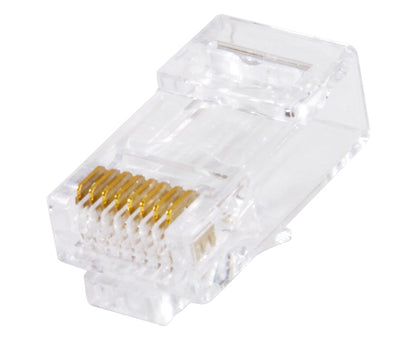

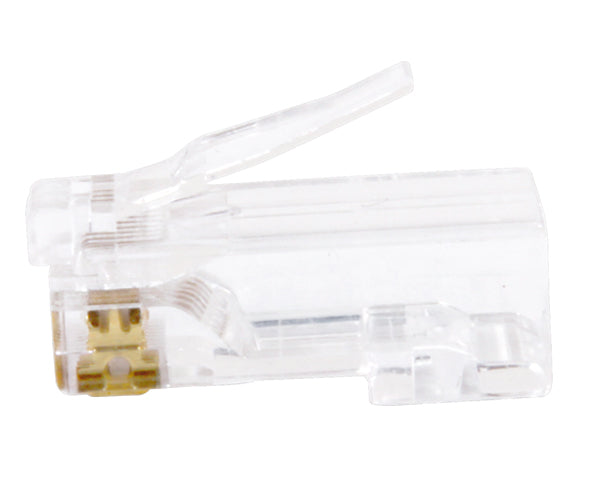

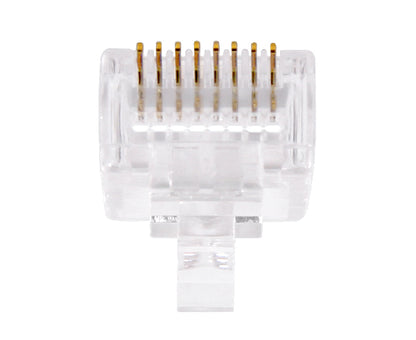

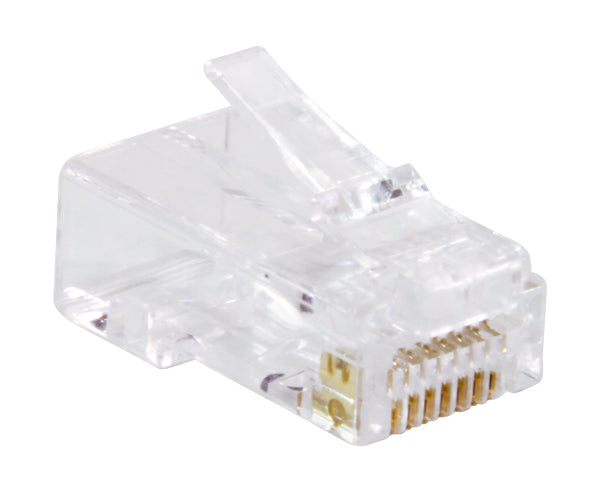

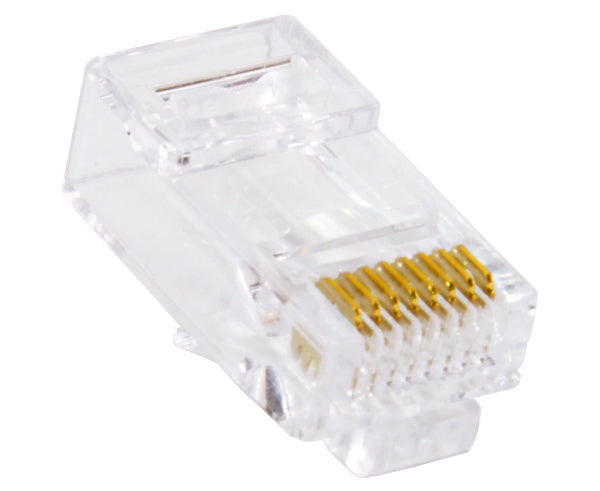

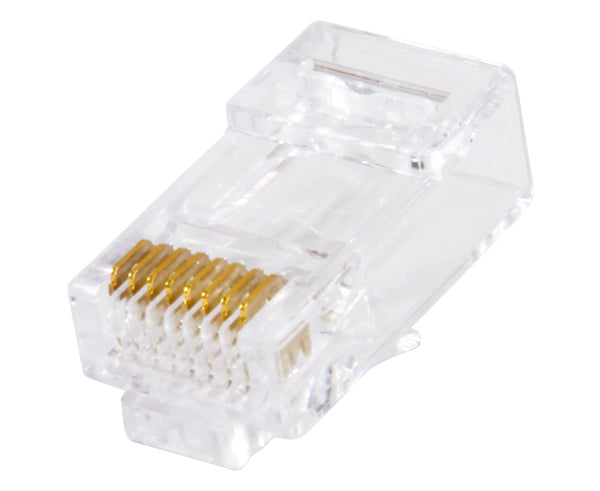

Easy Feed Unshielded RJ45 Connector - CAT6

The CAT6 Easy Feed RJ45 Modular Plug is the must have connector for all datacom and telecom installers. This RJ45 Plug saves time and money with it's simple easy to use design. Installers can simply slide all the conductors through the jack at once making it clear to verify proper wire alignment before termination. These connectors place the twisted wire pairs straight inline to one another and prevent staggering. Connectivity is vital when installing a network so be sure to get these quality plugs on all your CAT6 Cables.

Please consider us for any of your other networking needs. We've got bulk cable, many styles of keystone jacks, and other items. Thank You.

Parts of a RJ45 connector

Features

Features

  • Feed through CAT6 8x8 RJ45 modular plug
  • For round solid or stranded cable
  • Compatible with 23 AWG - 26 AWG cables (OD under 6.5mm)
  • 50 micro-inch gold plated contacts
  • Wires inserted through front of connector
  • Strain relief bar secures connector around cable
  • Faster terminations with reduced scrap
  • Simple one-piece design
  • UL rated
  • Transparent housing for easy conductor alignment
  • Operation temperature: -20°C - +50°C
  • Fits an insulation diameter of 0.93mm ~ 1.04mm

Specifications

Specifications

Additional Information

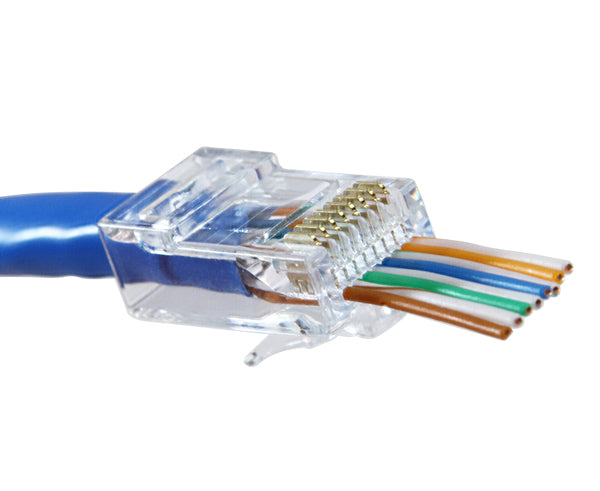

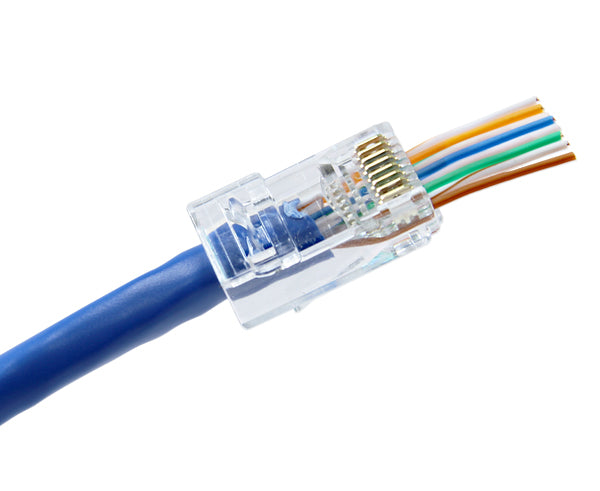

Terminating CAT6 Easy Feed RJ45 Connector

What's in the box?

What's in the box?

  • Qty 1 (25 Pack, 50 Pack, and/or 100 Pack) - CAT6 Easy Feed RJ45 Connector
