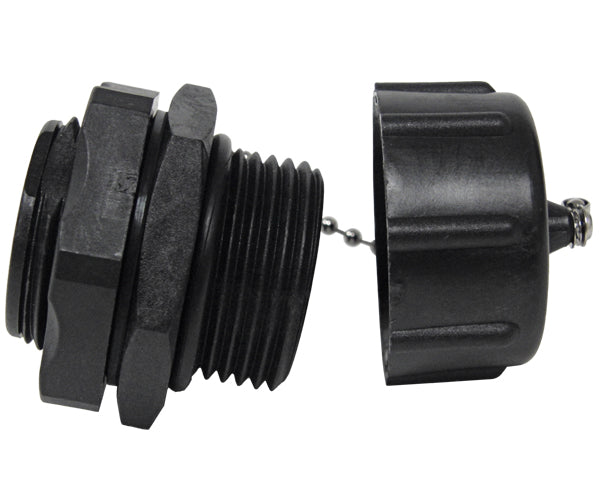

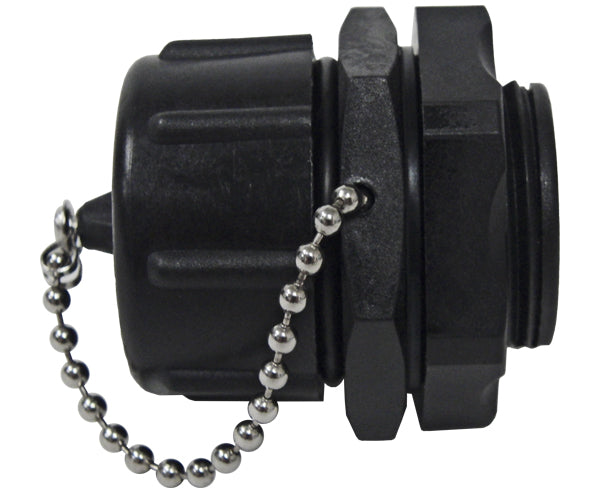

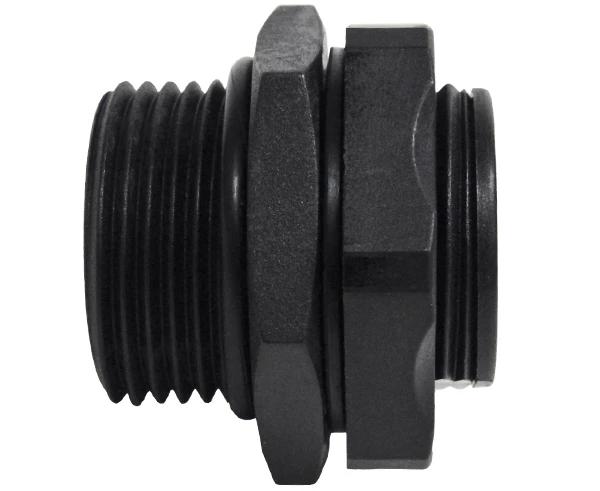

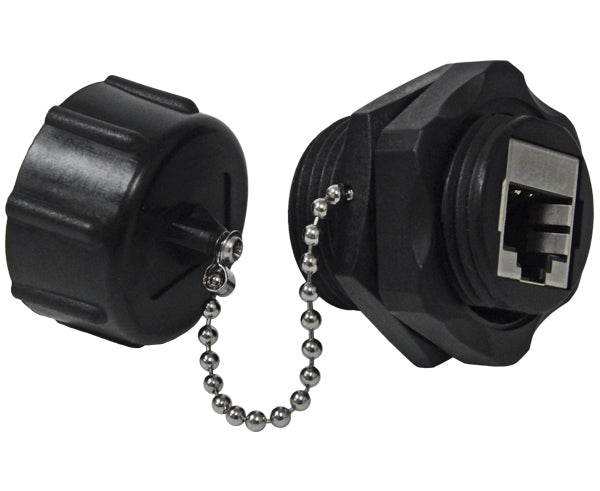

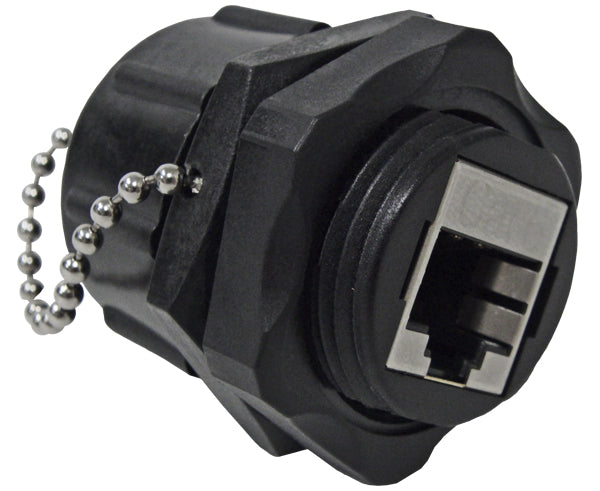

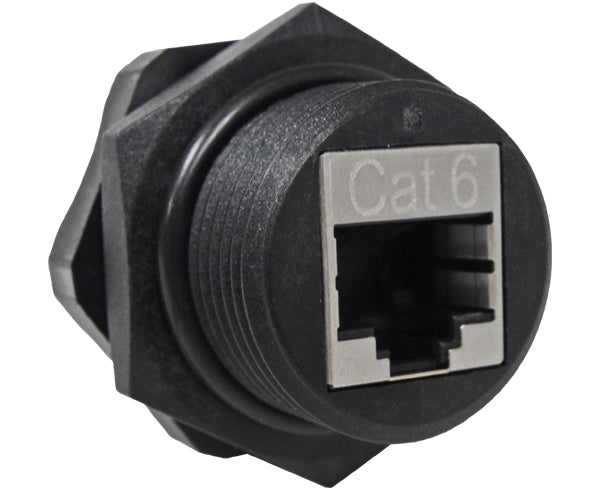

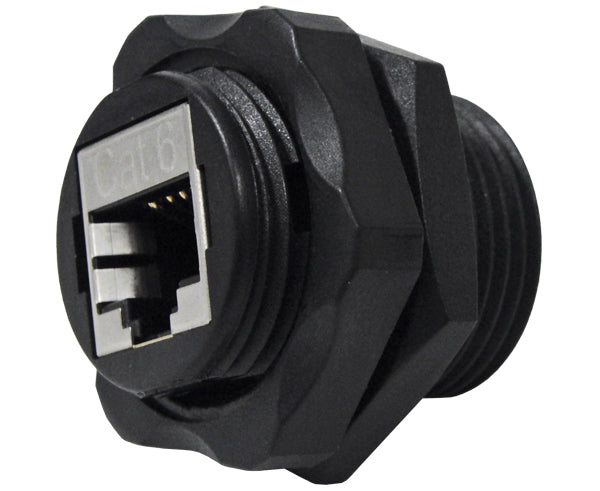

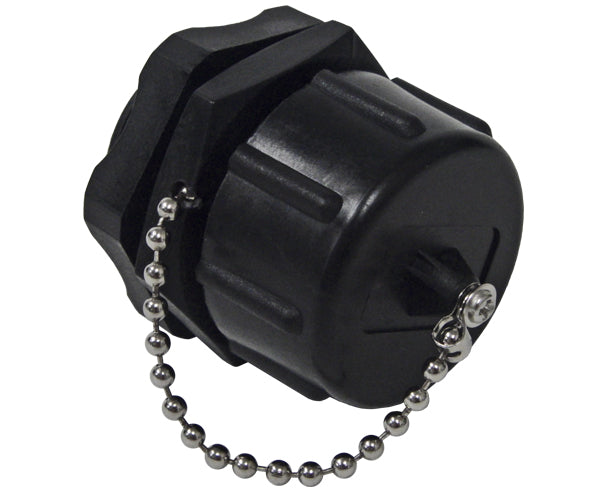

CAT6 Shielded Industrial Bulkhead Coupler, Water Sealed, Outdoor RJ45

$7.25
SKU: K65-2934-IP-SH
Style
Various lead times may apply to this product. Please contact us for more details.
UL ListedRoHS Compliant    IP Waterproof Rated

For more information about IP Ratings please see the Additional Information tab.

Description

Description

Our Industrial Grade Outdoor Female-Female Couplers are the perfect option for your networking applications that require equipment to be in wet or debris-filled environments. Our Outdoor Industrial Couplers mount flush against the wall plate and create a watertight seal. These Shielded Industrial bulkhead RJ45 Couplers feature a 50 micron gold plated contact pin and a female-female configuration. The Industrial Outdoor Couplers are ideal for protecting electrical equipment in the most messy of environments. Additionally, these Shielded Industrial Couplers are compatible with our Outdoor Industrial Wall Plates and are IP67 rated.

To complete your industrial outdoor CAT6 network we carry a full end to end solution including CAT6 outdoor bulk cables, CAT6 industrial bulkhead couplers, CAT6 industrial keystone jacks, CAT6 industrial patch cables, and CAT6 industrial wall plates . We also have a large assortment of tools, testers and cable management accessories that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call.

Features

Features

  • Shielded CAT6 Keystone Jack
  • Watertight Seal
  • Industrial Grade - IP67 Rated
  • Flush Mount
  • Easy Installation
  • 50 micron Gold Plated Contact Pin
  • RoHs Compliant

Specifications

Specifications

Additional Information

IP Ratings

The IP Code (or International Protection Rating) consists of the letters IP followed by two digits and an optional letter. This standardized rating system is designed to clarify misleading terms such as: "waterproof", "water resistant", etc. As defined in international standard IEC 60529, it classifies the degrees of protection provided against the intrusion of solid objects including: body parts, dust, accidental contact, and water in electrical enclosures.

First Digit: Solids
The first digit indicates the level of protection that the enclosure provides against access to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid foreign objects.

IP Number Protection Rating
0

Not protected
No protection against contact and ingress of objects

1

>50mm
Any large surface of the body, such as the back of the hand, but no protection against deliberate contact with a body part.

2

>12.5mm
Fingers or similar objects.

3

>2.5mm
Tools, thick wires, etc.

4

>1mm
Most wires, screws, etc.

5

Dust Protected
Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment; complete protection against contact.

6

Dust Tight
No ingress of dust; complete protection against contact.


Second Digit: Liquids
The second digit indicates the level of protection of the equipment inside the enclosure against harmful ingress of water.

IP Number Protection Rating
0

Not protected
No protection against contact and ingress of liquids.

1

Dripping Water
Dripping water (vertically falling drops) shall have no harmful effect.

2

Dripping Water when tilted up to 15º
Vertically dripping water shall have no harmful effect when the enclosure is tilted at an angle up to 15º from its normal position.

3

Spraying Water
Water falling as a spray at any angle up to 60º from the vertical shall have no harmful effect.

4

Splashing Water
Water splashing against the enclosure from any direction shall have no harmful effect.

5

Water Jets
Water projected by a nozzle (6.3mm) against enclosure from any direction shall have no harmful effects.

6

Powerful Water Jets
Water projected in powerful jets (12.5mm nozzle) against the enclosure from any direction shall have no harmful effects.

7

Immersion up to 1m
Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion).

8

Immersion beyond 1m
The equipment is suitable for continuous immersion in water under conditions which shall be specified by the manufacturer. Normally, this will mean that the equipment is hermetically sealed. However, with certain types of equipment, it can mean that water can enter but only in such a manner that it produces no harmful effects.


What's in the box?

What's in the box?

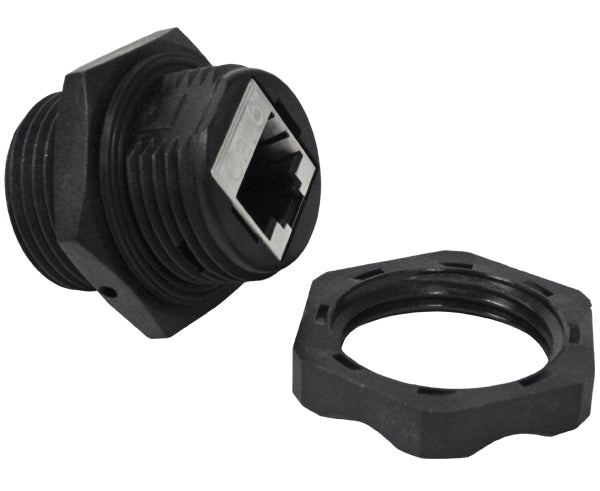

  • Qty 1 - CAT6 Industrial Outdoor Shielded Coupler
  • Qty 1 - Seal
  • Qty 1 - Screw on Nut
