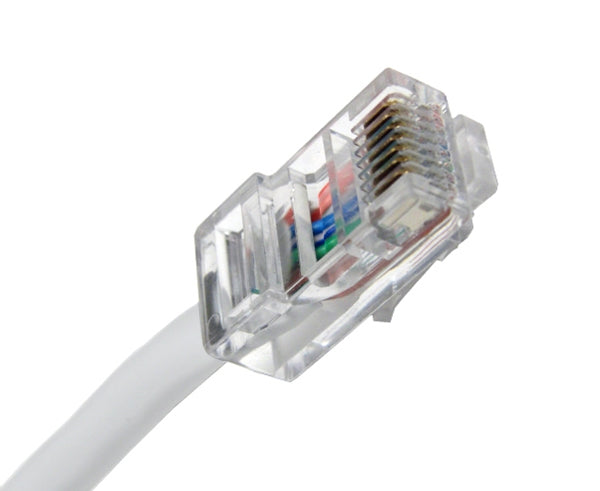

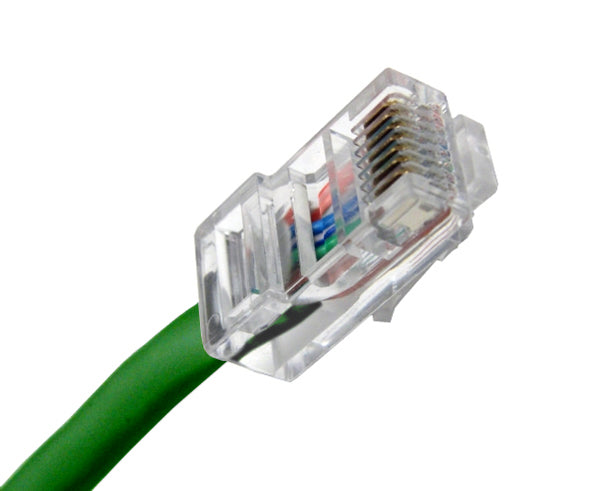

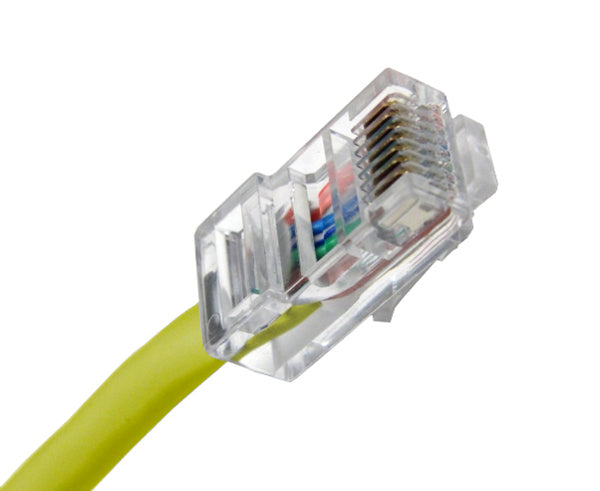

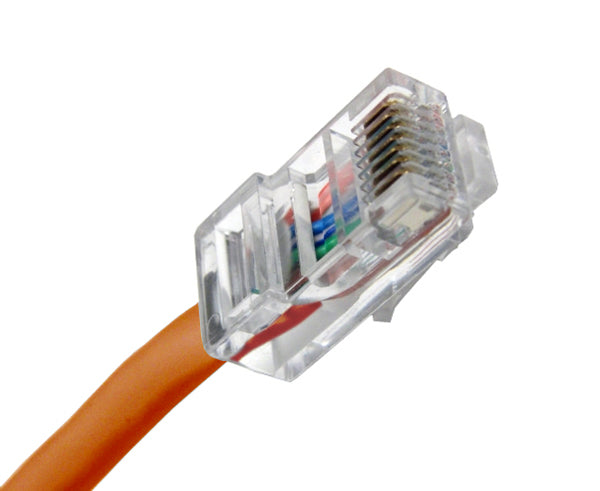

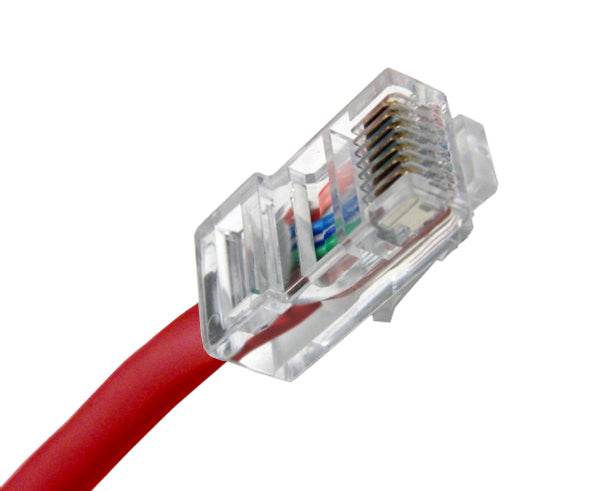

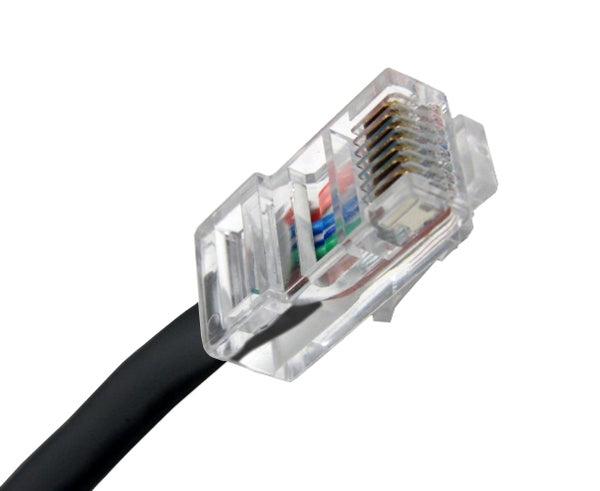

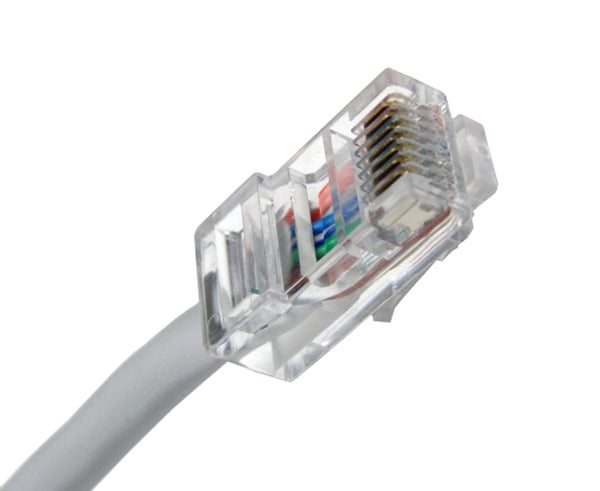

CAT6 Ethernet Patch Cable, Non-Booted, RJ45 - RJ45, 1ft
For a complete list of products compatible with our CAT6 Ethernet Patch Cables please click on the additional information tab.
CAT6 Ethernet Patch Cable Non-Booted 1ft
Our CAT6 Patch Cables are great for home and office applications including servers, printers, modems, routers, hubs, switch boxes, computers, game consoles, VoIP phones, and more. Our Cat6 Ethernet patch cables connect computers with devices such as cable modems, routers, patch panels, hubs, and switches.
Product quality is essential to a reliable network, our CAT6 patch cables are durable, flexible and well-constructed. This patch cable features a PVC jacket, stranded bare copper wire and RJ45 connectors with gold-plated contacts.
Durability & Strength
To make sure we are supplying our customers with high-quality Ethernet cables, we meet and/or exceed CAT6 ANSI/TIA-568-C.2 standards.
CAT6 Network Products
To complete your CAT6 network we carry a full end to end solution including CAT6 Bulk Cables, CAT6 modular plugs, CAT6 keystone jacks, Blank Patch Panels, CAT6 Patch Panels, and wall plates. We also have a large assortment of Tools, Testers and Cable Management Accessories that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call or email us.
- High-Performance Data Communications Cable
- Category 6 Patch Cable
- Suitable For High-Speed Data Applications
- Designed for Indoor Installations
- Category-6 Unshielded Twisted Pair (UTP) Cable
- Stranded Copper Conductors
- Excellent Attenuation And Crosstalk Characteristics
- Assembly Type, No Boot
- Gold Plated Contacts
- RoHS Compliant
- 1000BASE-T Gigabit Ethernet
- 10BASE-T, 100BASE-TX Fast Ethernet (IEEE 802.3)
- 100 VG - Any LAN (IEEE802.12), 155/622 Mbps ATM
- Broadband Video
- Voice, T1, ISDN
|Pair 2 - Orange White/Orange||Pair 3 - Green White/Green|
|Pair 1 - Blue White/Blue||Pair 4 - Brown White/Brown|
- CAT6 ANSI/TIA-568-C.2 Standards
- ISO/IEC 2nd Edition 11801 Class E
- CENELEC EN 50173-1
- IEC 61156-6, CENELEC EN 50288-6-2 for patch cable
- Flame Retardancy is Verified According to IEC 60332-1-2
- We Implemented RoHS Compliance for the Requirement of European Union Issued Directive 2002/95/EC
Construction & Characteristics
|Thickness||Nominal: 0.23 mm|
|Diameter||Nominal: 1.05 mm|
|Colors||Blue / White-Blue / Orange / White-Orange / Green / White-Green / Brown / White-Brown|
|Unaged Elongation||Min. 300%|
|Unaged Tensile Strength||Min. 1.683 Kgf/mm^2|
|Jacket||Material||Flame Retardant PVC|
|Thickness||Nominal: 0.50 mm|
|Diameter||Nominal: 5.8 mm|
|Color||Black / White / Blue / Gray / Green / Red / Orange / Yellow / Purple|
|Unaged Elongation||Min. 100%|
|Unaged Tensile Strength||Min. 1.407 Kgf/mm^2|
|Aging at 100˚C For 168Hrs.||Min. elongation retention: 50%|
|Min. tensile strength retention: 75%|
We supply CAT6 patch cables in a variety of jacket colors and in both shielded and unshielded versions. Our CAT6 patch cables are manufactured with superior quality build materials to ensure our products meet and/or exceed Category standards.
We offer Snagless network patch cables, these cables have a small flap that protects the RJ-45 connectors from snagging on other items when you are trying to pull the cable through places. Typically these cables are used in applications where there is a high insertion cycle, like an easy-to-access space.
We offer network patch cables with Molded Boots, also commonly called a bend relief. These patch cables provide added support to the transition point where a flexible cable connects to a rigid connector or connection point. A properly designed strain relief boot will prevent force applied to the exterior of a cable from being transferred to the electrical terminations within the connector or device which can lead to failure.
Our CAT6 Ethernet Patch Cables are compatible with the following items:
- CAT6 Bulk Cables
- CAT6 Modular Plugs
- CAT6 Keystone Jacks
- Blank Patch Panels
- CAT6 Patch Panels
- Wall Plates
- Cable Management Accessories
What's in the Box
- Qty 1 - 1ft CAT6 Ethernet patch cable Non-Booted Assembly-Type
