Description

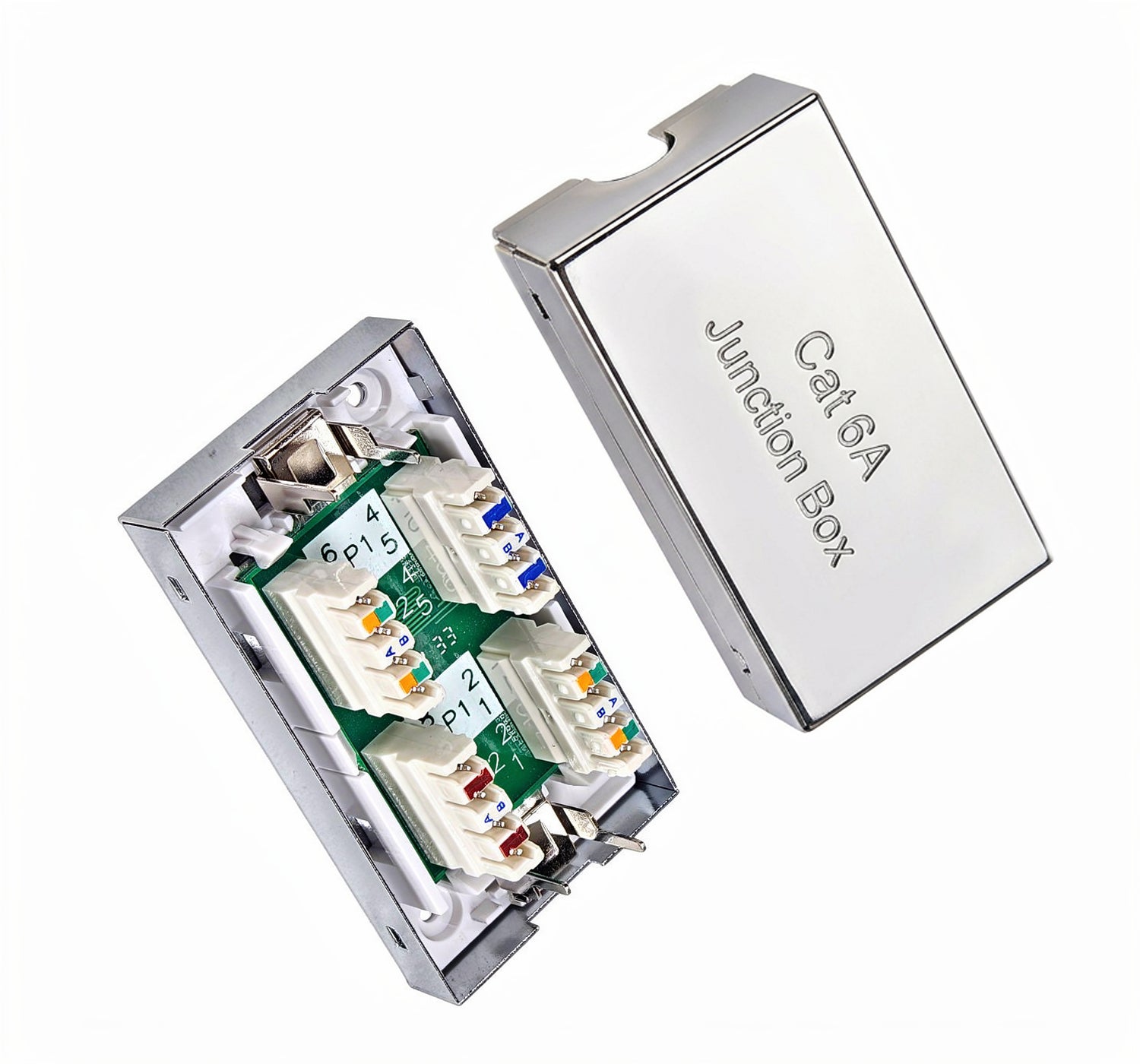

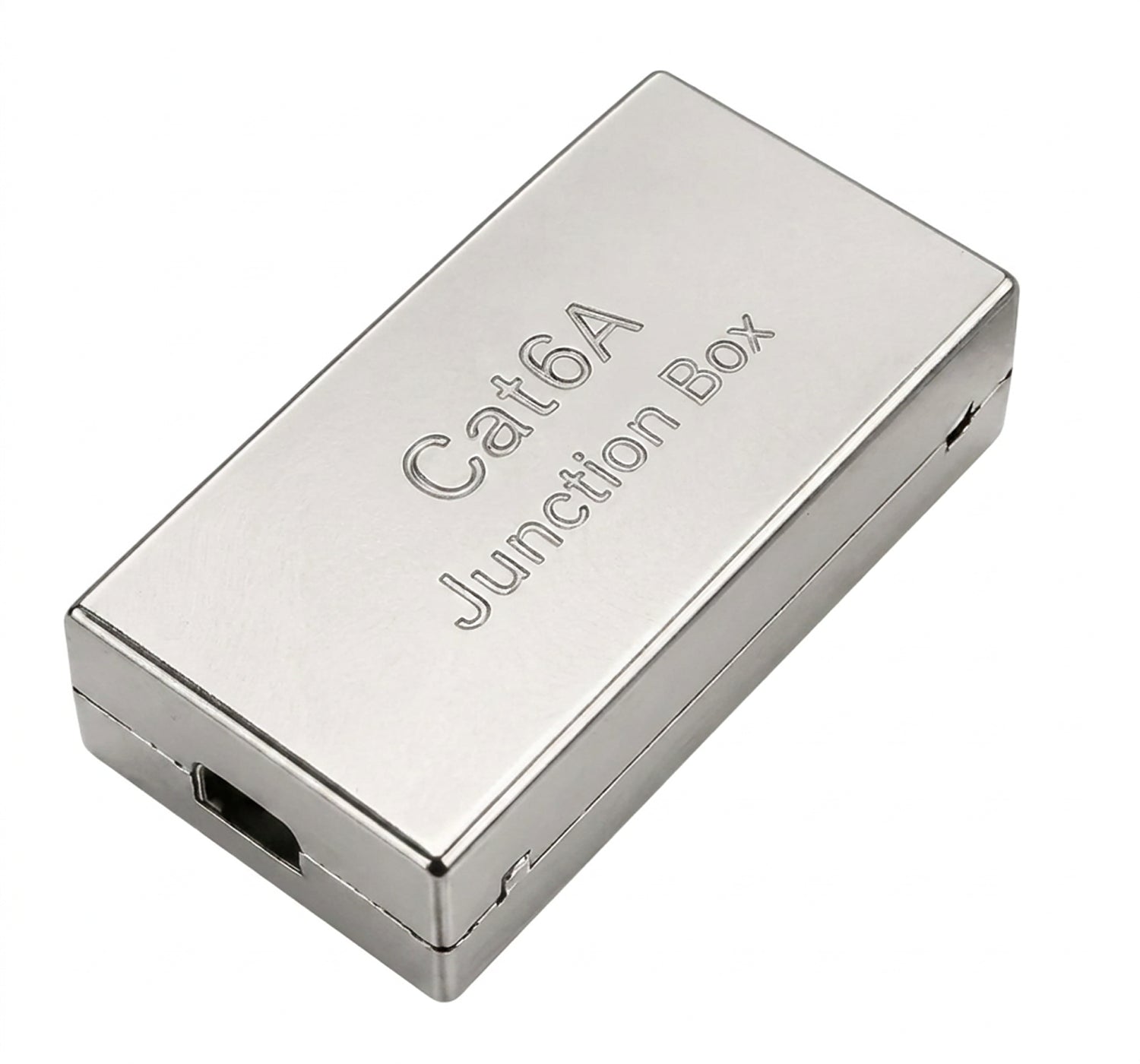

CAT6A Junction Box, Shielded
Junction Box - Shielded CAT6A, Punch Down, Fits 22-26 AWG Solid and Stranded Wire, UL 94V-2, Nickle Plated Housing
Features
Features
- Cat.6A junction box designed for high-performance Ethernet networking applications
- Supports both T568A and T568B wiring configurations with wiring diagrams printed on the IDC
- Compatible with 22–26 AWG solid and stranded wire
- IDC supports both 110 and Krone punch-down tools
- Cat.6A transmission performance complies with ANSI/TIA/EIA 568 C.2
- Durable metal cover with nickel-plated finish for added protection
- Designed for reliable cable termination and connection
- Suitable for structured cabling and network installation applications
- Operating temperature range of -10°C to 60°C
- Compact design for convenient installation and cable
management
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CATEGORY | CAT.6A |
| WIRING STANDARDS | T568A / T568B |
| CABLE COMPATIBILITY | 22–26 AWG SOLID AND STRANDED WIRE |
| IDC COMPATIBILITY | 110 / KRONE PUNCH-DOWN TOOLS |
| TRANSMISSION STANDARD | ANSI/TIA/EIA 568 C.2 |
| OPERATING TEMPERATURE | -10°C TO 60°C |
| METAL COVER MATERIAL | SPCC, 0.5 MM THICKNESS, NICKEL PLATED |
| IDC HOUSING MATERIAL | PC, UL 94V-2 |
| IDC TERMINAL MATERIAL | PHOSPHOR BRONZE, TIN PLATED |
| CABLE HOLDER MATERIAL | PHOSPHOR BRONZE, 0.5 MM THICKNESS, NICKEL PLATED |
| MAIN HOUSING MATERIAL | ABS + PC, UL 94V-0 |
| PCB MATERIAL | FR4, UL 94V-0 |
| DIMENSIONS (L × W × H) | 62.8 × 34.9 × 24 MM |
| DURABILITY | SUITABLE FOR 22–26 AWG STRANDED AND SOLID WIRE |
| COMPLIANCE | ANSI/TIA/EIA 568 C.2 / ISO/IEC 11801 |
Additional Information
To learn more about our Surface Mount Boxes here is a link to a page containing more information on our premium Surface Mount Boxes.
What's in the Box
What’s in the Box
- Qty 1 - CAT6A Junction Box, Shielded
