CAT6A Outdoor Bulk Ethernet Cable, Direct Burial Solid Copper UTP UV, Gel Filled, 23 AWG

$295.99
SKU: C6AXF-1504
ETL ListedRoHS Compliant ISO 9001

Description

CAT6A Outdoor Bulk Direct Burial Gel Filled Cable

Our Outdoor Unshielded Direct Burial Gel-Filled CAT6A Cable is ideal for your outdoor voice, data and video networking applications. Whether you are wiring your office building or an entire campus, we have the network solution that is right for you.

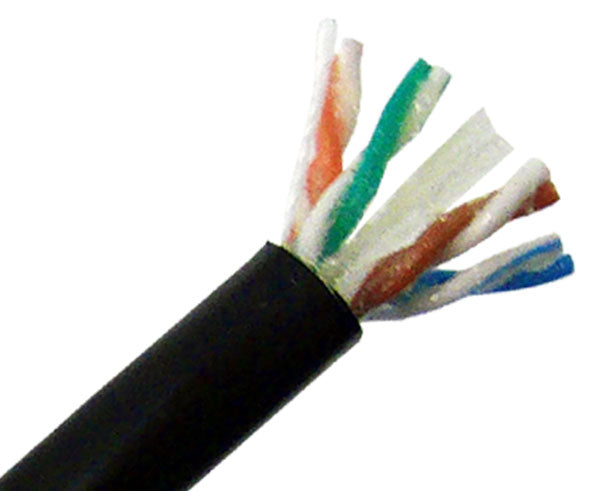

This Outdoor Direct Burial CAT6A Cable is the perfect fit for installations where the cable will be buried under ground in conduit. This cable's 8 conductors (4-Pairs) are solid bare copper with a high density polyethylene (HDPE) insulation and a low density polyethylene (LDPE) Jacket. For added moisture protection this cable includes a Gel-filling that repels water keeping it out of the cable and away from the conductors. Our Category 6A Gel-Filled Direct Burial Outdoor Cable is designed for outdoor direct burial LAN applications, making it ideal for moist areas that are susceptible to water. This cable is also tested up to speeds of 750MHz.

To make sure we are supplying our customer with high quality bulk Ethernet cables our cable have to meet and/or exceed CAT6A ANSI/TIA-568.2-D standards. Our CAT6A Outdoor cable is also ETL Verified and is RoHS Compliant.

Technical Diagram

CAT6A Direct Burial Water Blocking Gel Filled Cable Diagram

CAT6A Bulk Cable Options



CAT7 & Cat7A Bulk Cable Options

Solid Copper
CAT7
Solid Copper
CAT7A
Indoor
S/FTP
Indoor/Outdoor
S/FTP
Indoor/Outdoor
S/FTP
Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.

Features

Features

  • High-Performance Data Communications Cable
  • CAT6A Outdoor Direct Burial, Outside Plant
  • Suitable For 750MHz High-Speed Data Applications
  • Designed for Outdoor Installations (CMX) and are UV Rated
  • Unshielded Twisted Pairs (UTP)
  • 4-Pair Easily Identified Color Striped Pairs
  • 23 AWG Solid Bare Copper Conductors
  • Excellent Attenuation and Crosstalk Characteristics
  • Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 Specifications
  • ETL Verified
  • RoHS Compliant
  • Sequential Length Markings on Jacket

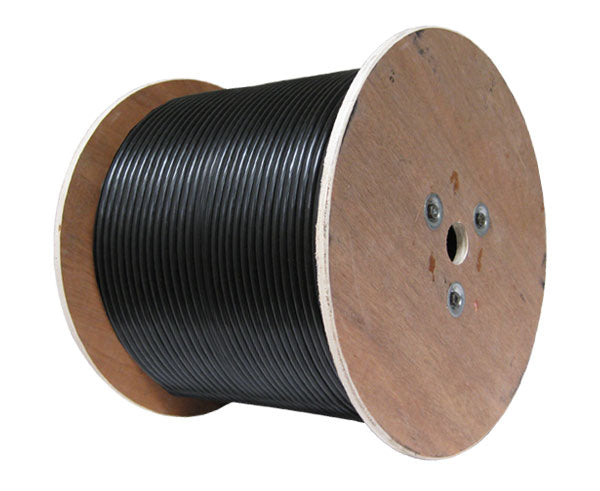

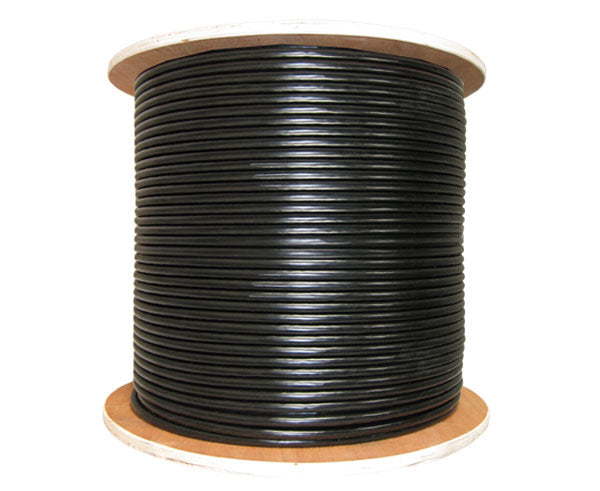

  • Supplied on a 1000' Wooden Spool

Specifications

Specifications

Additional Information

Additional Information

Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.

CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.

To learn more about our Category 6 Outdoor Gel-Filled Direct Burial Ethernet Cable please visit our product overview page.

Our CAT6 Outdoor Gel-Filled Direct Burial Ethernet Cable is compatible with our:

What’s In The Box

What’s In The Box

  • CAT6A Outdoor Direct Burial Unshielded Ethernet Cable With A Black Jacket, 1000ft On A Wooden Spool
