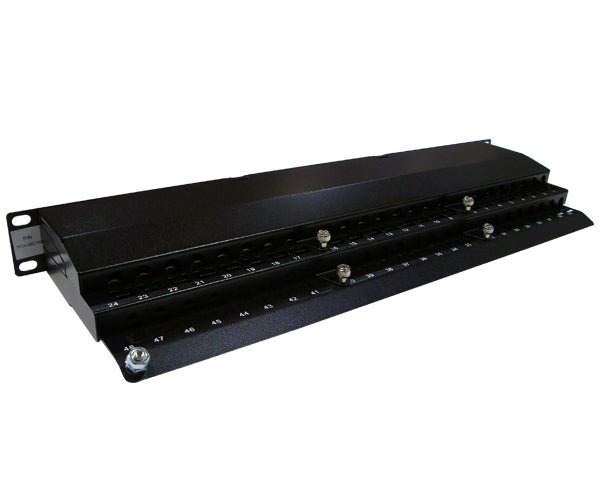

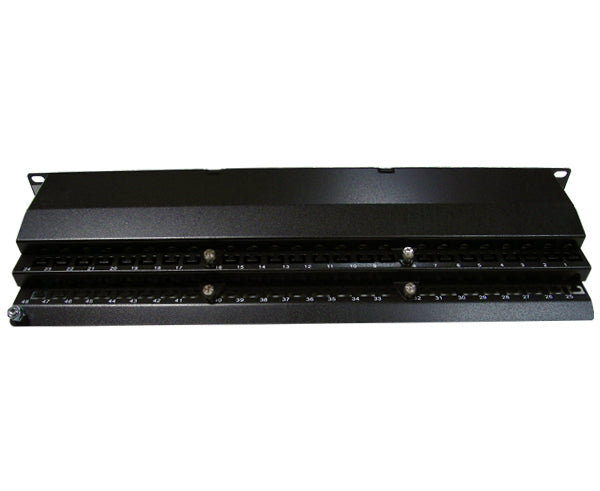

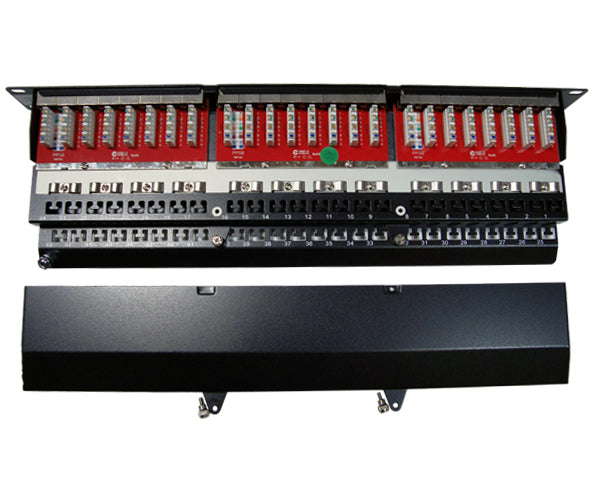

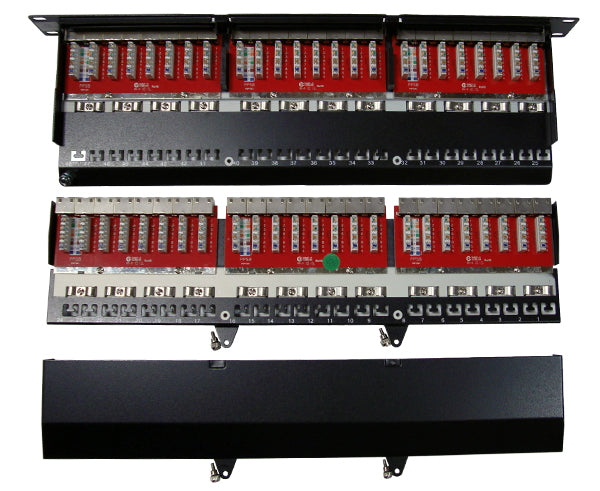

Shielded CAT6A Network 48-Port Patch Panel, 1U Server Rack Mount

$209.99
SKU: PP2A-4992/48S
UL Listed RoHS Compliant

Description

Shielded CAT6A Network 48-Port Patch Panel, 1U Server Rack Mount

Our preloaded shielded 48-port patch panel CAT6A is perfect for protecting your high-speed network from electromagnetic interference environment especially when the copper cables run near power cables. Additionally, this CAT6A patch panel has a 48 Port configuration and contains flush mounted RJ45 ports. Our patch panels meet and exceed industry standards, ensuring safety and maximizing the performance of your network speed.

Product Quality

Product quality is essential to a reliable network. Our CAT6A patch panel meets UL standards and is UL Listed. Additionally, this patch panel is RoHS compliant and also meets TIA/EIA 568A & 568B standards. The RJ45 ports mount flush against the panel's face which helps eliminate cable snags and creates a professional aesthetic. This CAT6A Patch Panel is not only ideal for speed and efficiency but also great for a better cable management.

Durability & Strength

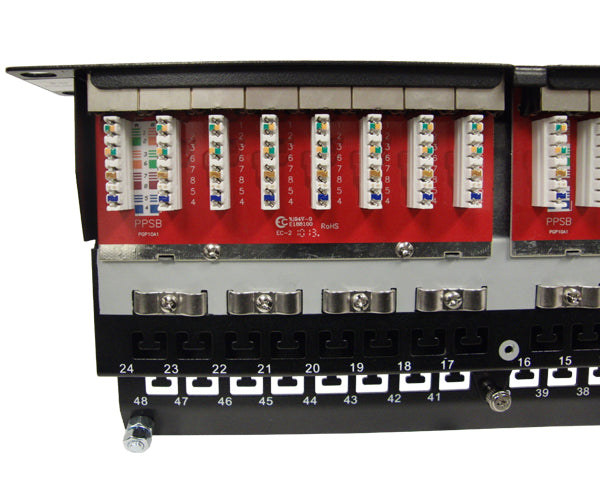

To ensure our patch panel CAT6A's durability and strength, we use SPCC steel. Our patch panel includes gold plated phosphor bronze RJ45 contacts that allow you to plug in your patch cable multiple times without diminishing the quality of the signal.

CAT6A Network Products

To complete your CAT6A network we carry full end to end solutions including CAT6A bulk ethernet cables, CAT6A patch cables, CAT6A RJ45 modular plugs, CAT6A keystone jacks, network racks and enclosures, Ethernet switches and wall plates. We also have a large assortment of cable tools, LAN testers and cable management accessories that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call or email us.



Shielded CAT6A Network 48-Port Patch Panel, 1U Server Rack Mount


Features

Features

  • Premium Shielded CAT6A Patch Panel

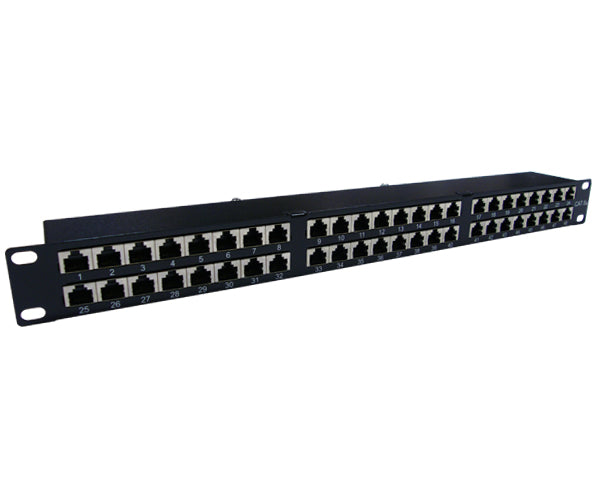

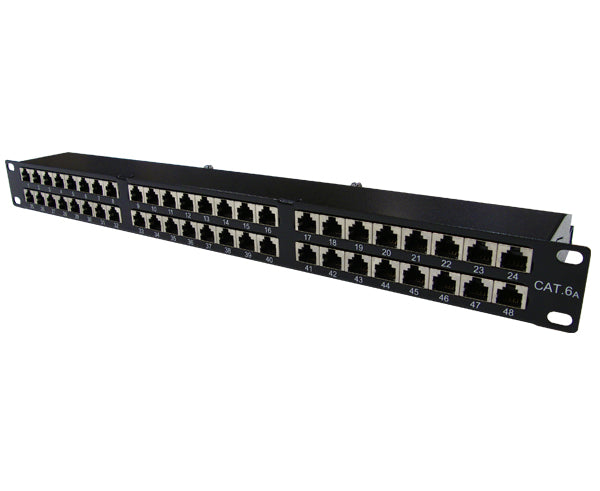

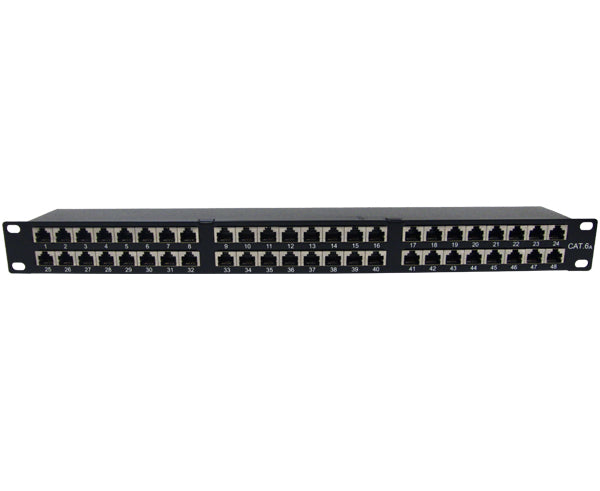

  • 48 Flush Mounted RJ45 Ports
  • Made From Solid 16 Gauge Steel With Rounded Edges
  • Suitable For 22-26 AWG Stranded And Solid CAT6 Cable
  • 19" Rack And Enclosure Mountable
  • Includes Cable Ties, Mounting Screws, Ground Wire And Instructions
  • TIA/EIA 568A And 568B Compliant
  • UL Listed
  • RoHS Compliant

Specifications

Specifications


Port Quantity 48 Ports
Length 19 Inches (482.6mm)
Height 1U (1.75 in - 44.45 mm)
Depth 4.3 Inches (109 mm)
Weight 6 lbs.
Panel Material SPCC 1.5 mm steel with black paint
Connection Type RJ45 - 8 Pins - 8 Conductors

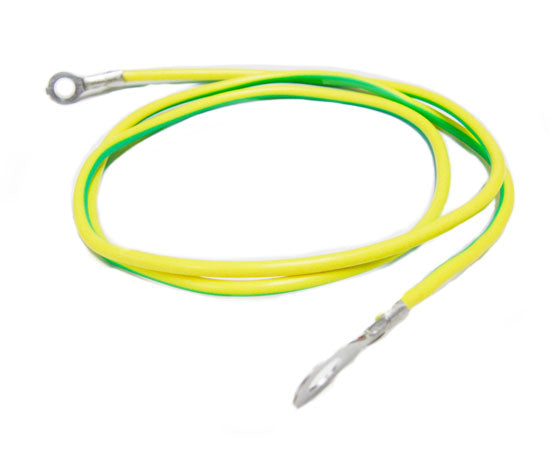

Ground Wire 18 AWG, 40 cm long

Additional Information

Additional Information

A cable rack unit, U or RU is a unit of measure that describes the height of electronic equipment designed to mount within a 19-inch rack or a 23-inch rack. The following are some dimensions of rack heights that are common to computer equipment:

Rack Unit Dimensions
Half-U .875 in - 22.25 mm
1U 1.75 in - 44.45 mm
2U 3.5 in - 88.9 mm
3U 5.25 in - 133.35 mm
4U 7.0 in - 177.8 mm
5U 8.75 in - 222.25 mm
6U 10.5 in - 266.70 mm

High-Density - For networking projects where space is at a premium and efficiency is paramount, we supply CAT6A High-Density Patch Panels. Typically, these high-density patch panels feature more RJ45 ports while still adhering to the industry-standard rack sizes. These CAT6A patch panels come in both 24 and 48 port versions with flush mounted jacks. It is designed from solid 16 gauge steel with rounded edges for safety.

Wallmount - This Patch Panel is able to be mounted to a surface or wall.

Rackmount - This Patch Panel is designed to be installed in a network rack as a component of a larger network system.


CAT6A Patch Panel Accessories

Looking to future proof your high-speed networks management? You're going to need connectivity solutions on par with your best high-speed ethernet cable to maintain that level of performance. Our CAT6A patch panels are manufactured with metallic shielding to protect the RJ45s from EMI (Electro Magnetic Interference) environment. This helps ensure optimum signal quality of your networks.

To learn more about our CAT6A Patch Panels please visit our overview page. Our Patch Panels can be combined with a wide array of products such as:

What's in the box?

What's in the box?

  • Qty 1 - Shielded CAT6A 48 Port Patch Panel, 1U High-Density
  • Qty 1 - Grounding Wire, 40 cm long

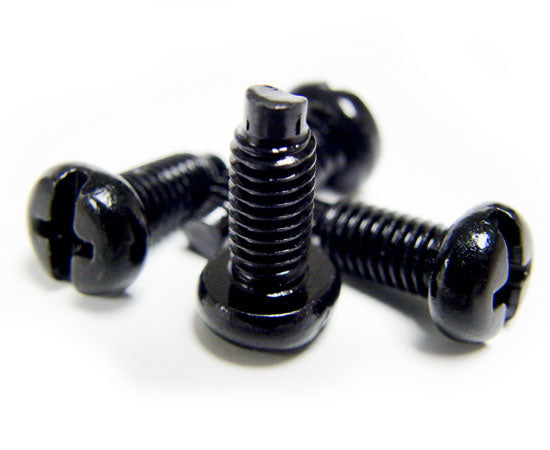

  • Qty 4 - Rack Mounting Screws

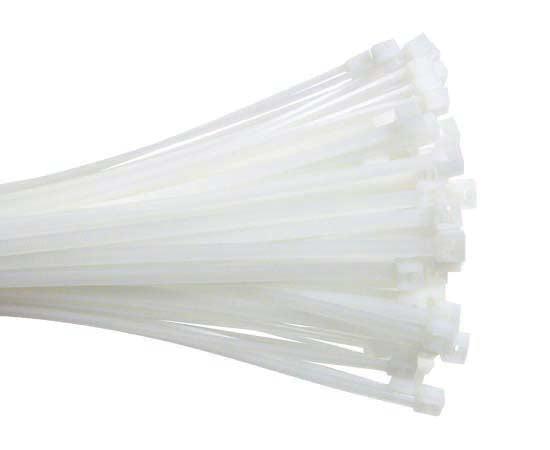

  • Qty 48 - 3" Zip ties
