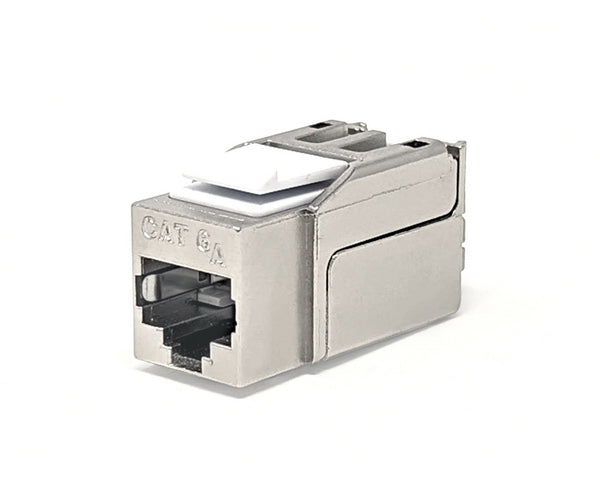

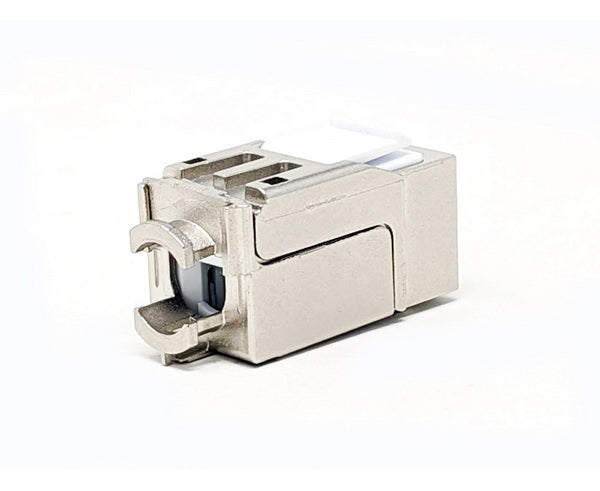

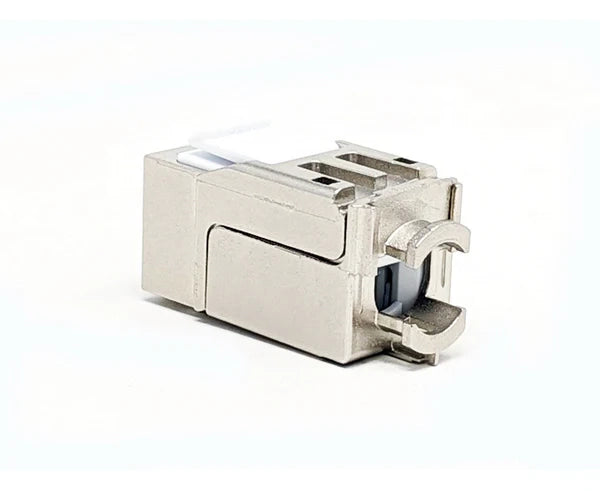

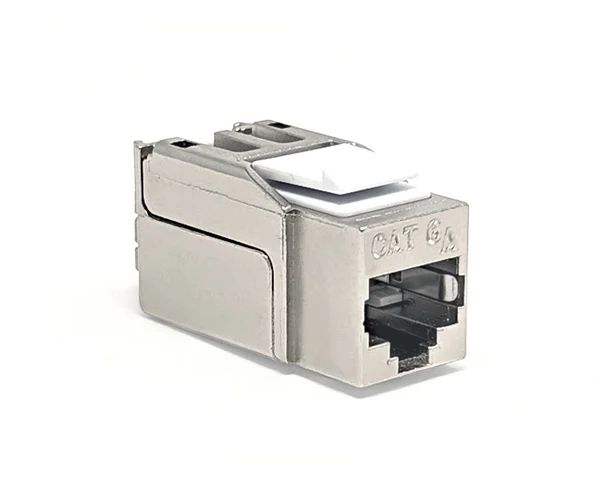

Shielded CAT6A Keystone Jack, Silver

by Dynacom
Color: Silver
Various lead times may apply to this product. Please contact us for more details.
RoHS Compliant

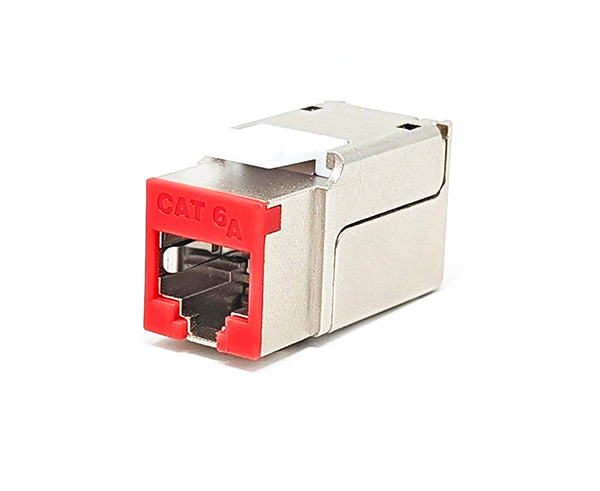

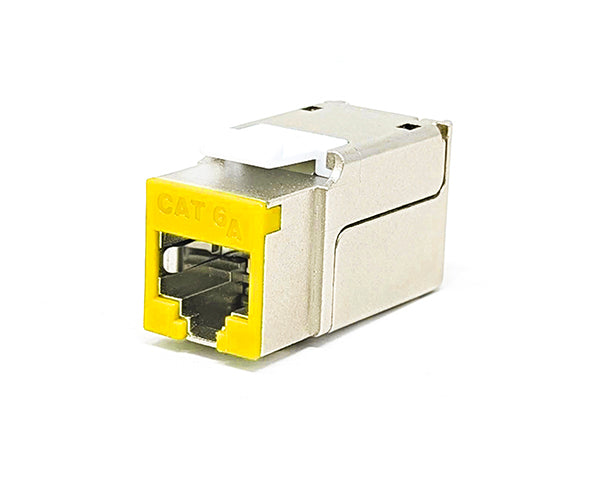

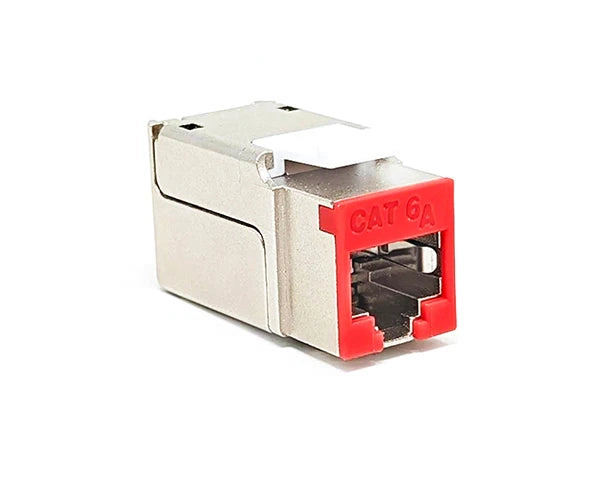

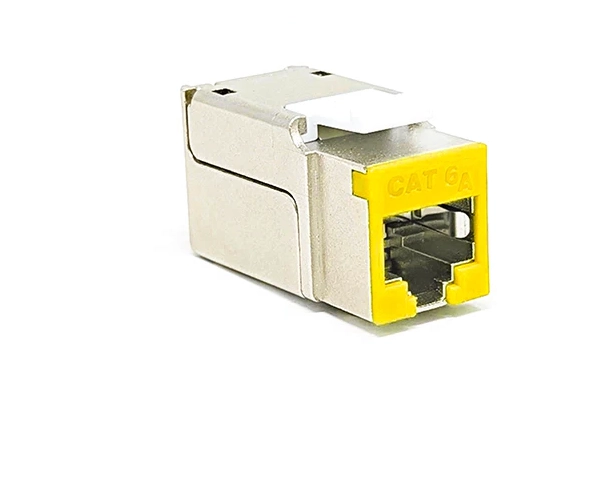

CAT6A Shielded High Density Component Rated 180º Keystone Jack

The CAT6A Shielded HD Component Rated Keystone Jack is fully shielded against EMI with its zinc alloy housing. Contacts are phosphorous bronze plated with 50 micro inches of gold for superior signal conductivity. This shielded high density CAT6A jack is compatible with solid and stranded 23 AWG to 26 AWG size wires.

This CAT6A Shielded HD Component Rated Jack meets all requirements for ANSI/TIA 568.D-2 Compliance and are inspected and tested to comply with stringent industry transmissions and safety standards.

To complete your CAT6A shielded network we carry a full end to end solution including CAT6A shielded Ethernet cables, CAT6A shielded patch cables, CAT6A shielded modular plugs, CAT6A shielded in-line couplers, shielded blank patch panels, CAT6A shielded patch panels, and wall plates. We also have a large assortment of tools, testers and cable management accessories that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call.



  • CAT6A Performance Speeds of up to 10G
  • 8 Pin x 8 Conductor for Streamlined Connection
  • High-Density, Slim Profile
  • Fully shielded to greatly reduce cross-talk, EMI, and RFI
  • Cable O.D.: 4.5mm-10mm
  • Zinc Die-Casting With Nickel Plated Housing Provides Additional Protection Against the Elements and EMI and Alien Crosstalk
  • Reliable Connector, and Durable Housing
  • Gold-Plated Nickel Contacts Provide Corrosion Resistance and Signal Conductivity
  • Easy to Read Wiring Label to Facilitate Installation
  • Meticulously Engineered to Deliver Exceptional Performance While Streamlining Installations
  • Small Form-Factor for High-Density Installations
  • Phosphor Bronze IDC Contacts Ensure Excellent Conductivity, Durability, and Outstanding Resistance Against Wear or Corrosion
  • Innovative Jack Design Keeps Pairs Together to Streamline the Installation Process
  • Suitable For Shielded Solid & Stranded 23 AWG to 26 AWG Wire
  • T568A & T568B Wiring
  • 110 & Krone Punch Down Compatible
  • IEEE 802.3bt PoE Type 4
  • Meets and Exceeds ANSI/TIA 568.D-2 Standards



 Material Specs:

Jack Housing: Zinc Alloy Die-Cast
Contact Bracket: PC, UL 94-V2, Transparent Color
RJ45 Contact Material: Phosphor Bronze with Nickel Plating
Finish: 50 Micro-inch Gold Plated
IDC Housing: Phosphor Bronze Alloy
Terminal: Phosphor Bronze With Tin Plating
IDC Cap: PC + Glass Fiber, UL94-HB,White Color

Performance Specs:

Insertion Force: 30N Maximum
Retention Strength: 7.7 kgs Between Jack and Plug
Operation Temperature: -10°C to 60°C
Life (Mating Cycles): 750 Cycles Minimum
IDC Wire Range: Solid & Stranded 23-26 AWG Wire

What's in the Box?

What's in the Box?

  • Qty 1 - CAT6A Shielded High Density Component Rated 180º Keystone Jack
  • Qty 1 - Shielded IDC Cap
  • Qty 1 - Cable Tie
  • Qty 1 - Instructions
