Description
Our S/FTP shielded CAT7 cable is ideal for voice, data, video, and security applications. The CAT7 Cable is the premier solution for your network installation. Whether you are wiring your home, office, or entire campus, we have the cable that's right for you.

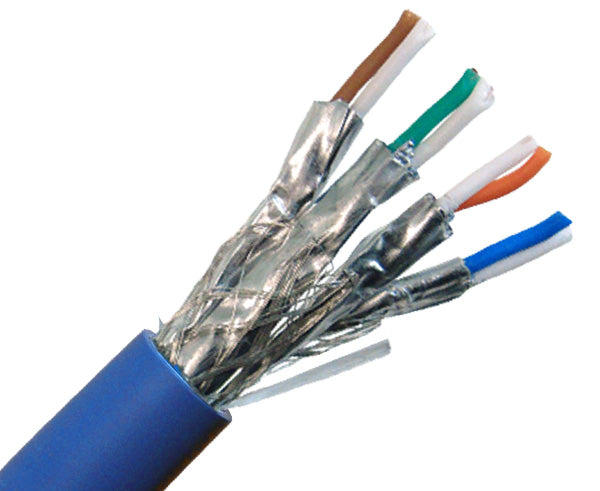

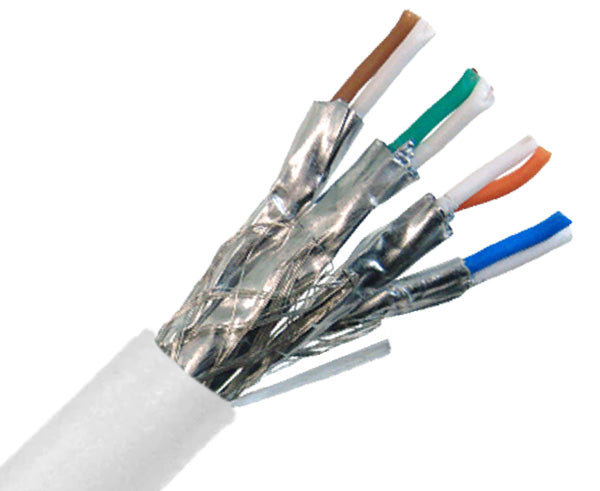

This CAT7 cable is a high-speed 10 Gigabit Bulk Cable that consists of a 4-Pair / 8-Conductor configuration. These twisted pairs are individually shielded to repel electromagnetic interference (EMI) in electrically noisy environments. This CAT7 Cable is designed with an Overall Tin-Copper Braid for extra interference protection. Additionally, this cable has a tinned copper drain wire that grounds the electricity after it has been terminated. This drain wire is required on all shielded cables to prevent signal loss, crosstalk, and other performance issues. Our CMP Plenum Rated Cable is comprised of 23AWG Solid-Bare Copper Conductors, which are protected by an indoor-rated gray PVC Jacket. This cable is only available in 1000' increments on a wooden Spool.
Our solid CAT7 cable has individually shielded pairs (S/FTP), and is quality manufactured to meet and or exceed product certifications such as CAT7 T568C.2 standards.
Technical Diagram
CAT7 & Cat7A Bulk Cable Options
| Solid Copper CAT7 |
Solid Copper CAT7A |
|
| Indoor S/FTP |
Indoor/Outdoor S/FTP |
Indoor/Outdoor S/FTP |
Features
Features
- Category-7 Solid Cable
- Shielded Twisted Pair (S/FTP) Cable
- Overall Tin-Copper Braiding
- CMP Plenum Fire Rated
- High-Performance Data Communications Cable
- Suitable for 10G High Speed Data Applications, Gigabit Ethernet, Fast Ethernet, and 155Mbps TP-PMD/CDDI
- 4-Pair Easily Identified Color Striped Pairs
- 23 AWG Solid Bare Copper Conductors
- Excellent Attenuation and Crosstalk Characteristics
- EC Verified
- Exceeds ANSI/TIA-568.2-D
- Backward Compatible
- ISO/IEC 2nd Edition 11801 Class F
- Supplied on a 1000 ft. Wooden Spool
Applications:
- 10GBASE-T Ethernet
- 1000BASE-Tx Gigabit Ethernet
- 10BASE-T, 100BASE-TX Fast Ethernet (IEEE 802.3)
- 10 VG - AnyLAN (IEEE802.12)
- 550 MHz Broadband Video
- Voice, T1, ISDN
- 155/622 Mbps ATM
Specifications
Specifications
Additional Information
Additional Information
The main difference between CAT7 cable and its predecessors is its level of shielding. CAT7 cable meets or exceeds the rigorous demands of Class F cabling, with stricter specifications for EMI reduction. The shielding of the individual twisted pairs enables CAT7 to deliver transmission speeds up to 10G. CAT7 cable is also backward compatible, working with CAT5E and CAT6 networks.
We offer CAT7 cable for both indoor and outdoor applications for 10G data networks. Ours is sold on a wooden spool of 1,000 feet.
Please follow this link to learn more about our Category 7 Bulk Cable.
Crimping Tool - TL1-4591
Crimping Instructions
|
1. Put the plug into the crimp tool in the right position. |
2. Squeeze the tool to push the contact blades into the correct positions. |
|
3. Push the metal strain relief down to hold the cable with foil screen or drain wire. |
4. Place the metal strain relief in the right position. |
|
5. Squeeze the tool again to hold the cable tightly and ground it. |
6. Completion. |
What’s In The Box
What’s In The Box

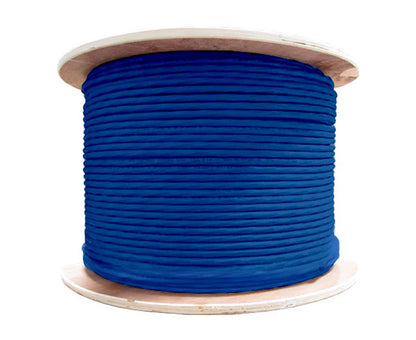

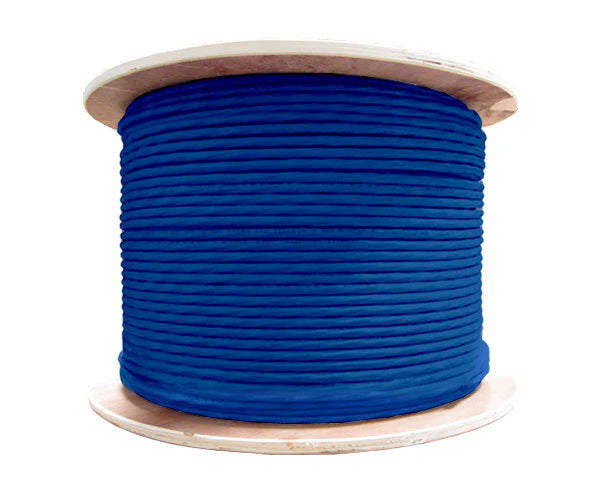

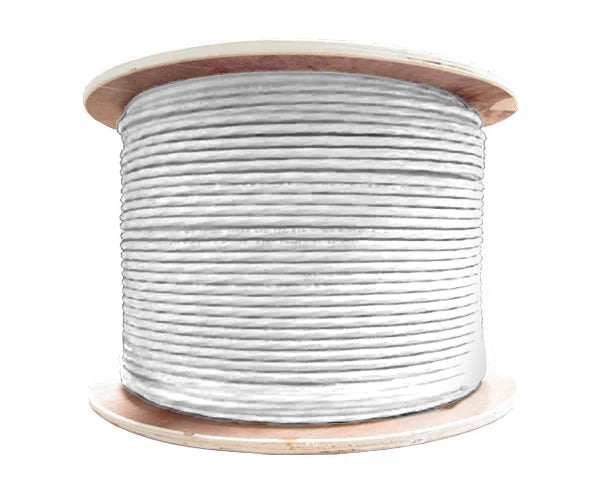

- Qty 1 - 1000FT Spool, CAT7 10G CMP Individually Shielded Pairs (S/FTP) Solid Cable.
