CAT8.1 Bulk Ethernet Cable, 40G CMR, 23AWG Solid Copper, Dual Shielded S/FTP

SKU: C8SS-7006RB
Color: Blue
RoHS Compliant ISO 9001


CAT8.1 Bulk Riser Dual Shielded Ethernet Cable

CAT8.1 Bulk Ethernet Cable

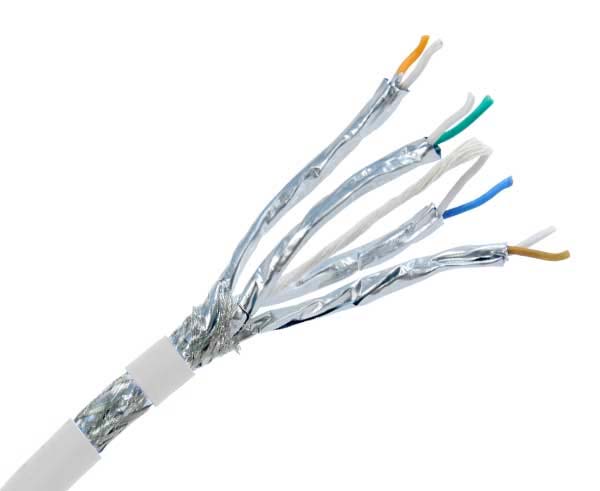

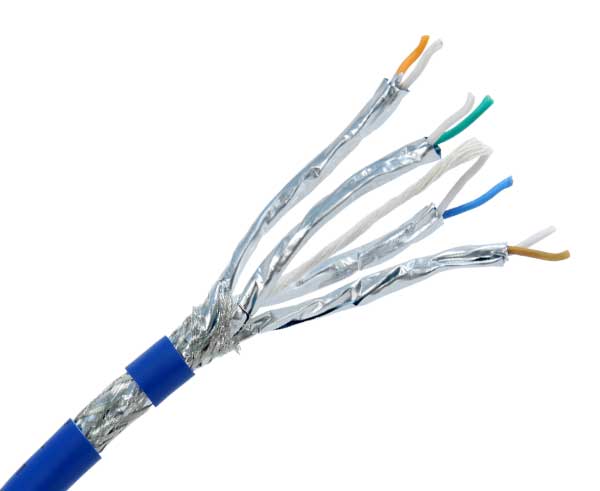

Our S/FTP shielded CAT8.1 bulk Ethernet cable is ideal for indoor short runs up to 30 meters in length. Primary application is for high performance data centers. Composed of four individually shielded pairs of 23 gauge solid bare copper conductors, with an overall tinned copper braid shield. The CAT8.1 bulk Ethernet cable has an overall CMR Rated jacket and sequential footage markings on the jacket so you always know how much it left.

This CAT8 bulk cable is suitable for 25G networking but has the ability to reach up to 40G speeds. This cable has a conventional 4 pair, 8 conductor wiring configuration. These twisted pairs are individually shielded in order to repel electromagnetic interference (EMI) in electrically noisy environments. They also keep Alien Cross Talk down to prevent from slowing down transmission speeds. Shielding is a vital part of how fast the signal seed is in CAT8 cables. That is why it is important to test the continuity of your shielding to ensure no loss is occurring. This Cat8.1 cable is sold on a wooden spool of 500 or 1000 feet.

What sets CAT8 version 1 apart from CAT8 version 2? First CAT8.1 is backwards compatible with the Class I standard RJ45 while CAT8.2 is designed to be compatible with Class II Fa standard connectors. While we still recommend our CAT8 Modular plug to be used with this cable it is compatible with legacy connectors. The structure is also different in the CAT8.1 compared to the 8.2. There is far more shielding and insulation in the 8.2 to reduce interference even further if meeting the max frequencies.

Our solid CAT8.1 cable has individually shielded pairs (S/FTP), and is quality manufactured to meet and or exceed product certifications which uphold to the new ANSI/TIA-568C-2.D standards.

Technical Diagram

CAT8 Dual Shielded Cable Riser Diagram



  • Utilizes RJ45 Connectors Fully Backwards Compatible
  • Shielded Twisted Pair (S/FTP) Cable
  • Overall Tin-Copper Braiding
  • CMR Riser Rated
  • High Performance Data Communications Cable
  • Suitable for up to 40G High Speed Data Center Applications
  • Up to 30 Meter Distance Runs
  • 4-Pair - Easily Identified Color-Striped Pairs
  • 23 AWG Solid Bare Copper Conductors
  • Excellent Attenuation and Crosstalk Characteristics
  • Exceeds ANSI/TIA-568.2-D
  • ISO/IEC 11801

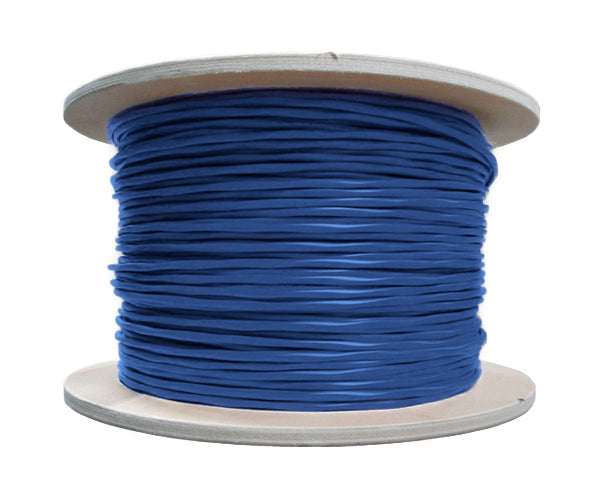

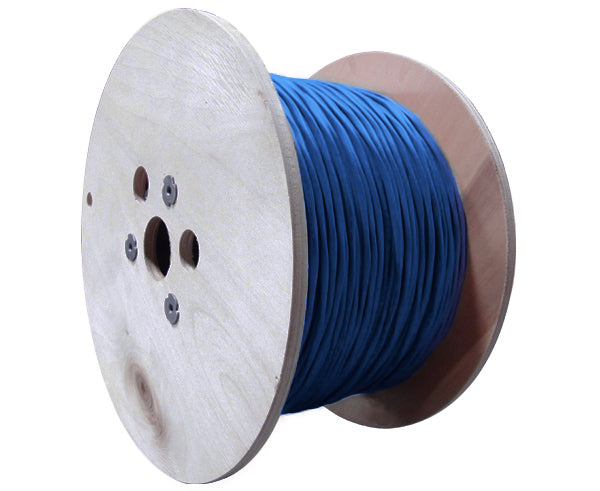

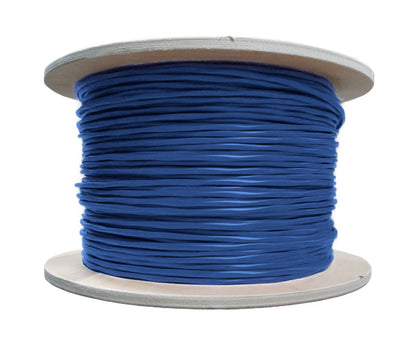

  • Supplied on a 500 ft. Wooden Spool
  • 25/40GBASE-T Ethernet
  • 10Gb/s Networking
  • Rackcenter Topologies Supported:
    • Top-of-Rack (ToR)
    • End-of-Row (EoR)
    • Middle-of-Row (MoR)
  • Not Intended for Premise or Enterprise Networks



Additional Information

The Difference Between CAT8.1 and CAT8.2

The international standards ISO and IEC have designated two cabling variants to support 25Gbps and 40Gbps; they are Category 8.1 and Category 8.2. Category 8.1 components are used to construct Class I links which are backward compatible with the RJ45 connector interface for categories 6A, 6 and 5e this is stated in ISO/IEC 11801 and EN 50173. Category 8.2 components are used to construct Class II links. Category 8.2 components are backward compatible with components used to construct Class F and Class FA links. Category 8.2 connector interfaces ARE NOT BACKWARD COMPATIBLE with standard RJ45 jacks of existing cabling. Don't worry we offer the top CAT8 RJ45 jacks in the industry.

Component Category Link Class Max Frequency Responsible Standards Body Usage 25GBASE-T 40GBASE-T Compatible with RJ45
CAT 8 CAT 8 Link 2GHz ANSI/TIA North America Yes Yes Yes
CAT 8.1 Class I 2GHz ISO/IEC International Yes Yes Yes
CAT 8.2 Class II 2GHz ISO/IEC International Yes Yes No
Class I vs. Class II
Cable OD difference ~5% greater for Class II
Cable bulk difference ~10% greater for Class II
30m channel cost difference (components only) 4-36% greater for Class II
NEXT & FEXT cancellation for same margin to capacity ~20dB less for Class II
Standards Breakdown
TIA ISO 11801
Channel / Perm.L Cat 8 Class I Class II
Max. Frequency 2000 MHz
Components Cat 8 Cat 8.1 Cat 8.2
Extrapolated From Cat 6A Class FA
Style RJ45 Non-RJ45 (TERA, GG45, ARJ45, ...)
Accuracy Standard TIA 1152a IEC 61935-1 Ed.5 (Draft)
Level 2G Level VI for CI.I Level VI for CI.II

What’s In The Box

What’s In The Box

  • Qty 1 - 500ft Spool, CAT8.1 40G Individually Shielded Pairs (S/FTP) Solid Copper Cable - Blue Jacket
  • Qty 1 - 500ft Spool, CAT8.1 40G Individually Shielded Pairs (S/FTP) Solid Copper Cable - White Jacket
  • Qty 1 - 1000ft Spool, CAT8.1 40G Individually Shielded Pairs (S/FTP) Solid Copper Cable - Blue Jacket
