Choose the Right RJ45 Connectors
Leverage the power of 40G with shielded termination plugs. Your data network is only as strong as your weakest link, so if you're using CAT8 Ethernet cable, make sure you have the correct plugs for the job. This product also supports PoE++ (802.3bt) 4PPoE, up to 100W.

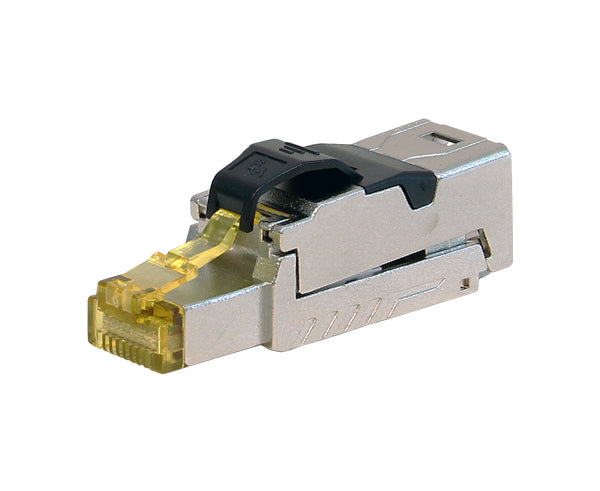

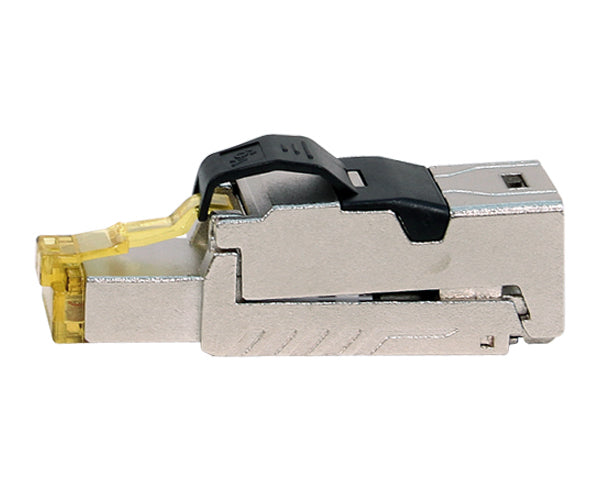

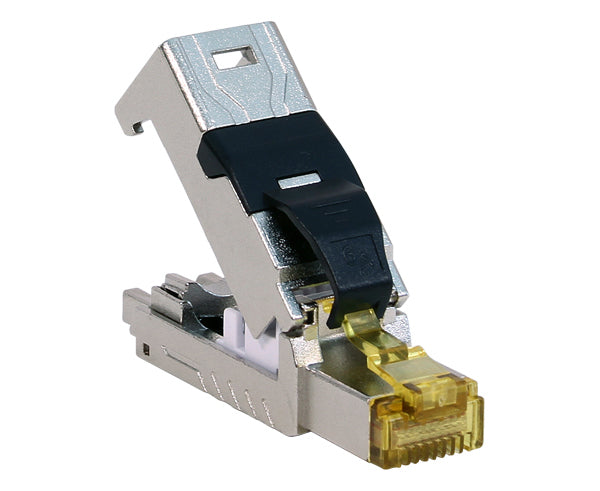

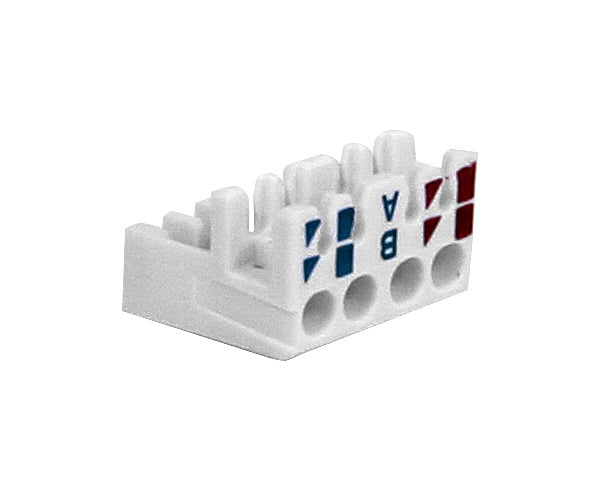

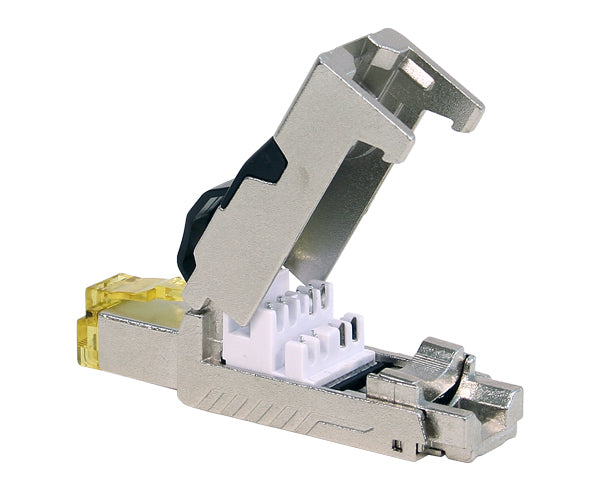

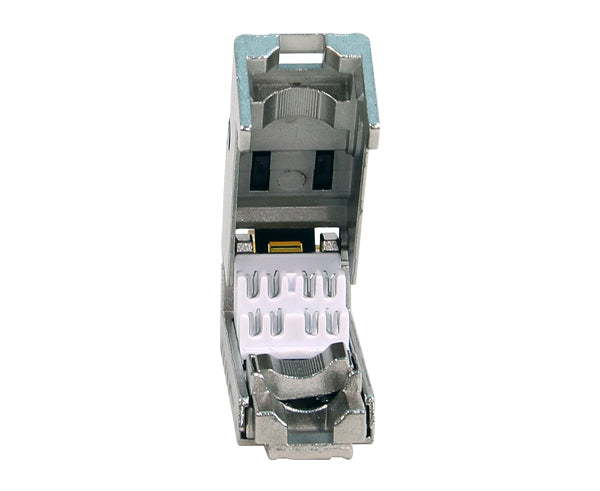

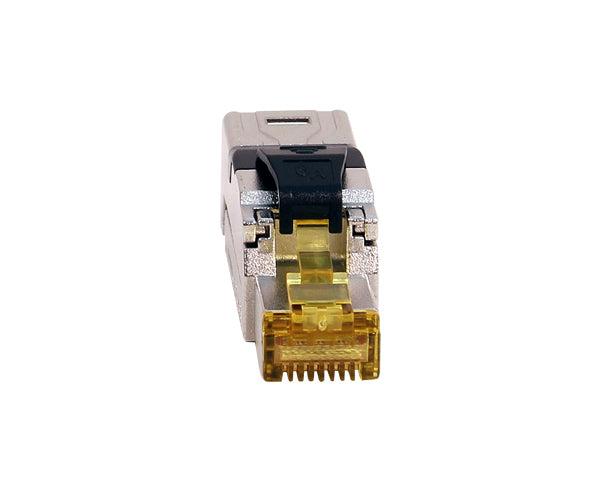

The shielded CAT8 field termination plug is designed specifically for CAT8 bulk cable. This 8 pin 8 conductor (8p8c) plug has 50 micro inch gold plated contacts for superior signal conductivity. The wire alignment insert provides an efficient termination without a crimp tool, although a cable stripper is recommended to prepare the cable for termination. This connector has been rated for PoE and is capable of power transfer.
Why Shield Your RJ45 Connectors?

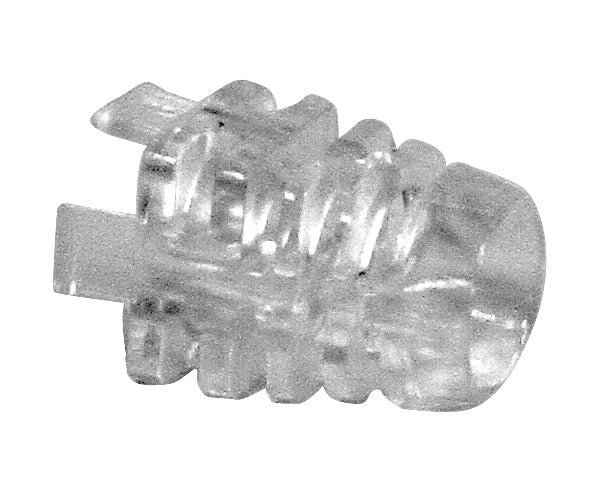

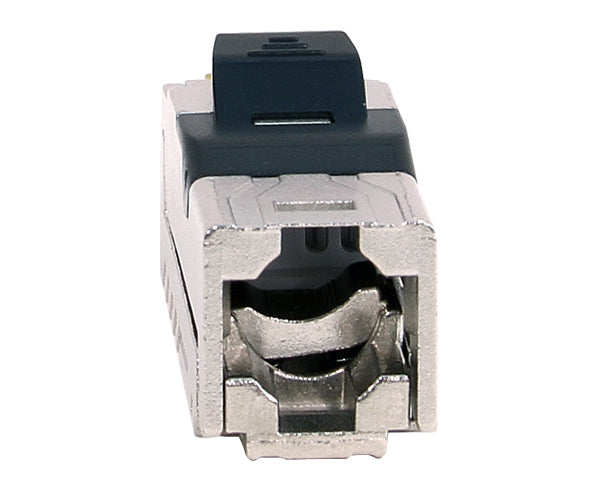

This connector housing is shielded with zinc die-cast nickel plating. This makes our CAT8 plugs more durable while being less prone to corrosion and rust. All our CAT8 plugs come standard with two different sizes of boots. These boots provide better stress relief support around the connection point of the cable and connector.
The copper foil included with the RJ45 connector will also further shield from any unwanted EMI or crosstalk. So, update your system today so your company can get faster, more efficient conversion rates.
Looking For RJ45 Accessories?
Please consider us for any of your other networking needs. We've got bulk cable, many styles of keystone jacks, and other items.
Features
Features
- Ideal for high-performance CAT8 networks needing to reach 40G speeds
- Meets CAT8 performance requirements per ANSI/TIA-568.2-D
- Supports PoE++ (802.3bt) 4PPoE, up to 100W
- Housing is shielded with zinc die-cast nickel plating
- Tool-less termination saves time and money
- Strain relief boots are included
- Backwards compatible with CAT6 system
- 50 micro-inch gold plated contacts
- Suitable for shielded solid & stranded 22/24 AWG wire
- Fits cable OD between 7.3-9.0mm
- Power over Ethernet (POE) capabilities
- T568A & T568B wiring
- UL 94-V0 plastic components
Specifications
Specifications
| Housing Dimensions | |
|---|---|
| Width | 13.8mm |
| Height front | 18.4mm |
| Height rear | 14.5mm |
| Length | 62.18mm (Including Boot) |
| Conductor Space | 6.6 X 11.68 mm (H x W) |
| Performance | |
|---|---|
| Insertion Force | 30N max. |
| Retention Strength | 7.7 Kg between jack and plug |
| Operating Temperature | -10ºC to 60ºC |
| Life Cycle (Mating) | 750 cycles min. |
| IDC Life Cycle | Suitable for 22 - 24 AWG stranded and solid wire, min. 20 installation cycles |
| Material | |
|---|---|
| Extractor | UL 94V-2 black plastic |
| Housing | Zinc die-casting with nickel plating |
| Contact Material | Phosphor bronze with 100 micro-inch nickel plate |
| Contact Finish | min. 50 micro-inch gold plating |
| Wire Management Bar | UL 94V-2 white plastic and glass fiber |
| IDC Housing | UL 94V-2 white plastic |
| IDC Terminal | Titanium copper with tin plating |
| Grounding Contact | Zinc die-casting with nickel plating |
| Boots | UL 94V-2 transparent plastic |
Additional Information
Additional Information
Installation Instructions
Our Shielded RJ45 connector for CAT8 cable is compatible with:

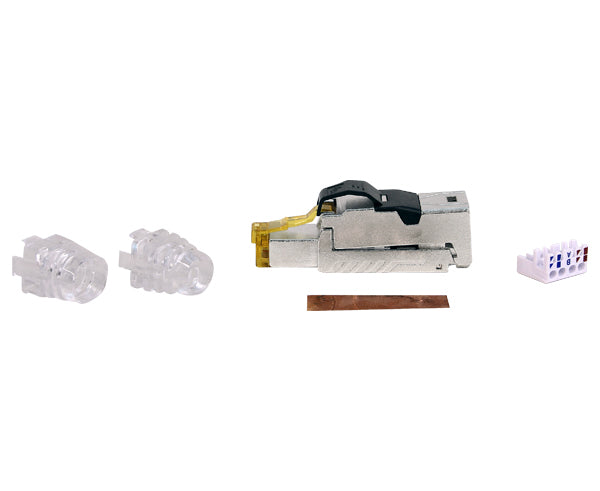

What’s In The Box
What’s In The Box
- Qty 1 - CAT 8 Shielded Field Termination Plug
- Qty 1 - IDC Cap
- Qty 2 - Stress Relief Boots
- Qty 1 - Copper Foil Tape
