Description

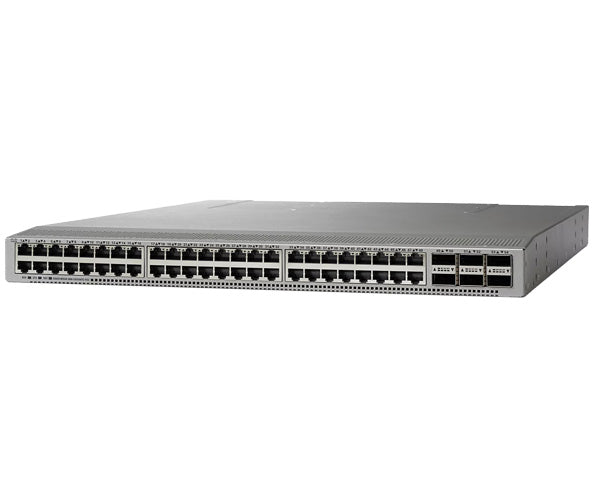

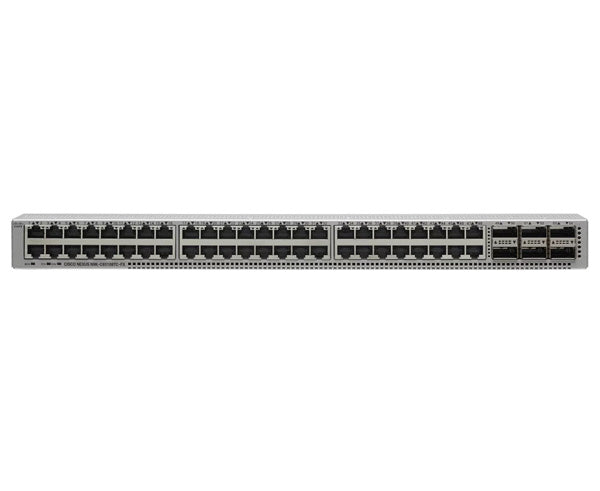

The Cisco Nexus 93108TC-FX3 switch (N9K-C93108TC-FX3) is a 1-rack unit (RU), fixed-port switch designed for deployment in data centers.
Features
Features
- 48 100M/1G/10GBASE-T ports (ports 1-48)
- 6 40/100-Gigabit ports QSFP28 (ports 49-54)
- Two management ports (one 10/100/1000BASE-T port and one SFP port)
- One console port (RS-232)
- 1 USB port
Specifications
| Technical Specifications | |
|---|---|
| Dimensions (W x D x H) |
17.3 x 17.9 x 1.72 in. (43.9 x 45.5 x 4.4 cm) |
| Form Factor | 1 RU |
| Ports | Downlinks: 48 x 1/10/25G SFP28 ports Uplinks: 6 x 40/100G QSFP28 ports |
| 40 GE ports | 16 |
| 100 GE ports | 6 |
| Latency (microseconds) | ~2.5 |
| Buffer (MB) | 40 |
| Management Ports | 2 ports: 1 RJ-45 and 1 SFP |
| Fans | 4 |
| Power supply (Watts) 2 per switch | 350 |
| Typical Power (Watts) | 420 |
| System Memory | Default: 32GB Expandable: 32GB |
| Frequency (AC) | 50 to 60 Hz |
| AirFlow | Port-side intake and exhaust |
| Acoustics |
Port-side exhaust: Fan speed at 50%:68.6 dBA Fan speed at 70%:76 dBA Fan speed at 100%: 85.9 dBA Port-side intake: Fan speed at 50%:70.7 dBA Fan speed at 70%:78.3 dBA Fan speed at 100%: 86.9 dBA |
| MTBF (Mean Time Between Failures) | 315,600 Hours |
| RoHS compliance | Yes |
Additional Information
Cisco Optics-to-Device Compatibility
What's in the Box
What’s in the Box
- Qty 1 - Nexus 9300 with 48p 100M/1/10GT & 6p 40/100G QSFP28+
