Description

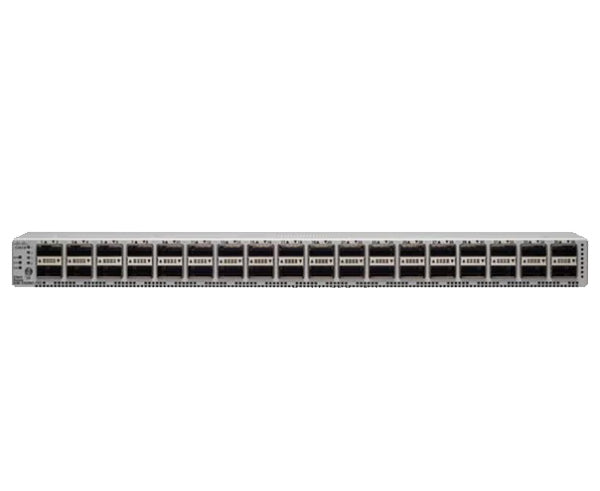

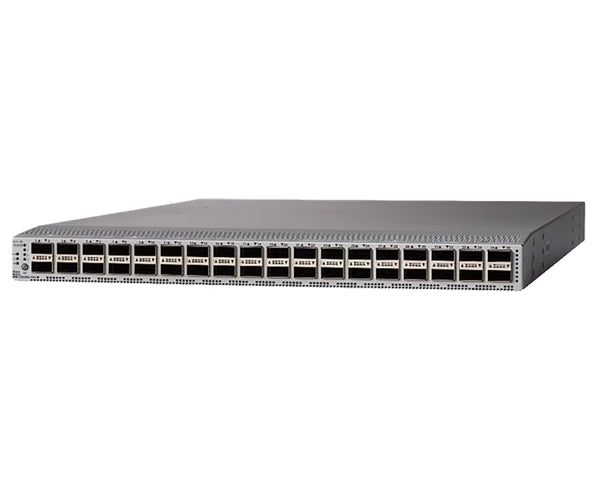

The Cisco Nexus 9336C-FX2-E Switch is a 1RU switch that supports 7.2 Tbps of bandwidth and over 2.4 bpps. The switch can be configured to work as 1/10/25/40/50/100-Gbps or as 16-, 32-Gbps Fibre Channel ports[2] offering flexible options in a compact form factor. Breakout is supported on all ports.
Features
- Compact 1RU form factor
- Hot-swappable, redundant power supplies and fans
- 36-Port QSFP28 40/100GbE data center switch
- Multi-rate support: 1G, 10G, 25G, 40G, 50G, and 100G
- Flexible port breakouts for high-density deployments
- 7.2 Tbps switching capacity with wire-rate forwarding
- Cloud-scale ASIC for high performance and low latency
- Supports Cisco NX-OS and Application Centric Infrastructure (ACI)
- VXLAN EVPN support for scalable fabric architectures
- Integrated MACsec for secure data transport
Specifications
Specifications
| Specification | |
|---|---|
| Dimensions (W x D x H) |
17.3 x 24.5 x 1.72 in. (43.94 x 62.23 x 4.37 cm) |
| Form Factor | 1 RU |
| Ports | 36 x 40/100-Gbps QSFP28 ports |
| Supported speeds | 1/10/25/40/100-Gbps Ethernet Breakout supported on all ports, 1-36: 100G, 2x50G NRZ, 40G native, 4x10/25G (10G w/QSA) 1G w/QSA except ports 1-6 and 33-36 |
| CPU | 4 cores |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) | 750W AC2, 1100W AC, 1100W DC, 1100W HVAC/HVDC |
| Power (AC) | (Typical) 337W (Max) 719W |
| Input voltage (AC) | 100 to 240V |
| System Memory | 24 GB |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 3 dual fan trays |
| AirFlow | Port-side intake and exhaust |
| Acoustics | 76.2 dBA at 50% fan speed, 85.3 dBA at 70% fan speed, and 92.3 dBA at 100% fan speed |
| MTBF (Mean Time Between Failures) | 335,900 hours |
Compatible
Cisco Optics-to-Device Compatibility
- QSFP-100G-LR4-S-PC
- QSFP-100G-CU1M-PC
- QSFP-100G-AOC
- QSFP-4SFP10G-CU1M-PC
- SFP-10/25G-CSR-S-PC
- SFP-10/25G-LR-S-PC
- SFP-H25G-CU1M-PC
- SFP-25G-AOC1M-PC
- SFP-25G-SR-S-PC
- SFP-25G-AOC
