Description

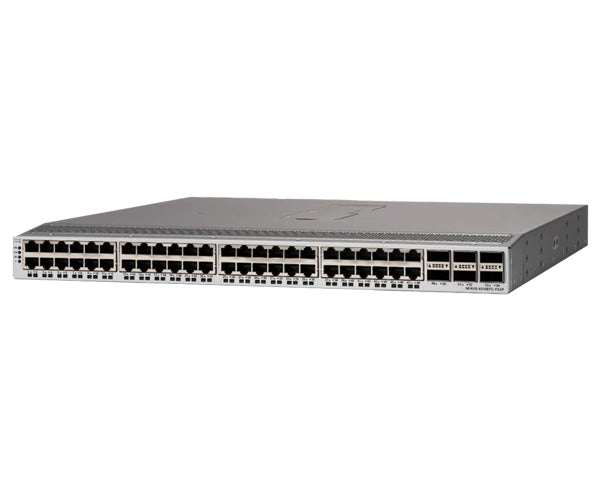

The Cisco Nexus 93108TC-FX3P Switch is a compact 1 RU switch is a modern Top-of-Rack (ToR) switch from Cisco's Nexus 9300-GX series, designed for high-density access and aggregation layers in data centers and enterprises. It supports 2.16 Tbps of bandwidth and 1.2 Billion packets per second (Bpps). Offering flexible port-speed configurations, the switch supports 48 ports of 100M/1/2.5/5/10G BASE-T on the downlinks. The 6 uplink ports support 40/100G QSFP 28. The 93108TC-FX3P is well suited for network customers requiring more versatility and flexibility in networking speeds. Supports power over ethernet.
Features
Features
- 48 100M/1/2.5/5/10GBASE-T ports (ports 1-48).
- 6 40/100-Gigabit ports QSFP28 (ports 49-54)
- Two management ports (one 10/100/1000BASE-T port and one SFP port)
- One console port (RS-232)
- PoE++ capable
- 1 USB port
Specifications
Additional Information
- switch includes the following user-replaceable components:
- Fan modules (four) with the following airflow choices:
Port-side exhaust fan module with blue coloring (NXA-FAN-35CFM-PE) Port-side intake fan module with burgundy coloring (NXA-FAN-35CFM-PI
What's in the Box
What’s in the Box
- Qty 1 - Nexus High-Density 10G/40G Data Center Switch
