Description

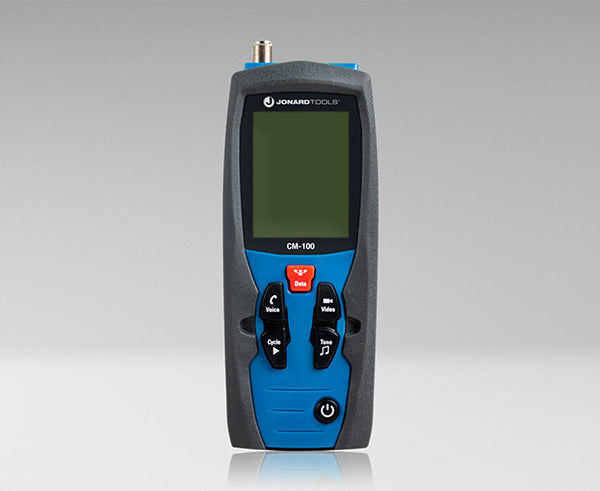

Cable Mapper Pro
Designed for finding and identifying up to 8 COAX and network cables in main cable boxes, this cable mapper and toner is the perfect tool for use on cables for CATV, network installations, satellite installations, telephone systems, audio-video equipment, CCTV, and security & alarm installations.
Features
Features
- Maps up to 8 COAX or Network Cables simultaneously, up to 1,000 ft

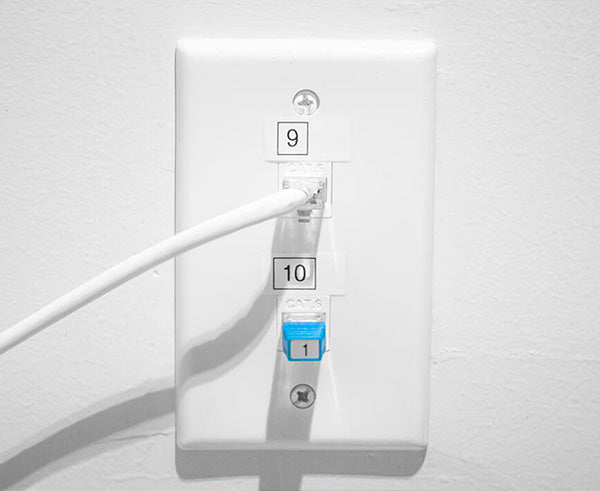

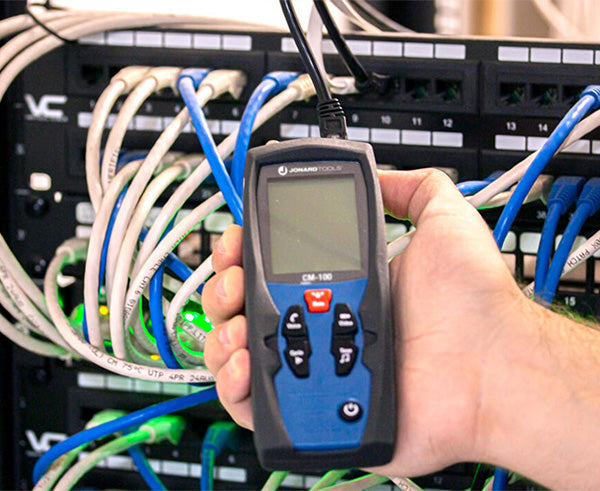

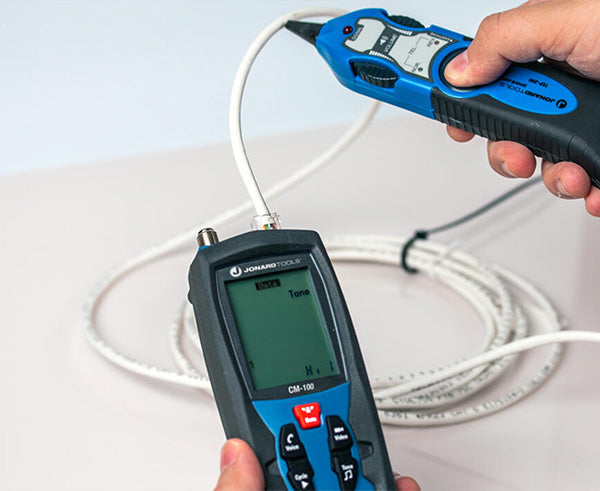

- Tone Generator makes it quick and easy to locate cables in wiring closets or patch panels

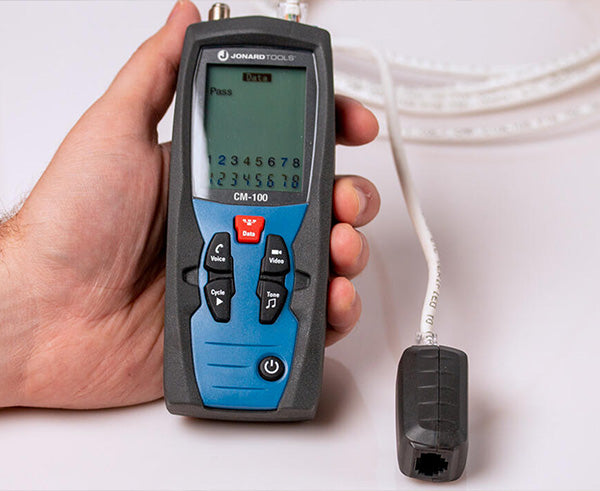

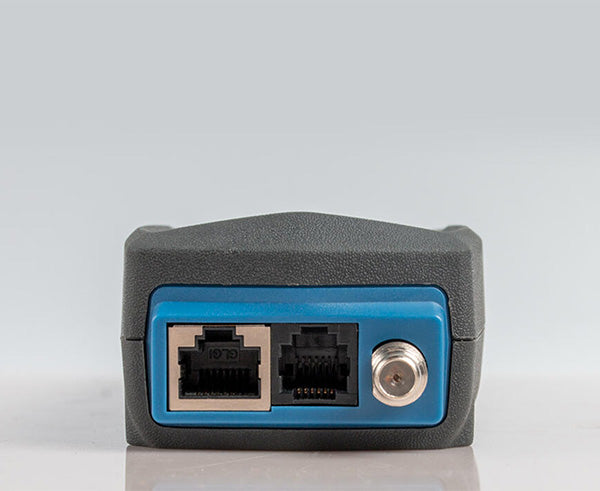

- Tests Network and Telephone Cables using RJ11 or RJ45 connectors for shorts and wire mispairs

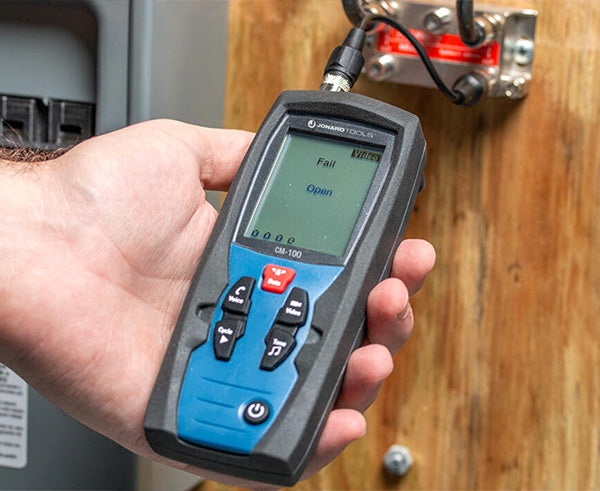

- Backlit LCD clearly maps out connections and describes wiring faults when testing
- Rugged rubber housing protects it from accidental drops and damage
- Live voltage detection warns you if the cable is live
- Powered by (2) AA Batteries (included) and automatically powers off after 30 minutes to conserve battery life
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| TOOL SPECIFICATIONS | |

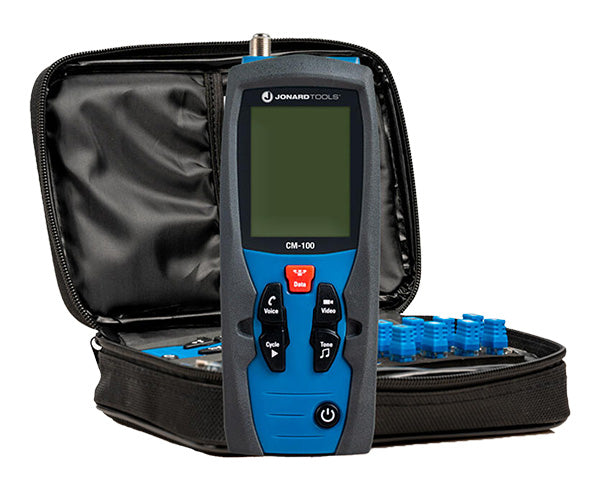

| Includes | Cable Mapper/Tester/Toner, 8 COAX Identifiers, 8 Network Cable Identifiers, 2 Data Patch Cords, Coax Patch Cord, Network Cable Remote, Rugged Nylon Case, 2 AA Batteries, and an Instruction Sheet |
| Display | Backlit LCD |
| Max Cable Length | 1000 ft (304.8 m) |
| Max DC Cable Resistance | 100 Ohms |
| PHYSICAL CHARACTERISTICS | |
| Batteries | x2 AA |
| Dimensions | 4.75” x 2.1” x 6.5” (12.1 cm x 5.3 cm x 16.5 cm) |
| Weight | 0.93 lb (424 g) |
| IDENTIFICATION | |
| UPC # | 810053350874 |
Additional Information
| Jonard Tools Cable Mapper Pro (CM-100) Product Video |
|---|

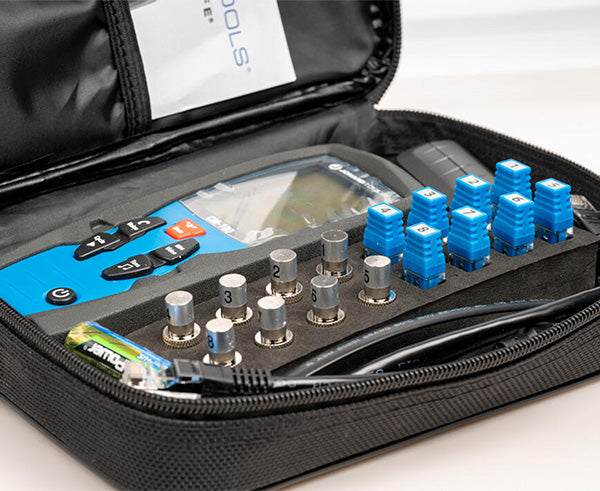

What's In The Box
What’s In The Box
- Cable Mapper/Tester/Toner

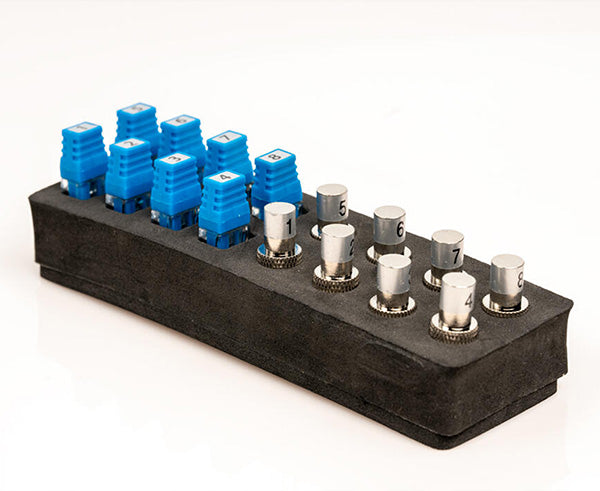

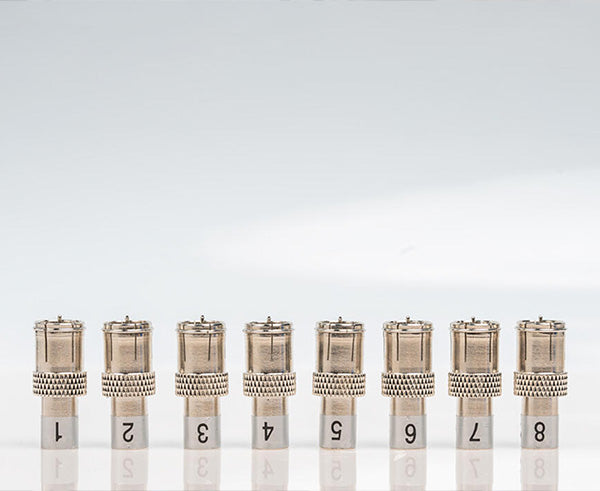

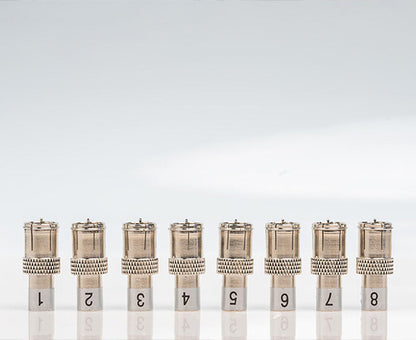

- 8 COAX Identifiers

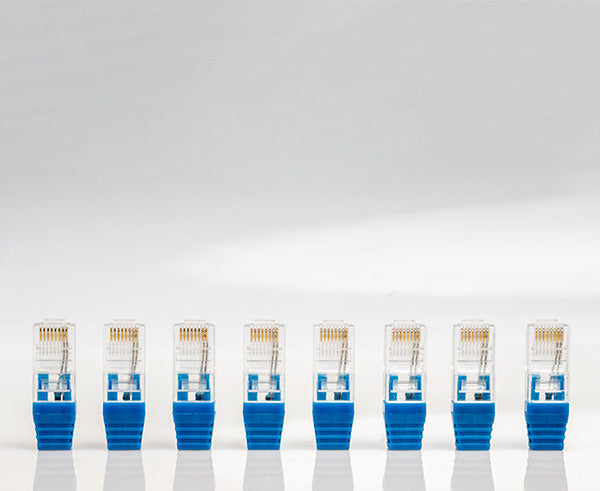

- 8 Network Cable Identifiers

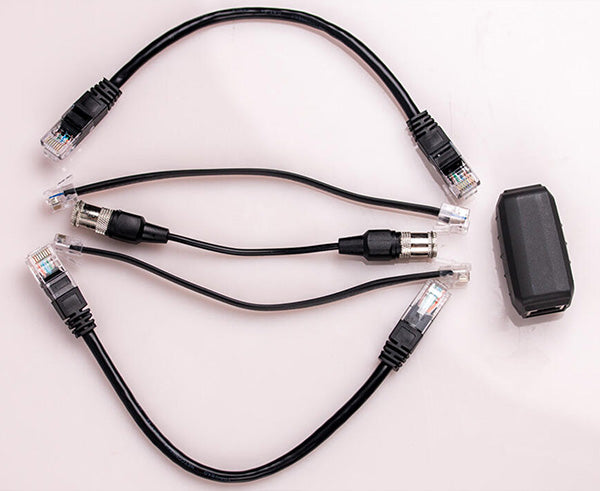

- 2 Data Patch Cords
- Coax Patch Cord
- Network Cable Remote

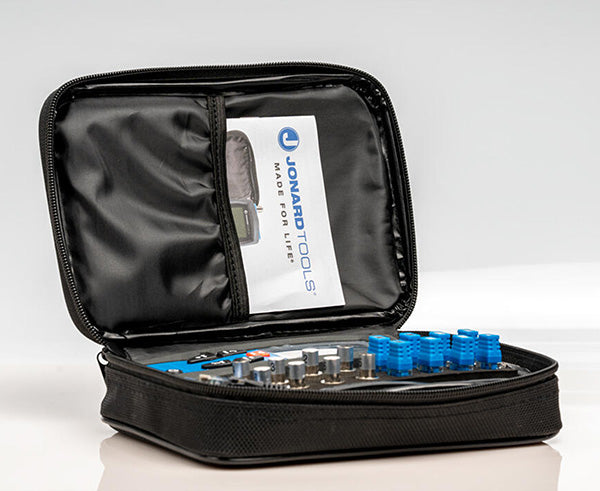

- Rugged Nylon Case
- 2 AA Batteries
- Instruction Sheet
