Description

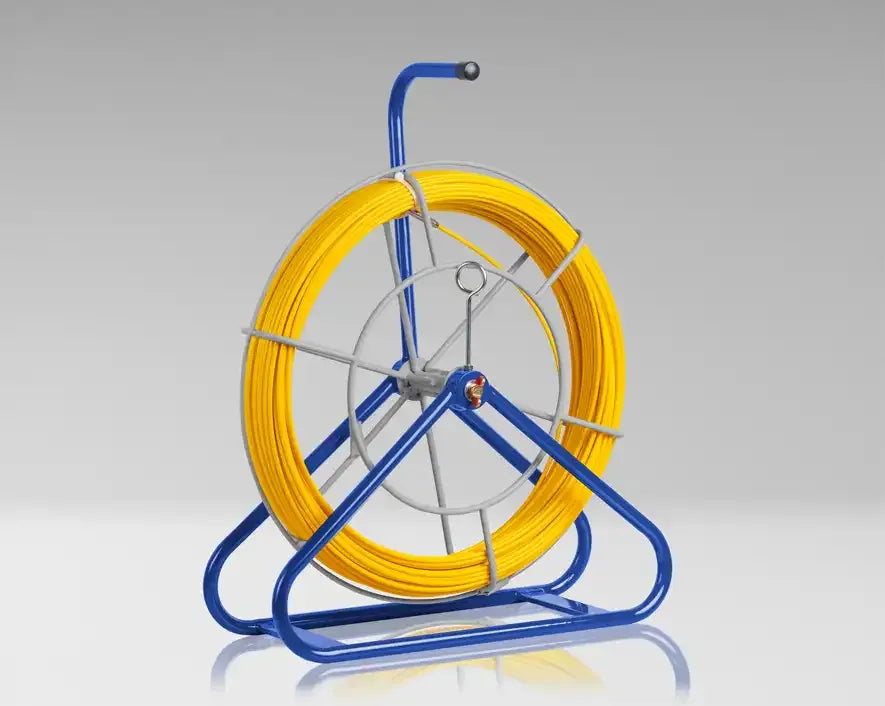

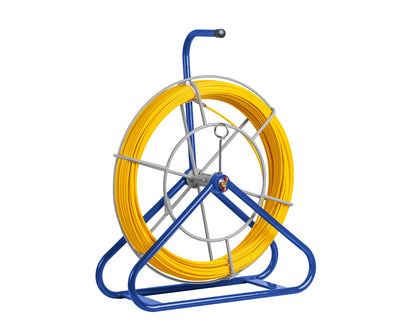

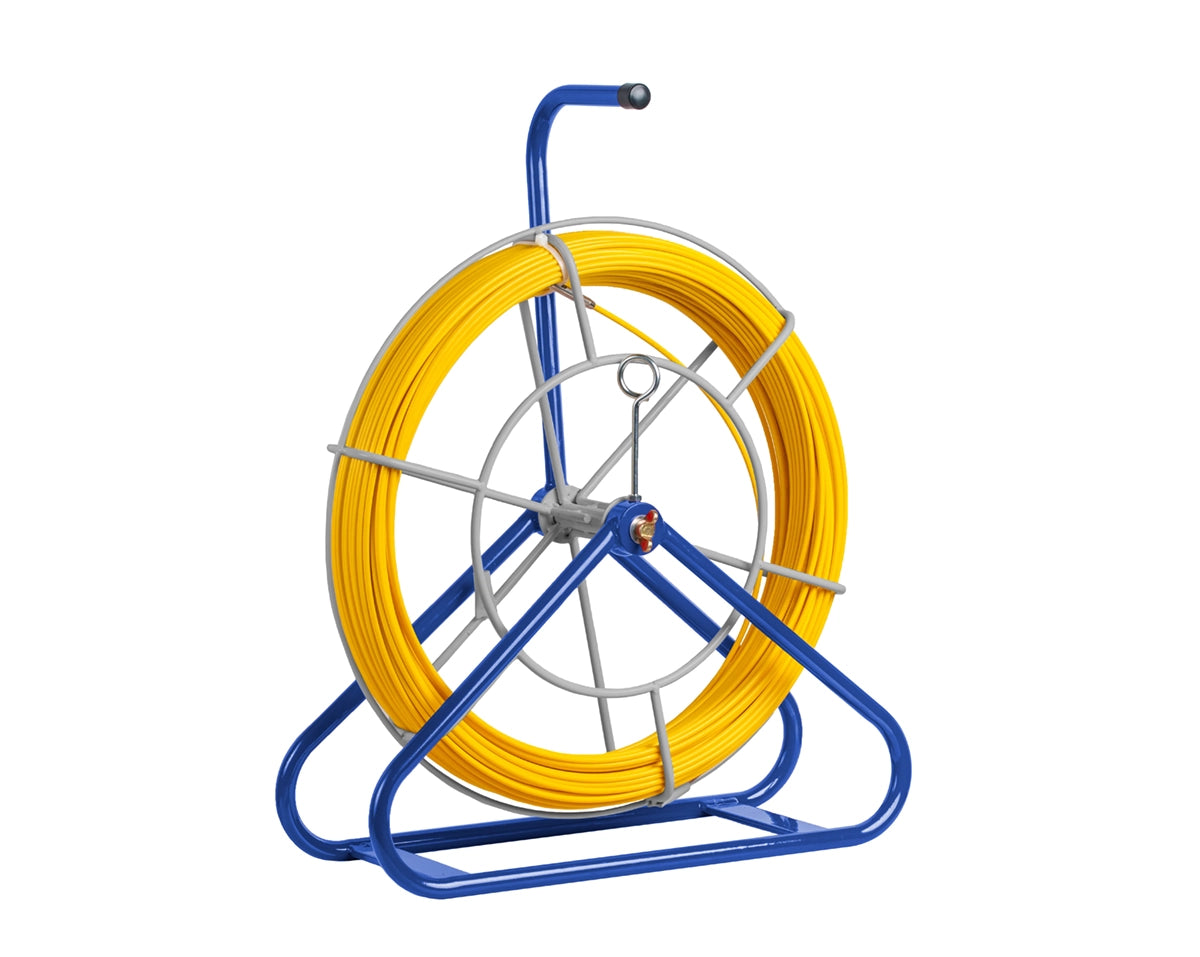

3/16" Fiberglass Rodder, Fiberglass Core w/ Plastic Coating, 10'-300' Length 300ft
Lightweight and portable, this rodder unit is perfect for running conduit cable or wire through or along conduit drops as well as home drops from the hand-hole box to a building. This rodder also features the following: Lightweight and compact design for easy transport Can be pulled horizontally or vertically Made with a non-conductive fiberglass core with a yellow nylon coating for high visibility and flexibility Nylon coating on rod resists harsh environments and provides a low friction surface for easier pulling Drag brake for controlling pay out speed

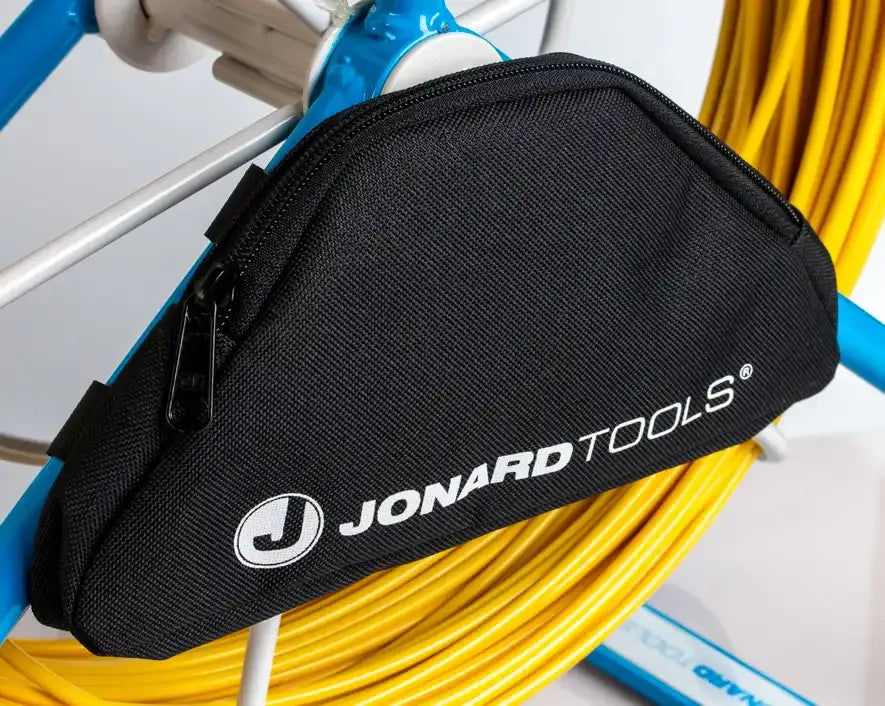

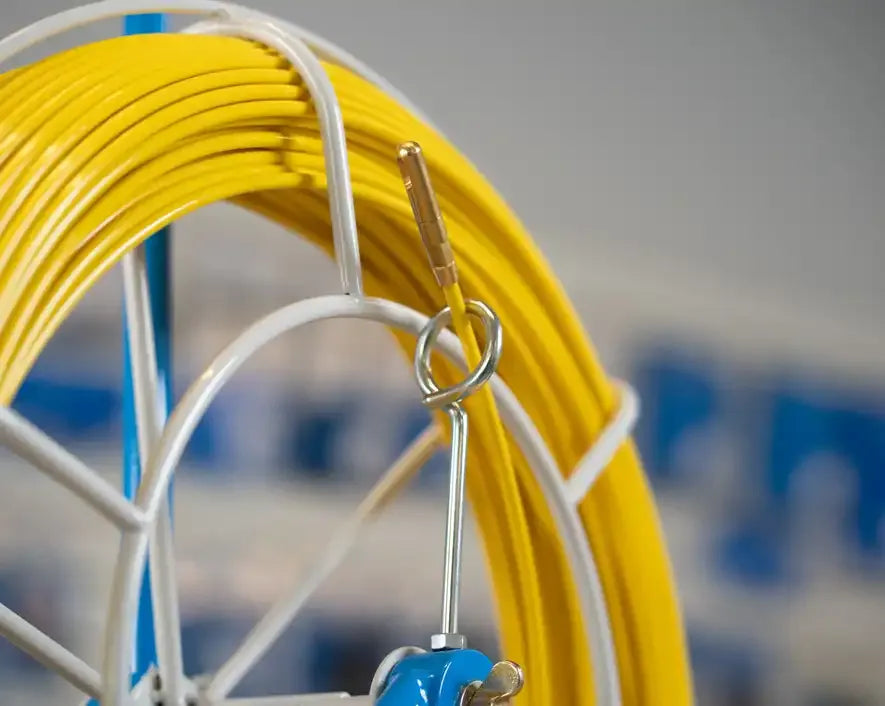

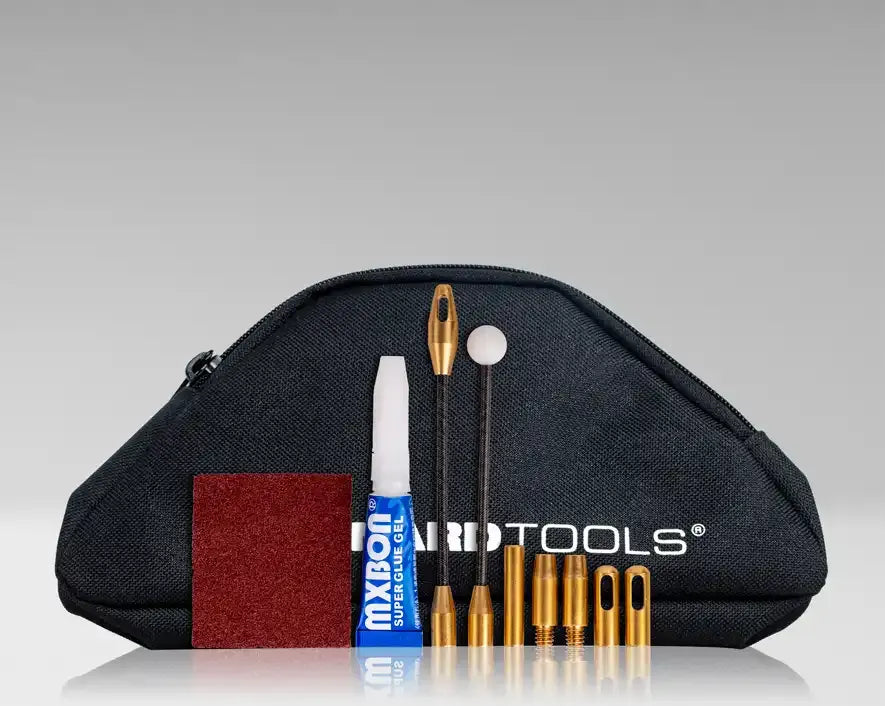

Triangular stand for stability Compatible with any conduit 3/4" or larger Includes: ROD-3316AK - Accessory Kit containing flexible leaders with a pulling eye or ball tip
Features
Features
- Lightweight and compact design for easy transport
- Can be pulled horizontally or vertically
- Made with a non-conductive fiberglass core with a yellow nylon coating for high visibility and flexibility
- Nylon coating on rod resists harsh environments and provides a low friction surface for easier pulling

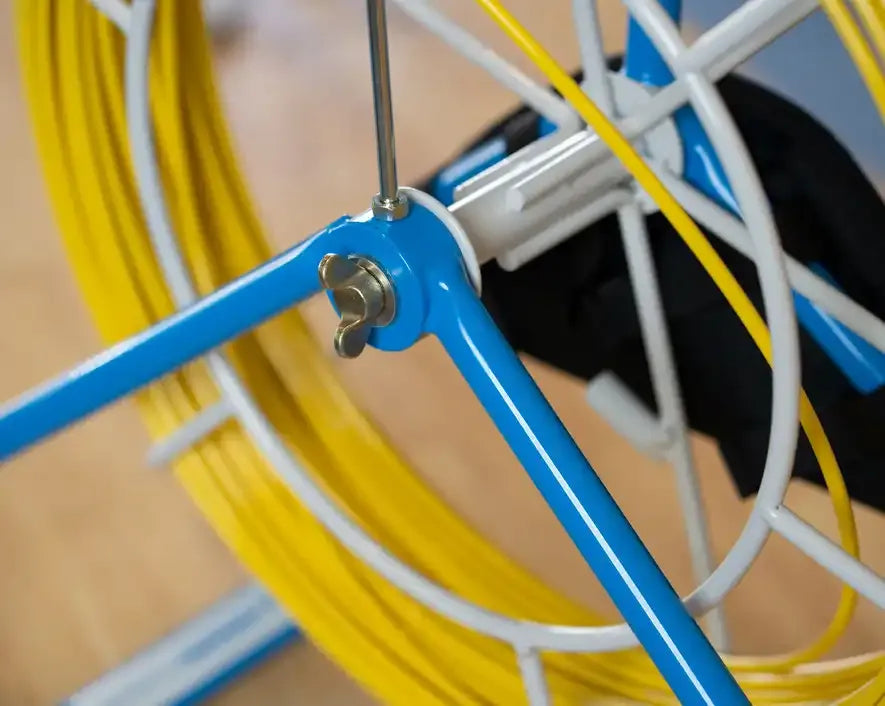

- Drag brake for controlling pay out speed
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| ROD LENGTH | 300' (91.44 M) |
| DIAMETER OF ROD | 0.187" (4.75 MM) |
| BEND RADIUS | 2.5' (0.76 M) |
| TENSILE STRENGTH | 200 KGF (441 LBF) |
| PRODUCT DIMENSIONS | 22" X 17" X 7" (55.88 CM X 43.18 CM X 17.78 CM) |
| PRODUCT WEIGHT | 14.33 LB (6.5 KG) |
| THREAD SIZE | 8-32 |
| DIMENSIONS | 22 IN X 17 IN X 7 IN (55.88 CM X 43.18 CM X 17.78 CM) |
| WEIGHT | 14.33 LB (6505.82 G) |
| UPC # | 810053350539 |
Additional Information
| Product Videos | |
|---|---|
JONARD TOOLS COATED FIBERGLASS RODDER, 3/16" X 300' (ROD-3316) PRODUCT VIDEO |
What's In The Box
What’s In The Box
- Qty 1 - 3/16" Fiberglass Rodder, Fiberglass Core w/ Plastic Coating, 10'-300' Length 300ft
