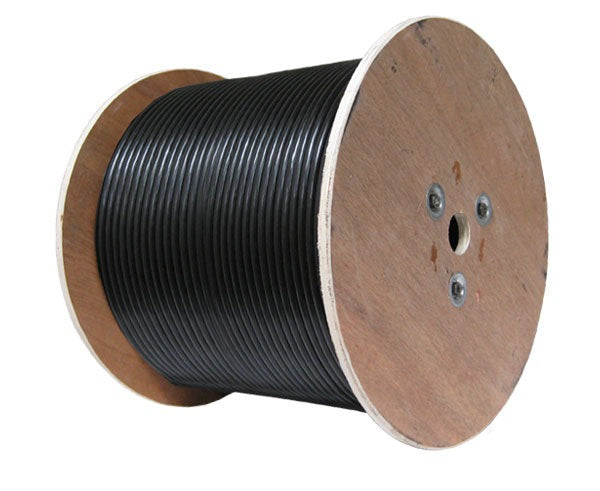

Coaxial Cable-MIG-240 Low Loss RF Communications,, Solid BC Conductor, 95% TC Braiding, AL Foil Shield, 250', 500' & 1000' - Black

$279.00
SKU: CC-4057-240-1000FT
Length
Various lead times may apply to this product. Please contact us for more details.
UL Compliant RoHS Compliant

NOTE: 250 ft & 500 ft lengths are considered to be custom length cuts and can not be returned and/or refunded.

(Equivalent to Times Microwave's LMR™ 240)

Description

MIG-240 Low Loss Coaxial Cable, Solid BC Conductor, Bonded AL/Foil, 95% TC Braided


Our MIG-240 Coaxial Cable is commonly used for short Antenna Feeder Runs, Drop-in replacement for RG-58 and RG-142 and any application requiring an easily routed low loss RF cable. The MIG-240 Coax Cable has a denser jacket and thicker conductor then RG11, so it can transfer data at double the speed. We supply only high performance coaxial cable for data networking and radio applications. MIG-240-Series cable offers equivalent or better characteristics and performance than other existing industry cables. We supply dual shield cable to maximize signal retention for even sharper, clearer digital pictures.

Applications

Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals.

Product Quality

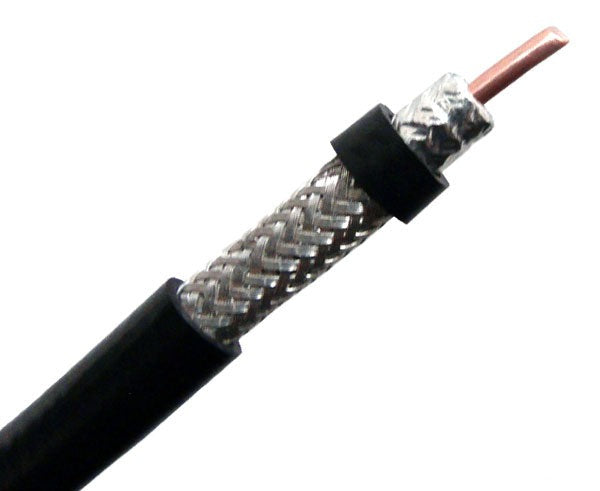

Our high quality MIG-240 Low Loss RF Coax Cable consists of a 1.42mm solid Bare Copper (BC) inner conductor. It is wrapped in a dielectric polyethylene insulation. This MIG-240 Coaxial Cable comes with 95% Tinned Copper (TC) braid shielding and Bonded AL Foil. The cable is covered with a flame rated PVC jacket (CM)for outdoor use.

Where to use MIG-240 Low Loss RF Coaxial Cable

Our MIG-240 Low Loss RF Coax Cable is excellent for short Antenna Feeder Runs, Drop-in replacement for RG-58 and RG-142 and any application requiring an easily routed low loss RF cable. The cable's jacket is designated CM, CL2 for Coaxial Cable use in outdoor areas. The MIG-240 Coaxial Cable tops out at 50 ohms.


Signal Loss Comparison Chart by Cable Type

Cable Type Attenuation (Loss) @ 2.4 GHz Attenuation (Loss) @ 5.8 GHz
RG-58 24.775 dB/100foot
81.288 dB/100meter
41.122 dB/100foot
134.921 dB/100meter
100 Series 38.916 dB/100foot
127.685 dB/100meter
64.098 dB/100foot
210.307 dB/100meter
195 Series 18.61 dB/100foot
61.061 dB/100meter
29.903 dB/100foot
98.113 dB/100meter
200 Series 16.512 dB/100foot
54.178 dB/100meter
26.353 dB/100foot
86.464 dB/100meter
240 Series 12.651 dB/100foot
41.509 dB/100meter
20.35 dB/100foot
66.769 dB/100meter
400 Series 6.614 dB/100foot
21.703 dB/100meter
10.821 dB/100foot
35.504 dB/100meter
600 Series 4.325 dB/100foot
14.19 dB/100meter
7.261 dB/100foot
23.825 dB/100meter
Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.

Features

Features

  • Antenna Cable Runs to Base Stations, Access Points (AP), Bridges or CPE
  • Cabling Between any WiFi or WiMax Antenna and the Associated Equipment
  • Indoor or Outdoor Use
  • UV coated for outdoor usage
  • Land Mobile Radio (LMR™)
  • Local MultiPoint Distribution System (LMDS)
  • Multi-Channel Multi-Point Distribution Service (MMDS)
  • Wireless Local Loop (WLL)
  • Direct Burial or Tower Use
  • Personal Communication Systems (PCS)
  • Short Antenna Feeder Runs
  • Fixed Wireless
  • Ham Radio
  • UL Listed
  • RoHS Compliant

Applications:

  • GPS
  • WLAN
  • WISP
  • SCADA

Specifications

Specifications


Physical Construction

Conductor Size: 1.42mm
Conductor Material: Solid Bare Copper (BC)
Dielectric Material: Foam PE
Inner Shielding: AL/P/AL Foil Bonded
Inner Shielding: 95% TC Braiding
Outer Jacket Material: FRPVC

Electrical Characteristics

Nominal Impedance: 50 Ohm
Nominal Velocity of Propagation: 84%
Nominal Capacitance: 79.8 Pf/M / 24.5Pf/ft
DC Resistance/Inner Conductor: 10.83 Ohm/Km
DC Resistance/Outer Conductor: 12.76 Ohm/Km
DC Test Voltage: 1500V

Mechanical Characteristics

Storage Temperature Range: -20℃ to +60℃
Installation Temperature Range: 0℃ to +45℃
Operating Temperature Range: -20℃ to +60℃
Tensile Strength: 36kg / 80lbs
Minimum Bend Radius: 19.10mm / 0.75 in

Additional Information

Additional Information

To learn more about our MIG-240 Bulk Coaxial Cable here is a link to a page containing more information on our premium MIG-240 Bulk Coaxial Cable.

What's in the Box

What's in the Box

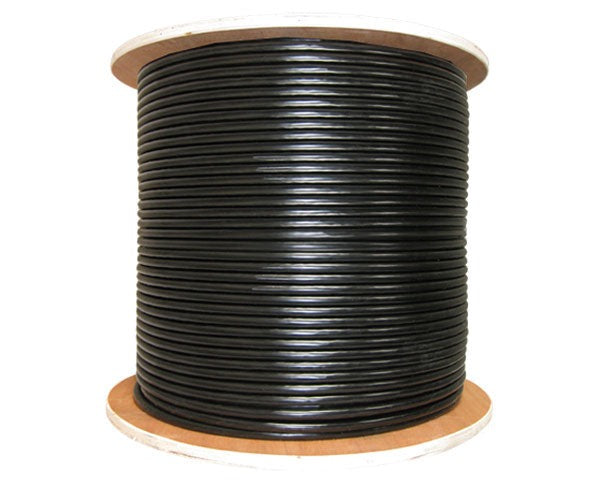

  • MIG-240 Low Loss RF Black Coax Cable
  • 250 ft, 500 ft, or 1,000 ft Increments
