Coaxial Cable-MIG-600 Low Loss RF Cable, Solid BCCA Conductor, 90% TC Braiding, AL Foil Shield, 250ft, and 500ft - Black

$598.99
SKU: CC-4059-600
Length
UL Listed    RohHS Compliant

NOTE: The 250 ft length is considered to be custom length cuts and can not be returned and/or refunded.

Description

MIG-600 Low Loss RF Cable, Solid BCCA Conductor for the Wireless Industry

Our MIG-600 Coaxial Cable is commonly used for short Antenna Feeder Runs, Drop-in replacement for RG-8 and any application requiring an easily routed low -oss RF cable. The MIG-600 Coax Cable has a denser jacket and thicker conductor than RG11, so it can transfer data at double the speed. We supply only high-performance coaxial cables for data networking and radio applications. MIG-600-Series cable offers equivalent or better characteristics and performance than other existing industry cables. We supply dual shield cables to maximize signal retention for even sharper, clearer digital pictures. Our MIG-600 series low-loss coaxial cable is designed for low-loss general-purpose applications with flexible outer insulation for a superior bend radius.

This cable is compatible with our CN3-2147-BNC RG59 Connector or CN3-2148-BNC RG59 Connector.

Applications

Coaxial Cable is used to transmit radiofrequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. Cable is used for antenna coaxial cable applications.

Product Quality

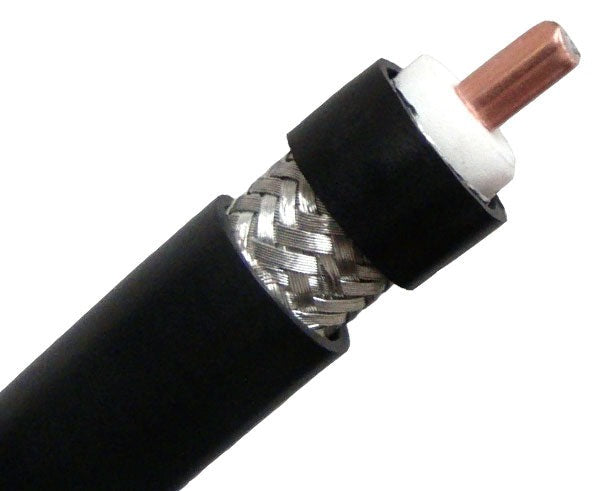

Our high-quality MIG-600 Low Loss RF Coax Cable consists of a 4.47mm solid Bare Copper (BC) inner conductor. It is wrapped in dielectric polyethylene insulation. This MIG-600 Coaxial Cable comes with 90% Tinned Copper (TC) braid shielding and Bonded AL Foil. The cable is covered with a flame-rated PVC jacket (CM)for outdoor use.

Antenna coaxial cable

Where to use MIG-600 Low Loss RF Coaxial Cable

Our MIG-600 Low Loss RF Coax Cable is excellent for short Antenna Feeder Runs, Drop-in replacement for RG-8 and any application requiring an easily routed low loss RF cable. The cable's jacket is designated CM, CL2 for Coaxial Cable use in outdoor areas. The MIG-600 Coaxial Cable tops out at 50 ohms.

Signal Loss Comparison Chart by Cable Type

Cable Type Attenuation (Loss) @ 2.4 GHz Attenuation (Loss) @ 5.8 GHz
RG-58 24.775 dB/100foot
81.288 dB/100meter
41.122 dB/100foot
134.921 dB/100meter
100 Series 38.916 dB/100foot
127.685 dB/100meter
64.098 dB/100foot
210.307 dB/100meter
195 Series 18.61 dB/100foot
61.061 dB/100meter
29.903 dB/100foot
98.113 dB/100meter
200 Series 16.512 dB/100foot
54.178 dB/100meter
26.353 dB/100foot
86.464 dB/100meter
240 Series 12.651 dB/100foot
41.509 dB/100meter
20.35 dB/100foot
66.769 dB/100meter
400 Series 6.614 dB/100foot
21.703 dB/100meter
10.821 dB/100foot
35.504 dB/100meter
600 Series 4.325 dB/100foot
14.19 dB/100meter
7.261 dB/100foot
23.825 dB/100meter
Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.

Features

Features

  • Antenna Cable Runs to Base Stations, Access Points (AP), Bridges or CPE
  • Cabling Between any WiFi or WiMax Antenna and the Associated Equipment
  • Indoor or Outdoor Use
  • UV Coated for Outdoor Usage
  • Local MultiPoint Distribution System (LMDS)
  • Multi-Channel Multi-Point Distribution Service (MMDS)
  • Wireless Local Loop (WLL)
  • Direct Burial or Tower Use
  • Personal Communication Systems (PCS)
  • Short Antenna Feeder Runs
  • Drop-in Replacement for RG-8 / 9913 Dielectric Cable.
  • Jumper Assemblies in Wireless Communications Systems.
  • Applications Requiring Easily Routed, Low Loss RF Cables.
  • Fixed Wireless
  • Ham Radio
  • UL Listed
  • RoHS Compliant

Applications:

  • GPS
  • WLAN
  • WISP
  • SCADA

Specifications

Specifications

Physical Characteristics

Conductor Size 4.47mm
Conductor Material Solid Bare Copper Clad Aluminum (BCCA)
Dielectric Material Foam PE
Inner Shielding AL/P/AL Foil Bonded
Inner Shielding 90% TC Braiding
Outer Jacket Material FR-PVC

Electrical Characteristics

Nominal Impedance 50 Ohm
Nominal Velocity of Propagation 87%
Nominal Capacitance 76.8 Pf/M
DC Resistance/Inner Conductor 4.49 Ohm/Km
DC Resistance/Outer Conductor 5.61 Ohm/Km
DC Test Voltage 1500V

Mechanical Characteristics

Storage Temperature Range -20°C to +60°C
Installation Temperature Range 0°C to +45°C
Operating Temperature Range -20°C to +60°C
Tensile Strength 73kg / 160lbs
Minimum Bend Radius 25.40mm / 1.0 in

Additional Information

Additional Information

To learn more about our MIG-400 Bulk Coaxial Cable here is a link to a page containing more information on our premium MIG-400 Bulk Coaxial Cable. If you need assistance selecting a compatible connector, please contact us.

What's in the Box

What's in the Box

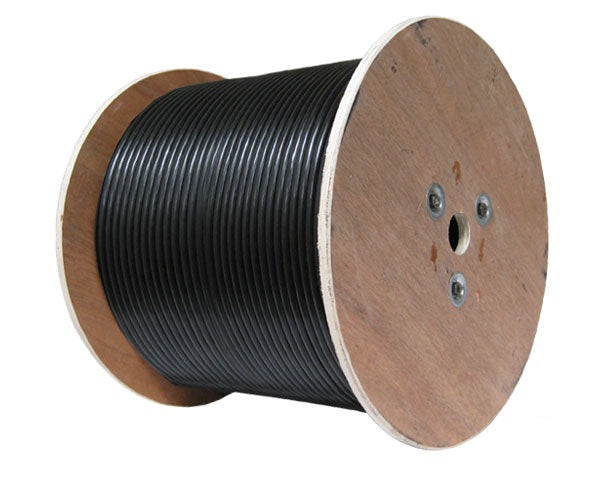

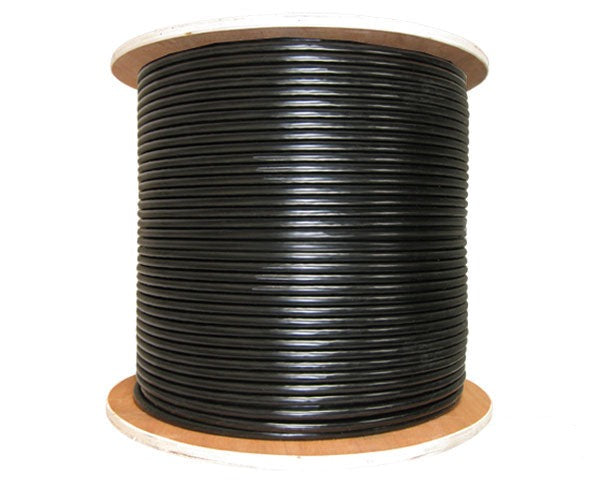

  • 250ft or 500ft Increments on a Spool
  • MIG-600 Low Loss RF 600 Black Coax Cable
