Commercial Application 300V Plenum (CMP) Rated Each Pair Shielded
Description

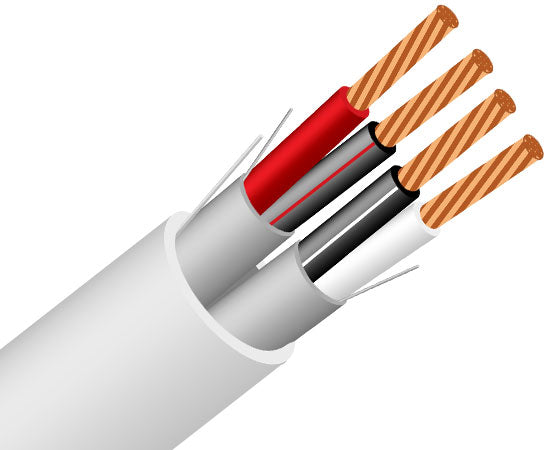

Communication Control Plenum Cable 22AWG 2 Pair 4 Conductors 7 Strand Each Pair Shielded
Crafted with bare copper conductors, low smoke PVC insulation, and individual shielded pairs, our Communication and Control Cable ensures reliable signal transmission. It features short overall twist lengths, a drain wire, and a white low-smoke PVC jacket. Plus, sequential footage markings on the jacket aid in easy installation.
Features
Features
- Bare Copper Conductors
- White Low Smoke PVC Jacket
- Individual Shielded Pairs
- Drain Wire
- Short Overall Twist Lengths
Applications:
- Security Systems
- Intercom Systems
- Sound/Audio System
- Power-Limited Controls
Specifications
Specifications
Technical Specs |
|
|---|---|
| Conductor | Stranded Bare Copper |
| Insulation | .007" (0.1778mm) |
| Jacket | Low Smoke PVC |
| Shield | Aluminum Mylar |
| NEC Articles | 760/800 |
| Voltage Rating | 300 Volts |
| Temp. Rating | -5°C to 75°C |
| Applications: | Security Systems | Power-Limited Controls | Sound/Audio Systems | Intercom Systems |
| AWG / Cond | Strand | Outer Jacket Thickness | Nominal OD | Pairs | ||
| 22/2 | 7 | .018 Inches | .46mm | .148 Inches | 3.76mm | 2pr Shielded |
What's in the Box
What's in the Box
- Quantity: 1000 Foot Reel
- Communication and Control Cable
