Description

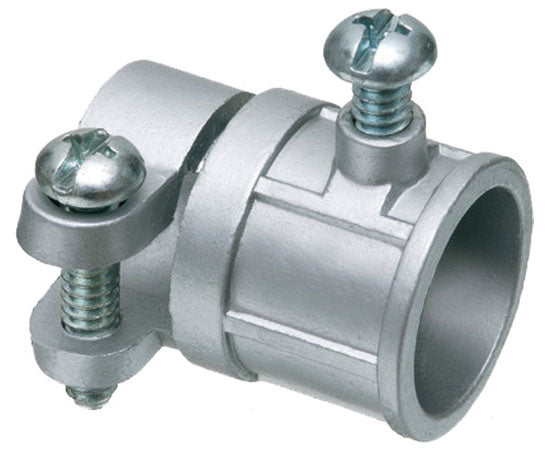

EMT Combination Coupling
Combination Coupling EMT (1/2"-3/4") to flex (3/8"-3/4")Our combination couplings connect EMT to flexible metal conduits. This product is constructed to ensure that there is mechanical protection to the inside components, also this product is zinc electroplated for excellent corrosion protection in damp locations.
Combination Couplings EMT (1/2"-3/4") to Flex (3/8"-3/4")These combination couplings are used to connect EMT to flexible metal conduits. Our combination couplings have a construction that ensures mechanical protection. Combination Couplings are also zinc electroplated for excellent corrosion protection in damp locations.
Specifications
Specifications

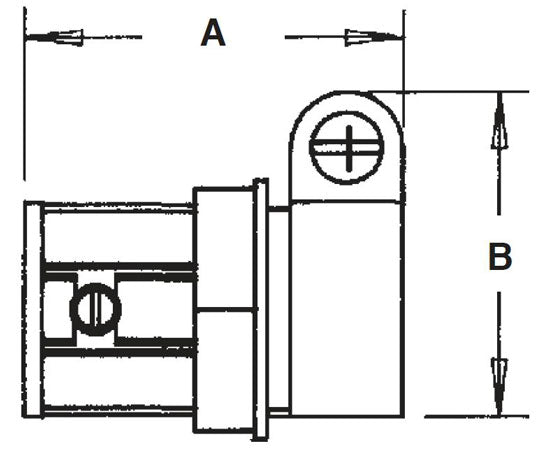

| Part Number | EMT Size | Flex Size | Dim A | Dim B | Dim C | Cable Range |
|---|---|---|---|---|---|---|
| 860 | 1/2" | 3/8" | 3.5 |
5.25 | 3.75 | .530-.620 |
| 861 | 1/2" | 1/2" | 3.5 | 5.25 | 7.75 | .850-.910 |
| 862 | 3/4" | 3/4" | 3.5 | 5.25 | 7.75 | 1.100-1.130 |
What’s In The Box
What’s In The Box
- Qty 1 - EMT Flex Coupling, Zinc die-cast
