Commercial Overhead Door Surface Mount Switch Set - 4110/4482 Series

by GRI
SKU: 4482A
Cable Type
Loop Type
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable


Commercial Overhead Door Surface Mount Switch Set - 4110/4482 Series

The 4110/4482 Series is basically a “vane” switch for use on storage units with overhead doors and latch type locks. Intended to be mounted on a roll up type door channel, these Vane Switches will not allow the alarm system to arm unless the bolt or latch, which serves as a “shunt” between the reed switch and magnet, is in a locked position. Removal or tampering of the bolt or latch removes the shunting effect and an alarm will be activated when the circuit is opened.

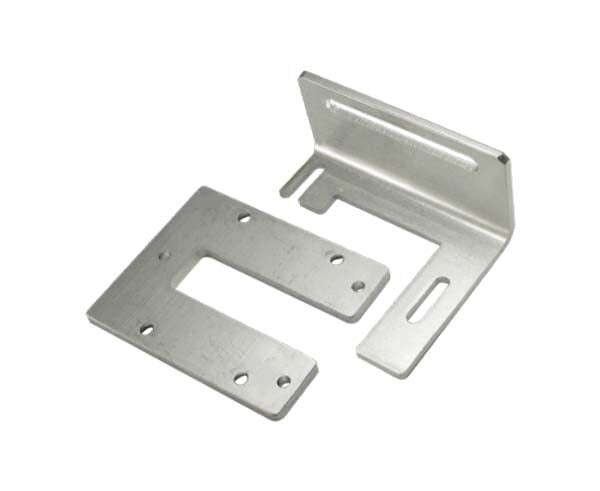

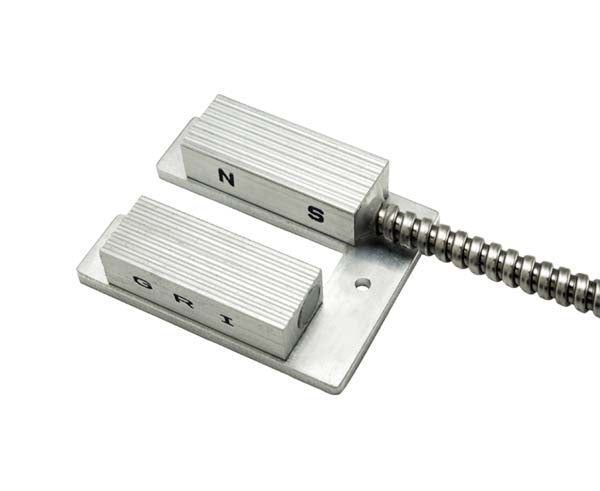

The 4110 series is available with 18” stainless steel armored cable (4110A) or 18” jacketed cable (4110). It is a low profile, extruded aluminum switch mounted on an aluminum plate. Optional mounting kit available. All necessary mounting hardware is also provided.

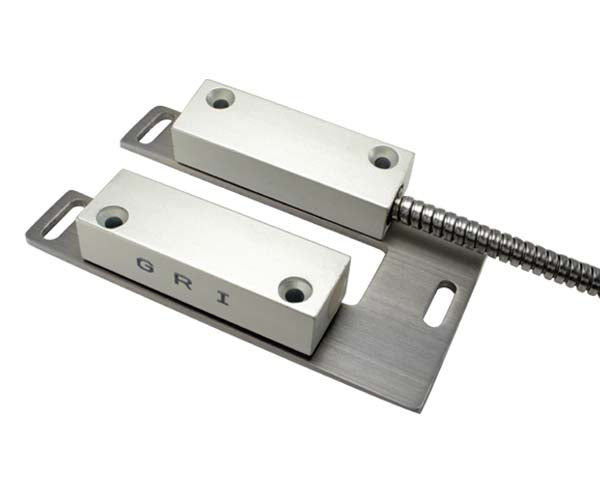

For door applications with larger tracks, we now offer a larger heavy duty vane switch. The 4482 has 36” jacketed cable and the 4482A has 36” armored cable. Overall dimensions for the 4482 are 4.5” x 2.75” x .75”. Mounting plate and hardware provided.


  • Latch Type Door Protection
  • Vane Switch Shunt
  • Cost Effective
  • Easy Installation
  • Mounting Bracket Included
  • Armored Cable or Jacketed
  • Made In U.S.A


Installation Information

Now you can confirm the locking bolt position on a roll up or other overhead door. The 4110 uses a simple magnetic blocking principal in this specialized security switch. Doors using a latching type flat bolt, which extends through a slot in the channel on the doors edge, can now both lock the door and verify to the alarm panel that the door is locked in the closed position.

The Switch is to be installed on the slotted channel in such a way that when the door is locked, the bolt will pass between the uprights of the switch

Note: Mounting screws are installed from the inside of the track and will not interfere with the wheels.

What's In The Box

  • 1 x Commercial Overhead Door Switch
