Description

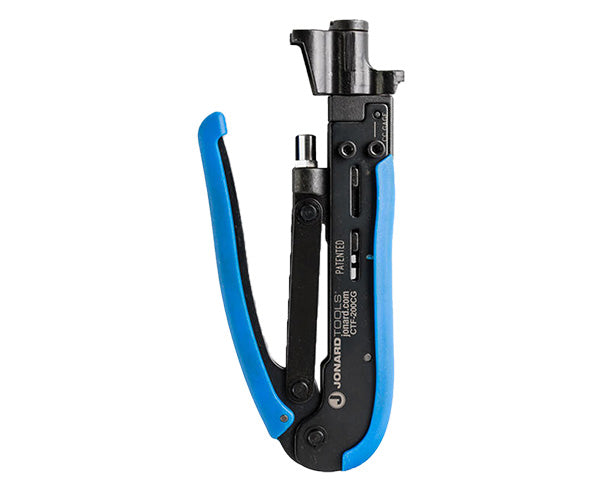

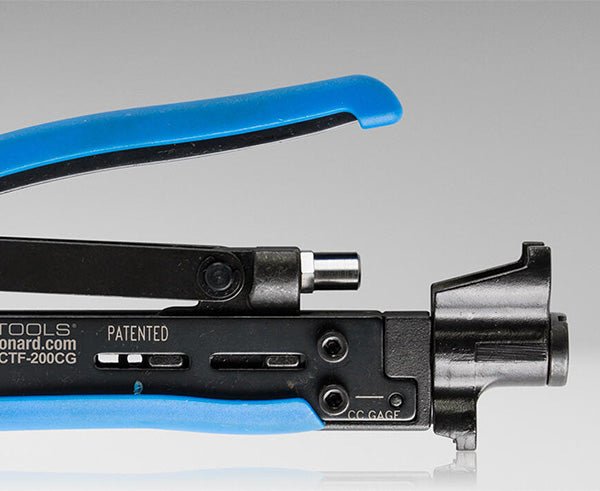

Compression Tool Fixed - CG Long Style F Connectors
This PATENTED Fixed Design Long CG Compression Tool is designed for use on long style Corning Gilbert F connectors. The tool is ideal for installing CATV network cables using Corning Gilbert connectors as well as other brands of connectors such as PPC and Thomas & Betts.
Features
Features
- Rotatable head to accommodate various connectors such as RG6 and RG11 quickly and easily
- Made of durable high carbon steel with a black oxide finish
- Plastic grips provide a comfortable and ergonomic experience
- Fixed design so no adjustments are needed
Compatible Connectors:
- Corning Gilbert: GF-UE, GF-UR, GAF-URS, GF-SFC, GF-EFC Series Connectors
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Model | CTF-200 |
| TOOL SPECIFICATIONS | |
| Connector Type | F Long |
| PHYSICAL CHARACTERISTICS | |
| Material | Carbon Steel |
| Length | 6-3/4” (171 mm) |
| Weight | 0.967 lbs (438.62 g) |
| IDENTIFICATION | |
| UPC # | 811490012356 |
Additional Information
| Compression Tools by Jonard |
|---|
What's In The Box
What’s In The Box
- Compression Tool Fixed - CG Long Style F Connectors
