Description
Further Protect and Shield Your Network

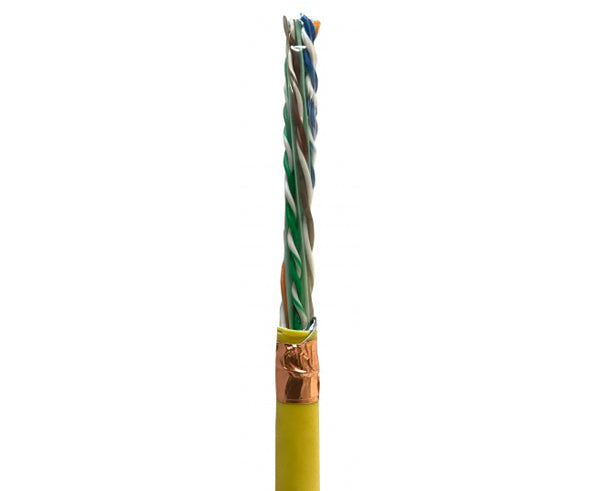

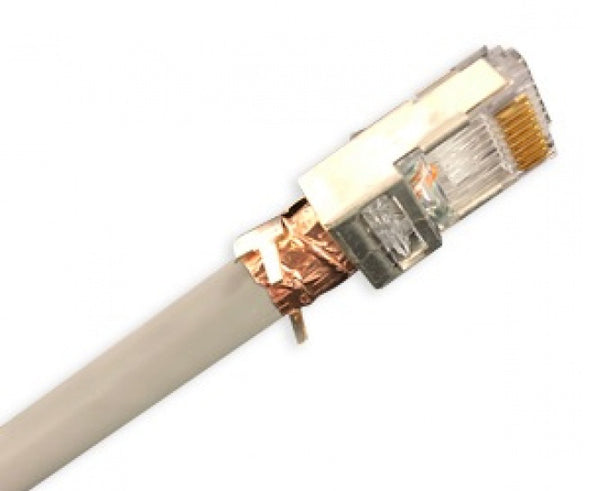

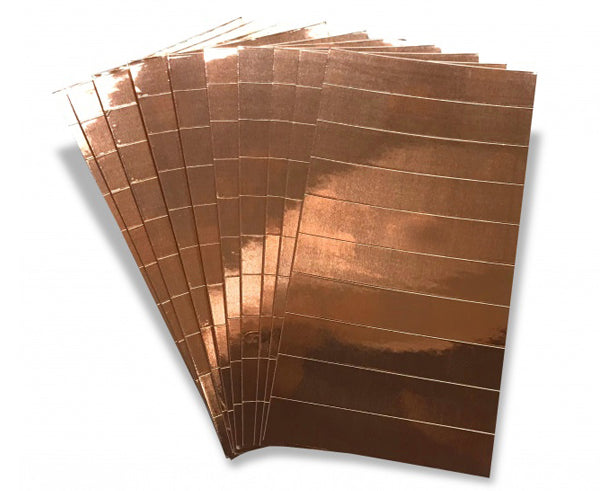

The copper foil strips are typically wrapped around the cable to cover the ground wire before installing the connector. This is a perfect way to protect your cables against electrical interference and improve your bandwidth performance. These copper foil strips are ideal to use with our shielded RJ45 connectors and shielded keystone jacks. The copper strips come ten to a sheet, already scored for easy removal.
Looking For RJ45 Accessories?
Please consider us for any of your other networking needs. We've got bulk cable, many styles of keystone jacks, and other items. Thank You.
Features
Features
- Ideal for shielded RJ45 connectors and shielded keystone jacks
- Improves bandwidth performance
- Shields against EMI/RFI
- 10 strips per sheet (10 sheets per pack) 100 pcs
- Conductive adhesive
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| COPPER FOIL STRIPS | |
| BASE MATERIAL | COPPER FOIL |
| BASE MATERIAL CHARACTERISTIC | XYZ AXIS CONDUCTIVE |
| COMPOSITION OF ADHESIVE | 99.95% CU |
| THICKNESS OF MATERIAL | 0.025MM±10% |
| ADHESIVE | CONDUCTIVE ACRYLIC ADHESIVE |
| COMPOSITION OF ADHESIVE (DETAILED) | ACRYLIC ACID + NI |
| THICKNESS OF ADHESIVE | 0.03MM±10% |
| LINER | SINGLE-SIDED RELEASE PAPER WITH WHITE COLOR |
| WEIGHT OF LINER | 140G±10% |
| THICKNESS OF LINER | 0.15MM±10% |
| TOTAL THICKNESS | 0.05MM±10% |
| HEAT RESISTANCE (ASTM-1000) | -10°C ~ 120°C |
| PEEL OFF STRENGTH (WITH METAL PLATE) (ASTM-1000) | ≥1.0KG/25MM |
| SHIELDING EFFECTIVENESS (SJ-20524-1995) | 60DB (10MHZ ~ 3GHZ) |
| COPPER SURFACE RESISTIVITY (ASTM-100) | 0.015Ω |
| ADHESIVE SURFACE RESISTIVITY (ASTM-1000) | ≤0.08Ω |
Additional Information
What’s In The Box
What's In The Box
- Qty 100 - Copper Foil Strips - 10 strips per sheet (10 sheets per pack)
