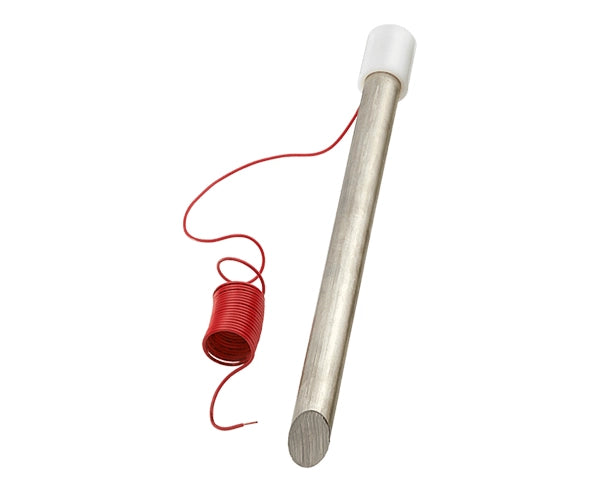

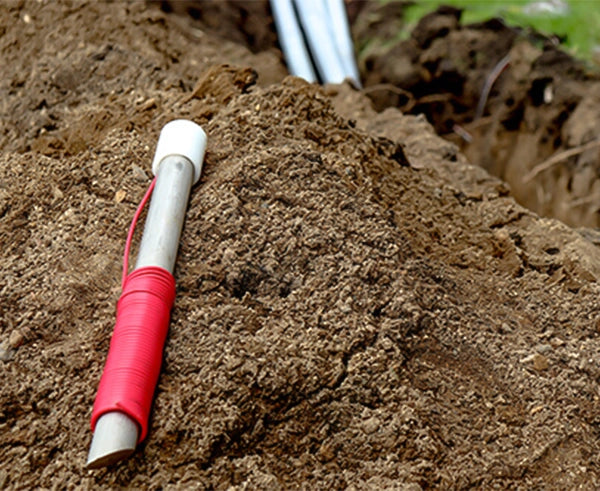

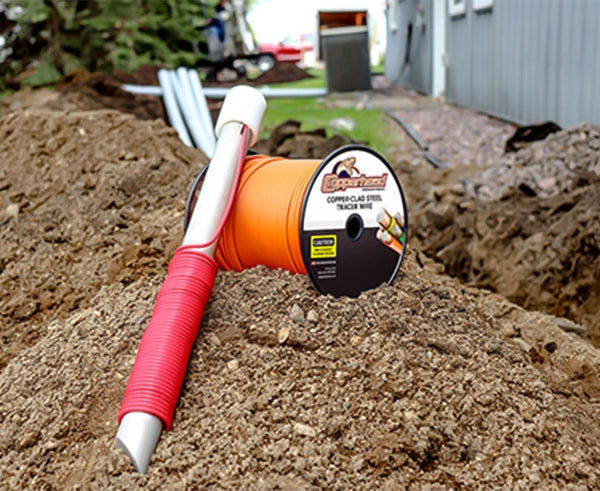

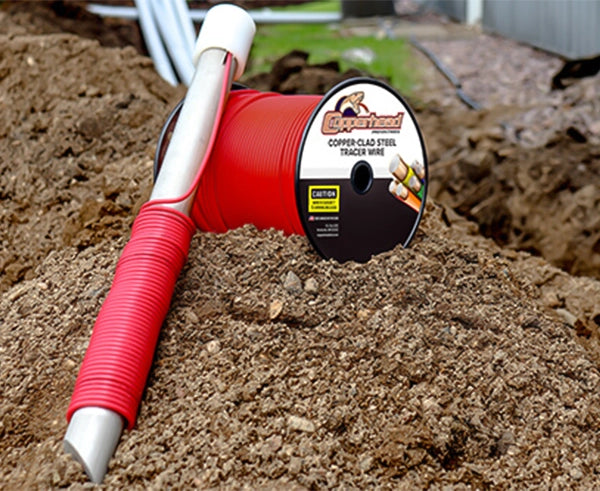

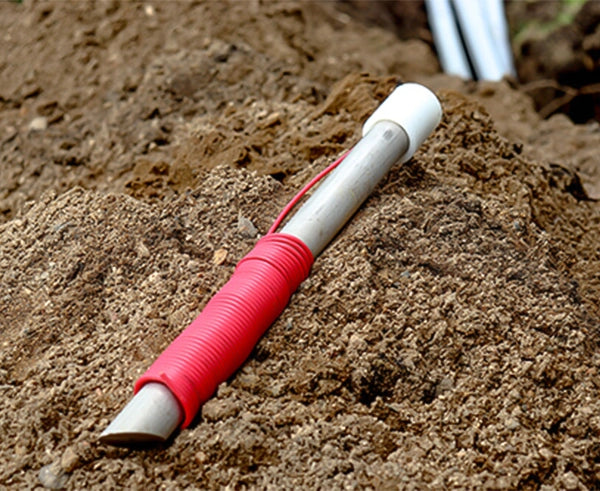

Copperhead Ground Rod with Twist-On Connector
The 1.5-lb drive-in magnesium Ground Rod pulls a low-voltage electrical signal along the target tracer wire and delivers the signal to earth, where it travels back to the ground established at the locate transmitter. The Ground Rod is essential in completing the electrical circuit needed for successful utility locating.
Locating an underground utility using tracer wire is accomplished by placing a low-voltage charge on a target tracer wire. When the tracer wire system is grounded properly with Ground Rods, a complete electrical circuit is created for accurate locates. Be sure to ground all tracer wire dead ends. Available in 12 AWG and 14 AWG wire configurations.
Made in the USA. BABA compliant.
- 1.5 lb drive-in magnesium ground rod grounds tracer wire effectively
- HDPE cap provides a sturdy drive-in surface area for installation
- 20' copper-clad steel (CCS) wire with 30 mil HDPE insulation
- CCS wire rated for direct bury use at 30 volts with 21% conductivity
- Includes waterproof Twist-on Connector for direct tracer wire connection
- Essential for completing the electrical circuit needed for accurate locates
- Grounding all tracer wire dead-ends is critical for system performance
- Compatible with Copperhead SnakePit® and Cobra™ Access Points
- Flexible ground rod placement due to 20' wire length
Features
Features
- 1.5 lb Magnesium Ground Rod – Drive-in design for easy installation and effective grounding of tracer wire systems
- Sturdy HDPE Cap – Provides a durable surface area for driving the ground rod into various soil conditions
- 20' Copper-Clad Steel Wire – Allows flexible placement with 30 mil HDPE insulation and 21% conductivity rating
- Waterproof Twist-On Connector – Included SCB-01 connector enables secure, weatherproof splicing to tracer wire
- Complete Electrical Circuit – Essential component for pulling low-voltage charge from the locate transmitter through the tracer wire to earth
- Direct Burial Rating – CCS wire rated for 30 volts direct bury applications with superior corrosion resistance
- Versatile Connection Options – Connects directly to tracer wire or integrates with Copperhead Access Point systems
Specifications
Specifications
| Ground Rod Material | Magnesium |
| Ground Rod Weight | 1.5 lbs |
| Drive Cap Material | HDPE (High-Density Polyethylene) |
| Wire Length | 20 feet |
| Wire Type | Copper-Clad Steel (CCS) |
| Wire Insulation | 30 mil HDPE |
| Voltage Rating | 30 volts (direct bury) |
| Conductivity | 21% IACS minimum |
| Available Wire Gauges | 12 AWG (ANO-12), 14 AWG (ANO-14) |
| Included Connector | Twist-on Connector (SCB-01) |
| Dimensions (inches) | A: 2.00, B: 0.81, C: 0.62 |
| Installation Method | Drive-in |
| Compatibility | SnakePit® and Cobra™ Access Points |
| Country of Origin | USA |
| Compliance | BABA |
Additional Information
Additional Information
What's in the Box
What's in the Box
- 1.5 lb Magnesium Ground Rod with HDPE drive cap
- 20' Copper-Clad Steel wire (12 AWG or 14 AWG as specified)
- Waterproof Twist-on Connector (SCB-01)
- Installation instructions
