Plunger Switch 3/8in Diameter - PB/PBF-2020 Series - 10 Pack
These products are all Made to Order
Which means they are non-cancelable and non-refundable
Plunger Switch 3/8” Diameter - 10 Pack
The PB-2020 switch series is a unique switch package, designed to incorporate a plunger or push-to-activate function into the shortest, most compact package available. Promoted as a solution to securing the newest generation of vinyl extruded or custom type windows, installation requires that a single hole be drilled, usually into the window frame, eliminating the troublesome and potentially costly hole in the window sash.

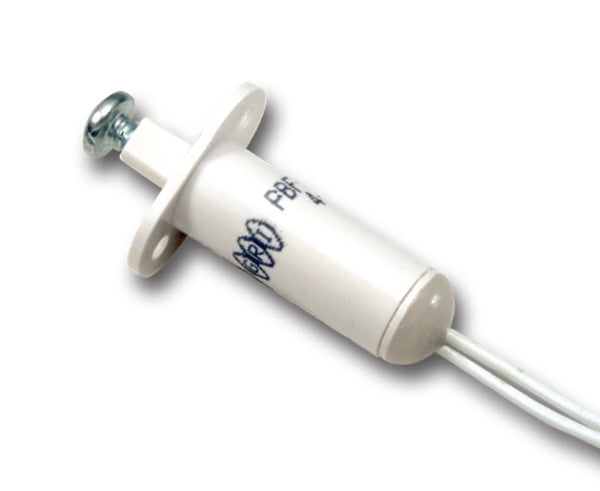

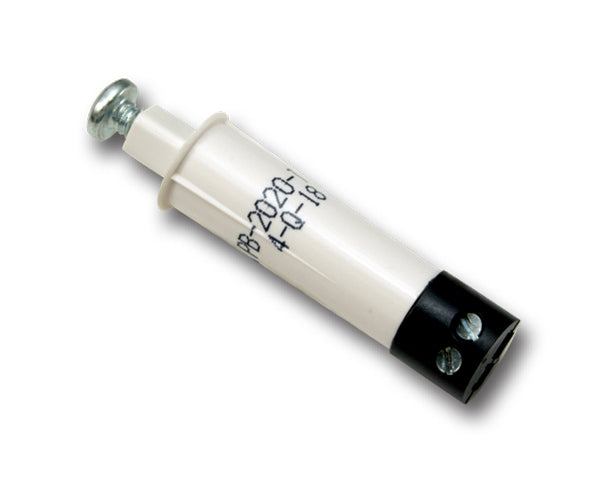

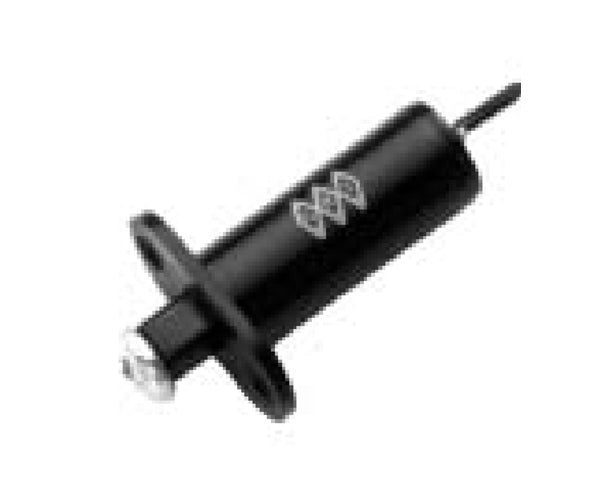

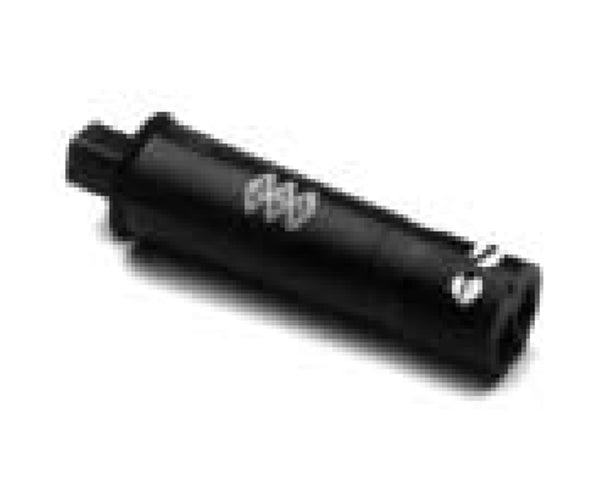

Available as a press fit or screw mount with an adjustable plunger, the PB-2020 and PBF-2020 may be the most versatile reed switch to date.
- Adjustable Screw Plunger
- 3/8” Diameter
- Single Drill Hole
- Press Fit or Flange
- Lifetime Warranty
- White, Brown and Gray
- 12” 22 AWG Leads or Screw Terminals
- Made In U.S.A.
Installation requires that a single 3/8™ hole be drilled, usually into the window frame, eliminating the troublesome and potentially costly hole in the window sash. Make certain to properly adjust screw plunger prior to complete closing of window. Improper initial adjustment of screw could cause damage to the switch, resulting in a malfunction.
Measure gap from the mounting surface. Press plunger down on the switch and adjust screw so distance between top of screw and the mounting surface is 1/32™ (.0312) less than gap. If gap is 3/16™ or less, remove adjusting screw. Determine maximum plunger extension PRIOR to closing window or protected opening. Improper initial adjustment of screw could cause damage to the switch.
Caution: For best performance, it is recommended that the installer slightly over drill the hole for the switch and make certain hole is free of debris. If the hole is too tight, it can interfere with operation of the switch. Do NOT paint the switch or spray or apply any lubricating material to this switch. Lubricants tend to collect dust, sand and other small items of debris. Any lubricant applied to the plunger switch will obstruct or at least hamper the performance. This switch is not recommended for the bottom track of windows or sliding doors.
What's In The Box
What's In The Box
- 10 x Push Button Plunger Switches
