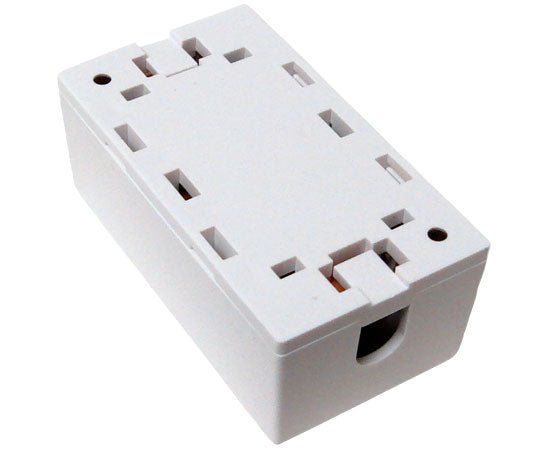

CAT6A Junction Box, 110 Punch Down Style
Junction box is for splicing two Ethernet CAT6A cables together for a permanent connection without the use of connectors or couplers. If you're going to join two wires together permanently, it's best to have as direct a connection as possible. The punch down connection provides secure continuity. This product also supports PoE++ (802.3bt) 4PPoE, up to 100W.
Features
Features
- 110 and Krone punch down type
- For use with CAT6A cable
- Supports PoE++ (802.3bt) 4PPoE, up to 100W
- UL 94V-0
- ABS+PC housing
- Wire gauge: 22 to 26 AWG solid and stranded wire
- 568A/568B color coded
- Zip ties, adhesive pad, and mounting screws included.
- Mounting screws located inside box
Specifications
Additional Information
To learn more about our Surface Mount Boxes here is a link to a page containing more information on our premium Surface Mount Boxes.
What's in the Box
What’s in the Box
- Qty 1 – White junction box enclosure (UL-listed ABS plastic, 110/Krone punch-down style)
- Qty 1 – Pre-installed wiring terminals (568A/568B color-coded for TIA/EIA standards)
- Qty 1 – Mounting screws (located inside the box for surface installation)
- Qty 1 – Quick installation guide
