SC/UPC 1 Fiber Single Mode Pigtail, Jacketed
SC/UPC 1 Fiber Single Mode Pigtail, Jacketed
BY Primus Cable
SKU: SKU: NPNB-104023
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full detailsDescription

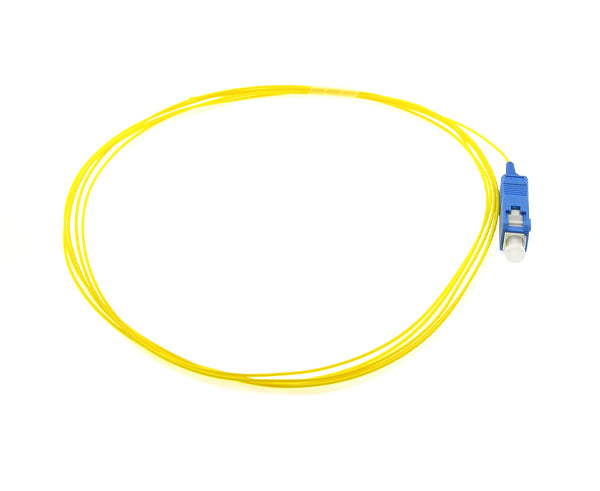

SC Fiber Pigtail, 1 Strand Jacketed, Single Mode UPC Polish
Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. They are quality tested to meet fiber industry standards and the most stringent performance specifications. Each strand is terminated on one end and the other end is left blunt so that it can be spliced to your drop cable to eliminate the need for field terminations. This fiber pigtail comes with an OFNR/LSZH outer jacket to help protect the tight buffer fibers. The outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space. These SC pigtails are a Single Mode design, and come in either 2 or 3 meters in length.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
- Low Insertion Loss
- Low Back Reflection Loss
- Ideal for Telecommunication Networks
-
Meets ISO9001 and RoHS
Specifications
- Connector Type: SC Single Mode
- Strand Count: 1
- Polish Type: UPC
- Return Loss: 55dB
- Insertion Loss: 0.30dB
- Length: 2-3m
- OD: 0.9mm
- Ferrule: Ceramic Zirconia
- Operation Temperature: -20°C to 70°C
- Jacket Type: OFNR/LSZH
- Jacket Color: Yellow
Additional Information
Fiber pigtails are great for splicing into wall mount fiber enclosures and fiber patch panels. Also, ensure the protection of your fusion splices by using a splice tray and fusion splice sleeves.
Other helpful tools when working with fiber optic pigtails:
-
- Fiber cleaver
- Fusion splicer
What's in the Box
- Qty 1 – 2 m LC/UPC single‑mode fiber pigtail (900 µm buffered, yellow LSZH jacket)
- Qty 1 – Dust cap for the LC ferrule
- Qty 1 – Heat‑shrink splice‑protection sleeve (for fusion splicing the bare end)
- Qty 1 – Anti‑static polybag or protective pouch, labeled with part number
- Qty 1 – Instruction leaflet or brief datasheet summary
- Qty 1 – 3M warranty and compliance sheet
