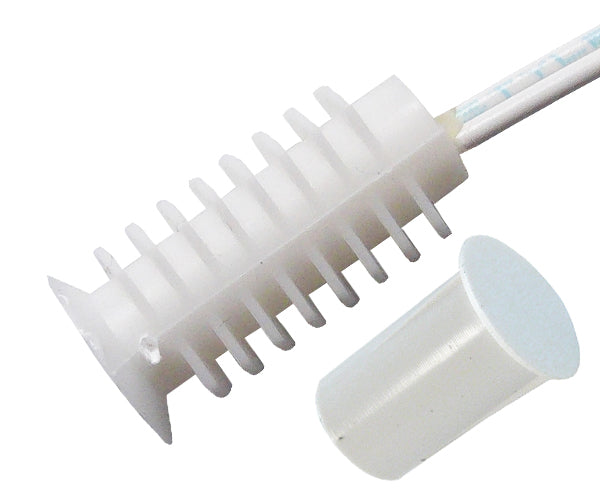

Recessed 3/8” Ribbed Switch Set
The 2120 Ribbed Switch, designed to complete a multi-task role, is a unique combination of special features and materials. The unusual ribbed outside diameter permits a secure mounting over a wide range of drilled hole sizes. The installer does not have to glue this recessed switch into a slightly oversized hole, as the flexible ribs conform as it is pressed into the wood. Self adjusting to fit the larger hole, the 2120 also centers itself to the coverage of the misdrilled hole. Picked especially for the 2120 Ribbed Switches, a new material with enhanced memory properties allows the ribbed “O” rings to flex enough to fit an undersized hole but still maintain a firm holding force in an oversized hole. This mix of features yields an additional bonus in that it provides a high degree of protection from crushing, such as that encountered when wood swells or headers shift.
Finally, for installations utilizing an angled wire path away from the hole drilled for the switch barrel, the 2120 merely needs to be aligned with one flat side along the path drilled for the lead wire and press fit. The ribbed rings, not being continuous, simply adjust to the wire and allow for an easy and quick install.
Features
Features
- Recessed Magnetic Contact
- Press To Fit
- 12” #22AWG Leads
- Longer Leads, Zip Cord or Jacketed Cable Upon Request
- Hermetically Sealed
- Plated Contacts Resist Sticking or Freezing
- Built-in E.O.L. Resistors and Diodes Upon Request
- Supervisory Loops Upon Request
- Switches and Magnets Available Separately
- Protects Reed From Swelling Wood and Header Shift
- Covers Over-drilled Holes
- Self-centering
- Solves Angled Wire Path Problems
- Ribbed Design Allows Secure Fit
- Color: White, Brown
- Lifetime Warranty
- Made in U.S.A.
Specifications
Specifications
What's In The Box
What's In The Box
- Qty 10 - Ribbed press fit magnetic recessed switches
- Qty 10 - Bare earth magnets
- Qty 10 - 22AWG leads
- Stainless steel mounting screws
