Description

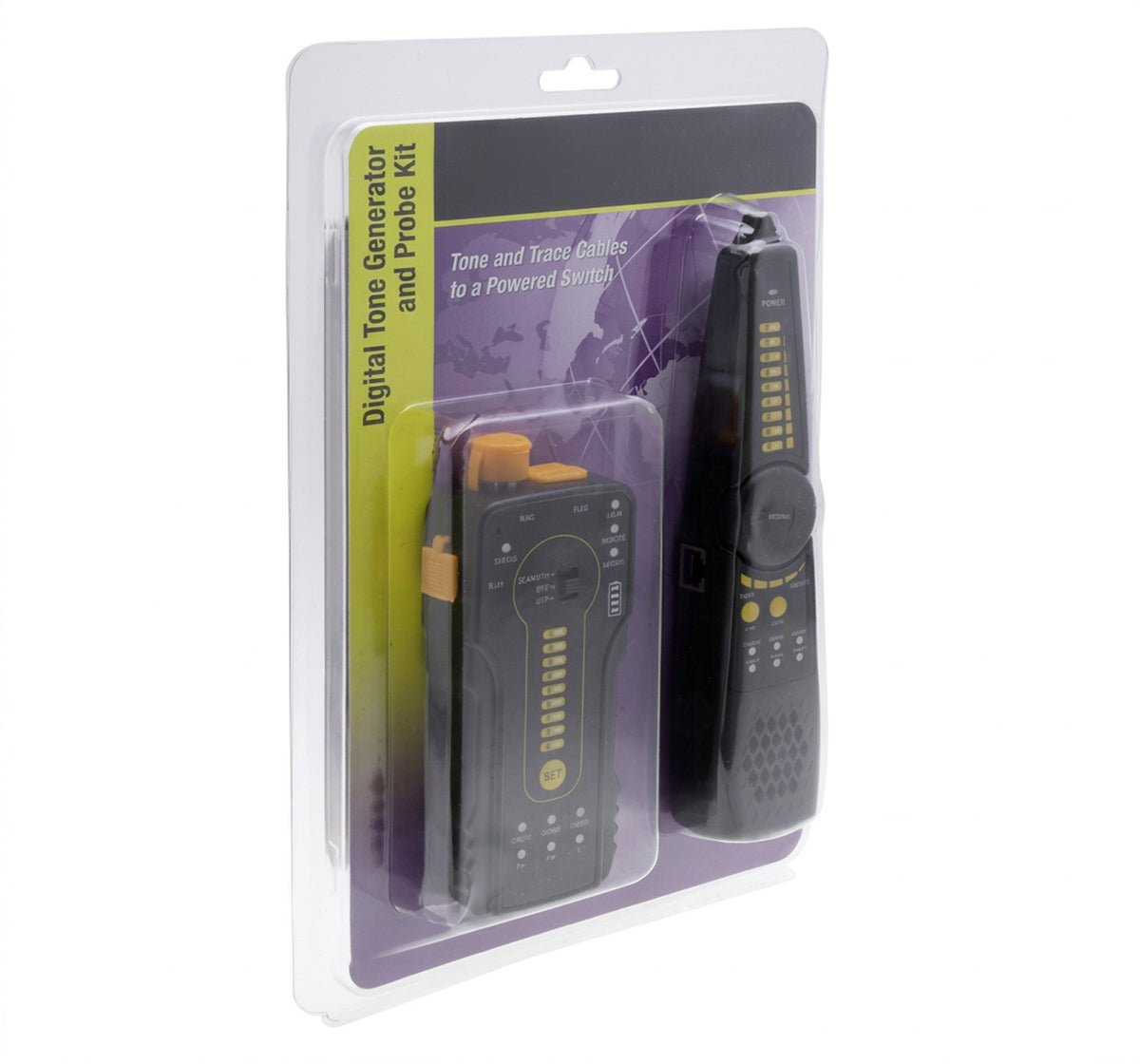

Digital Tone and Probe Kit
The Digital Tone and Probe Kit allows tracing and locating of single or bundles of cables that are connected to unpowered or active networks. Test phone lines, network cables, and coax cables. The built-in test functions can verify proper termination of network cables or test for shorts in the single-ended test mode.
Features
Features
- Trace and locate cables in unpowered or live circuits
- Audible and visual signal strength indicators
- Built-in testing of RJ45 terminations
- Check status of analog phone lines
- Built-in high-intensity flashlight
- LED Flashlight: Short press to turn LED flashlight on or off
- Test RJ45 twisted pair, RJ11 telco wire, and BNC coax cable
- Detect the continuity of the pins on both sides of network cable and short circuits
- Silent Mode: Long press on the Mute key to switch to silent mode
- Audio Output: Supports external audio output and mono earphone jack
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| DIGITAL TONE GENERATOR AND PROBE KIT | |
| TONE GENERATION | DIGITAL SIGNAL (REJECTS NOISE AND FALSE SIGNALS) |
| CABLE TYPES | RJ45 TWISTED PAIR, RJ11 TELEPHONE LINE, BNC CABLE, ETC. |
| UTP CABLE TEST | LED WIRE MAP, SHIELDED CABLE AND SHIELDING CONTINUITY INDICATOR, CHECK CABLE TYPE INDICATOR: STRAIGHT/CROSS/OTHER, 2-PAIR/4-PAIR CONTINUITY TEST, TRIPLE ZONE SHORT TESTING, UTP CABLE SHORT CIRCUIT TEST |
| CONTINUITY TEST OF RJ45 CABLE CONNECTORS | DETECT THE CONTINUITY OF THE PINS ON BOTH SIDES OF NETWORK CABLE AND SHORT CIRCUITS |
| PD (POWERED) TEST | POE SWITCH POWER SUPPLYING STATUS TEST AND CHECK THE PINS USED FOR POWER SUPPLY |
| LED LAMP | SHORT PRESS ON/OFF LED LIGHT |
| SILENT MODE | LONG PRESS “MUTE” BUTTON TO SWITCH SILENT MODE, FIND CABLE THROUGH LED STRENGTH INDICATORS |
| AUDIO OUTPUT | SUPPORTS EXTERNAL AUDIO OUTPUT AND MONO EARPHONE JACK |
| POWER SUPPLY | |
| EXTERNAL POWER SUPPLY | FOUR AA BATTERIES |
| GENERAL | |
| OPERATING VOLTAGE | UP TO 60VDC BETWEEN PINS |
| WORKING TEMPERATURE | -10C — +50C |
| WORKING HUMIDITY | 30%-90% |
| DIMENSION AND WEIGHT | |
| TONE GENERATOR | 152MM X 62MM X 27MM (6.0” X 2.4” X 1.1”) / 0.12KG (4.23 OZ) |
| PROBE | 218MM X 48MM X 32MM (8.6” X 1.9” X 1.3”) / 0.1KG (3.5 OZ) |
What's in the Box
What's in the Box
- Qty 1 – ToneMaster Tone Generator
- Qty 1 – ToneSeeker Tone Tracer Probe
- Qty 1 – No-Fault RJ12 Cable
- Qty 1 – Belt Pouch
- Qty 1 – Instructions
